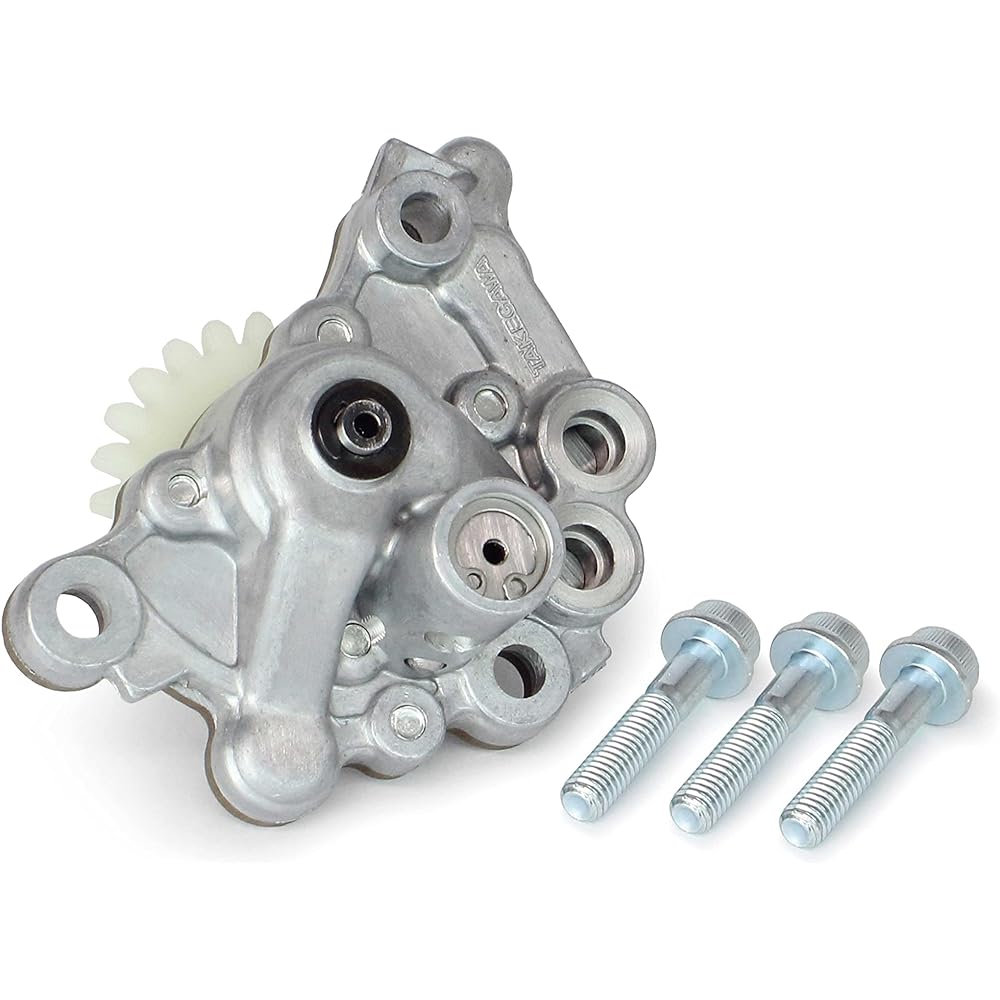

SP TAKEGAWA Super Oil Pump Kit (with relief valve function) Cub 110/Monkey 125/Dax 125 etc. 01-16-0067
SP TAKEGAWA Super Oil Pump Kit (with relief valve function) Cub 110/Monkey 125/Dax 125 etc. 01-16-0067
Regular price
$73.00 USD
Regular price
Sale price
$73.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Target vehicles: GROM (JC92-100000~)/Monkey 125 (JB03-1000001~)/Dax 125 (JB04-1000001~)/Super Cub 110 (JA59-1000001~)/Cross Cub 110 (JA60-1000001~)/Super Cub C125(JA58-1000001~)

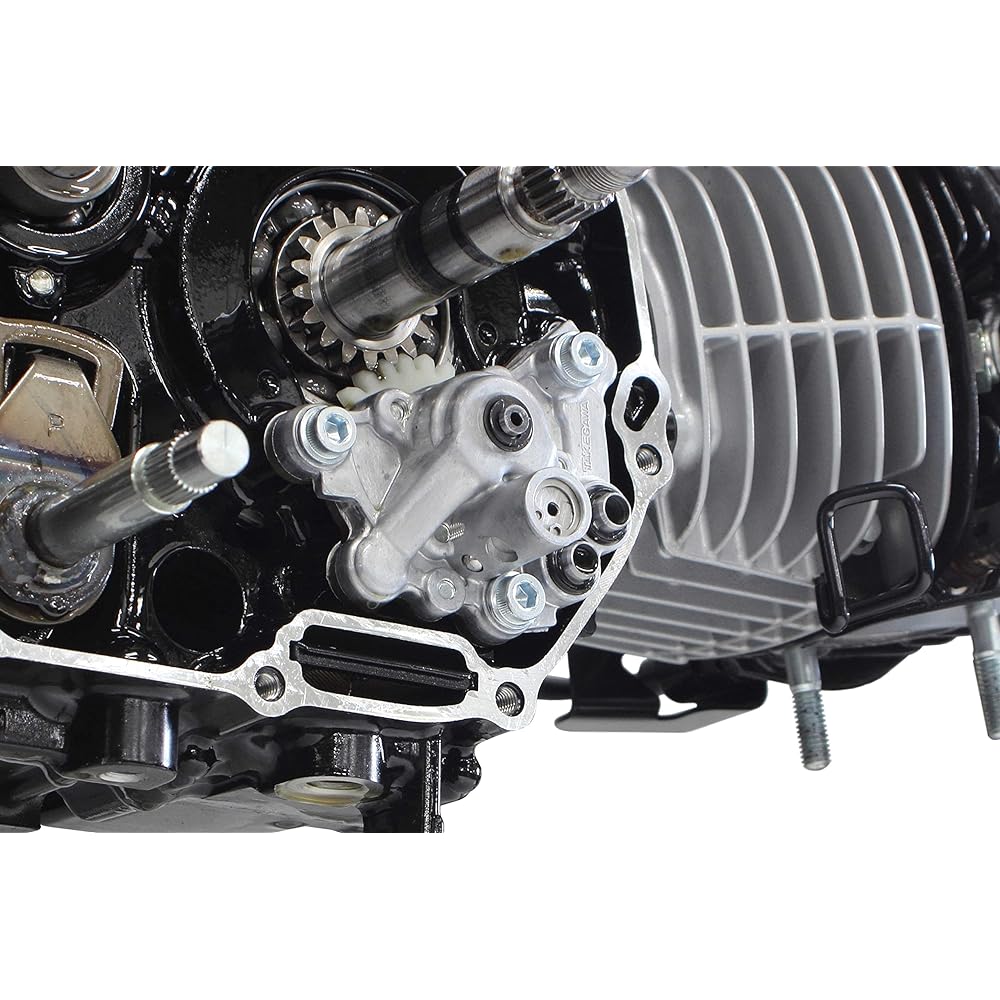

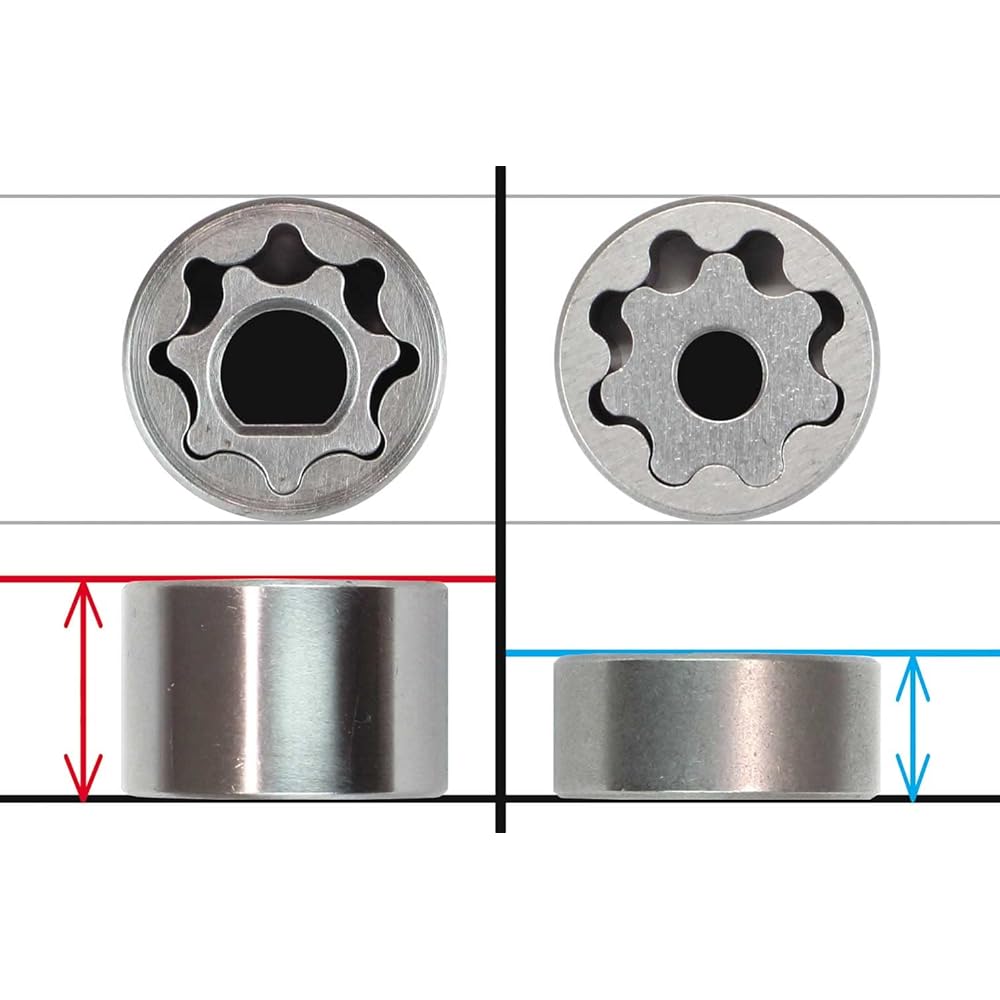

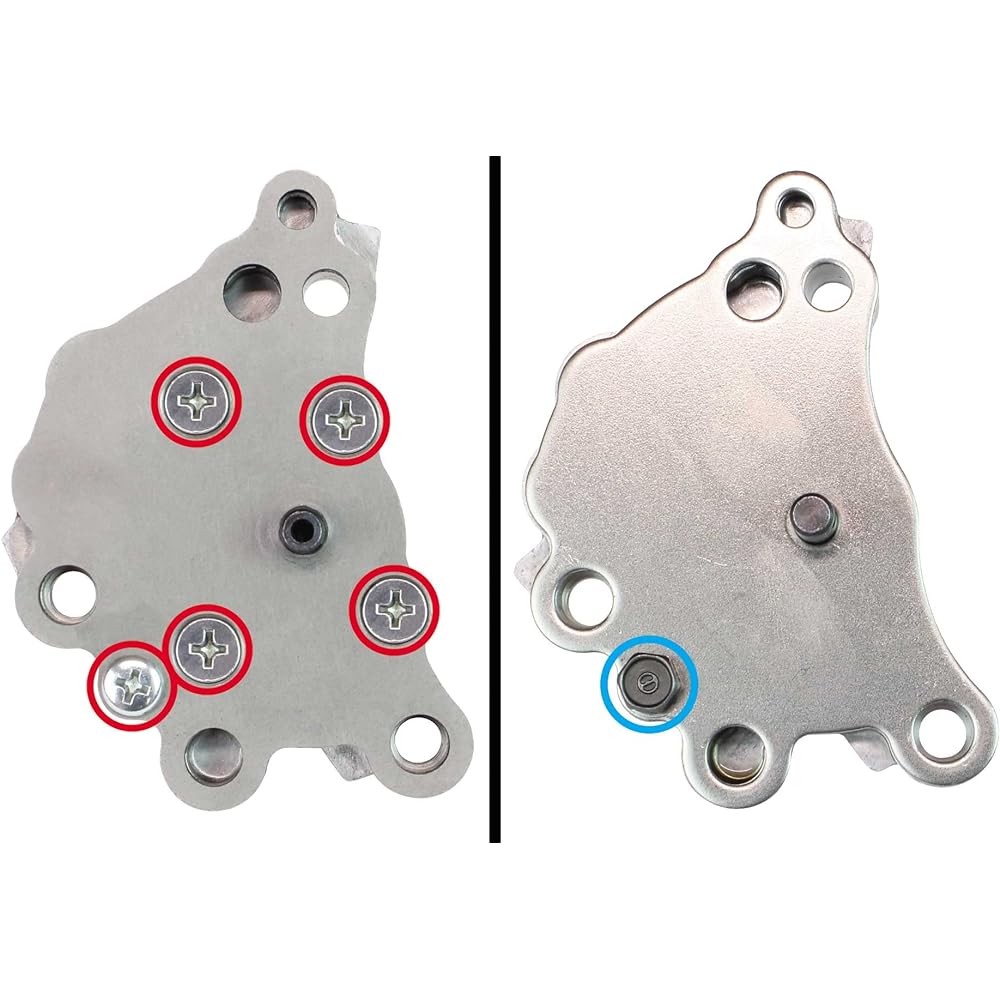

At SP TAKEGAWA, in order to optimize the amount of oil pumped to each part of the engine, the oil pressure, and the oil level of each part, we have increased the oil volume by approximately 50% compared to the stock one. By circulating the appropriate amount of oil, it is possible to reduce the burden on drive parts, improve cooling performance, and ensure an oil film on lubricated parts. Furthermore, by incorporating a relief valve function into the oil pump body, hydraulic control is possible, reducing the burden on the engine due to increased oil pressure and achieving stable oil circulation. Test results when the oil pump discharge volume is too high The test results show that if the discharge volume is increased too much, the volume of oil discharged by the oil pump will be greater than the amount of oil returned to the crankcase. As a result, we have confirmed that there is a risk that the oil level will drop too much at high speeds, causing an air trap condition. This product is an assembly product that includes an oil pump driven gear, so it can be easily installed by simply replacing it with the genuine oil pump. This product is an assembly product that incorporates the oil pump driven gear and fixing pin, so there is no need to divert, disassemble, or assemble the genuine oil pump, and it can be easily installed by simply replacing it with the genuine oil pump. can. In addition, there is no need to reuse genuine parts or check for wear or damage, and you can replace them with new parts. Increase in the thickness of the oil pump plate and the number of bolts that connect the body and plate.If the discharge volume is increased and the oil pressure is increased compared to the original oil pump, oil leakage will occur from the gap between the oil pump body and the oil pump plate at high rotation speeds, and the proper It is not possible to circulate the discharge amount. The SP Takegawa super oil pump has an increased number of bolts connected to ensure stable oil pressure even at high rotation speeds. (Number of bolts: 1 genuine, 5 made by Takegawa) Also, by increasing the plate thickness, rigidity is increased and oil leaks at high rotations are eliminated. Adoption of a relief valve function that enables hydraulic control. The patent-pending SP Takegawa super oil pump increases the discharge amount by approximately 50% compared to the genuine product, and reaches a constant oil pressure in the oil line to ensure oil pressure during unstable idling and to cope with changes in oil pressure as the rotation increases. We have installed a relief valve function that opens the valve only when This suppresses the excessive rise in oil pressure when the rotation increases, which occurs when the engine is cold, and prevents damage to the drive section and seals. Furthermore, when the engine rotates at high speeds, it does not discharge more oil than necessary, reducing power loss and stabilizing the oil level. *R.Crankcase cover gasket is not included. You will need it when replacing it, so please purchase it separately. The shape and genuine part number of the R. crankcase cover gasket differ depending on the vehicle. Please check the vehicle before purchasing.
Manufacturer: Special Parts Takegawa
Brand: Special Parts Takegawa (TAKEGAWA)
Model name: Super Oil Pump Kit
Packing size: 13 x 9.4 x 6.9 cm; 280 g
Item model number: 01-16-0067
Certification: None
Item weight: 280 g
At SP TAKEGAWA, in order to optimize the amount of oil pumped to each part of the engine, the oil pressure, and the oil level of each part, we have increased the oil volume by approximately 50% compared to the stock one. By circulating the appropriate amount of oil, it is possible to reduce the burden on drive parts, improve cooling performance, and ensure an oil film on lubricated parts. Furthermore, by incorporating a relief valve function into the oil pump body, hydraulic control is possible, reducing the burden on the engine due to increased oil pressure and achieving stable oil circulation. Test results when the oil pump discharge volume is too high The test results show that if the discharge volume is increased too much, the volume of oil discharged by the oil pump will be greater than the amount of oil returned to the crankcase. As a result, we have confirmed that there is a risk that the oil level will drop too much at high speeds, causing an air trap condition. This product is an assembly product that includes an oil pump driven gear, so it can be easily installed by simply replacing it with the genuine oil pump. This product is an assembly product that incorporates the oil pump driven gear and fixing pin, so there is no need to divert, disassemble, or assemble the genuine oil pump, and it can be easily installed by simply replacing it with the genuine oil pump. can. In addition, there is no need to reuse genuine parts or check for wear or damage, and you can replace them with new parts. Increase in the thickness of the oil pump plate and the number of bolts that connect the body and plate.If the discharge volume is increased and the oil pressure is increased compared to the original oil pump, oil leakage will occur from the gap between the oil pump body and the oil pump plate at high rotation speeds, and the proper It is not possible to circulate the discharge amount. The SP Takegawa super oil pump has an increased number of bolts connected to ensure stable oil pressure even at high rotation speeds. (Number of bolts: 1 genuine, 5 made by Takegawa) Also, by increasing the plate thickness, rigidity is increased and oil leaks at high rotations are eliminated. Adoption of a relief valve function that enables hydraulic control. The patent-pending SP Takegawa super oil pump increases the discharge amount by approximately 50% compared to the genuine product, and reaches a constant oil pressure in the oil line to ensure oil pressure during unstable idling and to cope with changes in oil pressure as the rotation increases. We have installed a relief valve function that opens the valve only when This suppresses the excessive rise in oil pressure when the rotation increases, which occurs when the engine is cold, and prevents damage to the drive section and seals. Furthermore, when the engine rotates at high speeds, it does not discharge more oil than necessary, reducing power loss and stabilizing the oil level. *R.Crankcase cover gasket is not included. You will need it when replacing it, so please purchase it separately. The shape and genuine part number of the R. crankcase cover gasket differ depending on the vehicle. Please check the vehicle before purchasing.
Manufacturer: Special Parts Takegawa
Brand: Special Parts Takegawa (TAKEGAWA)
Model name: Super Oil Pump Kit
Packing size: 13 x 9.4 x 6.9 cm; 280 g
Item model number: 01-16-0067
Certification: None
Item weight: 280 g
