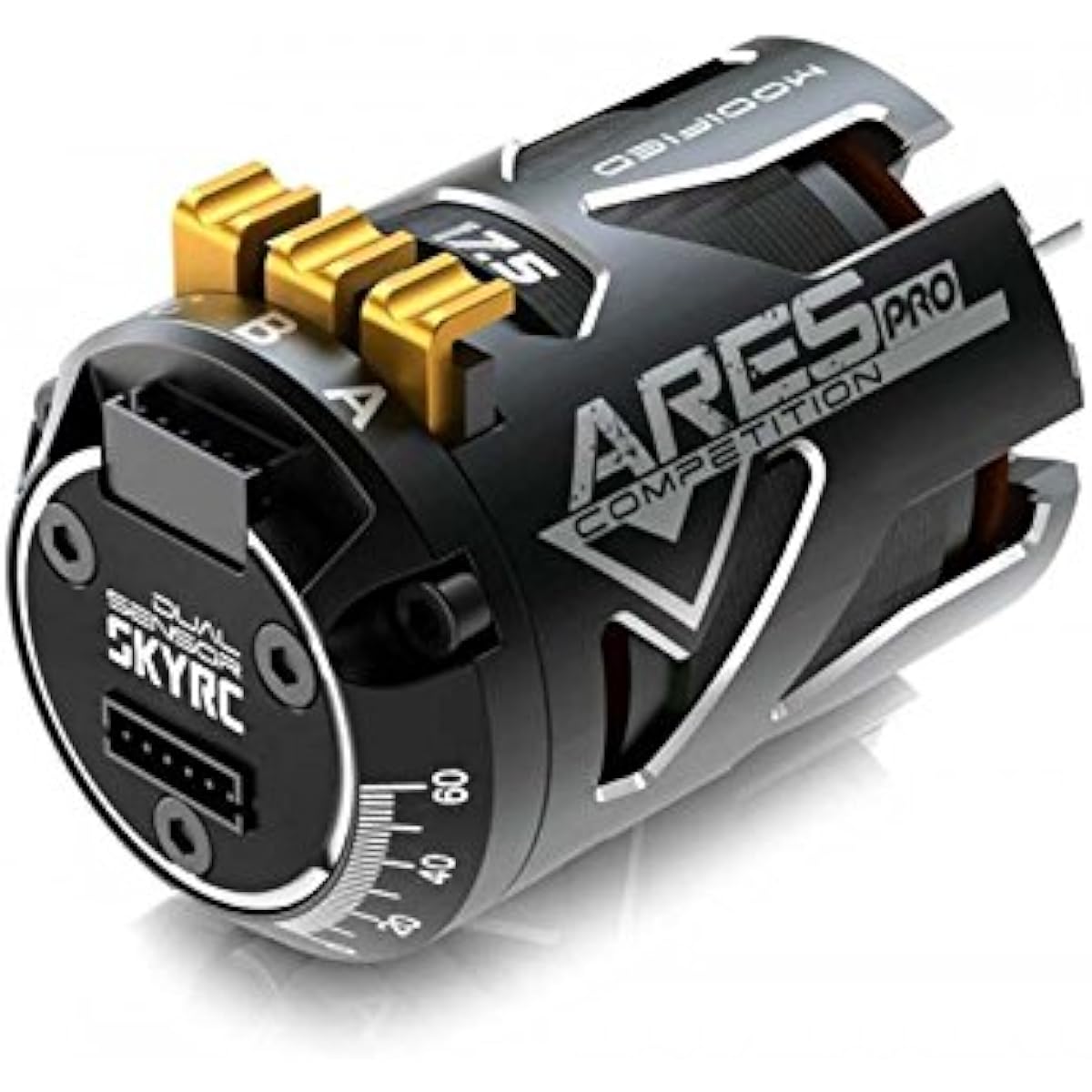

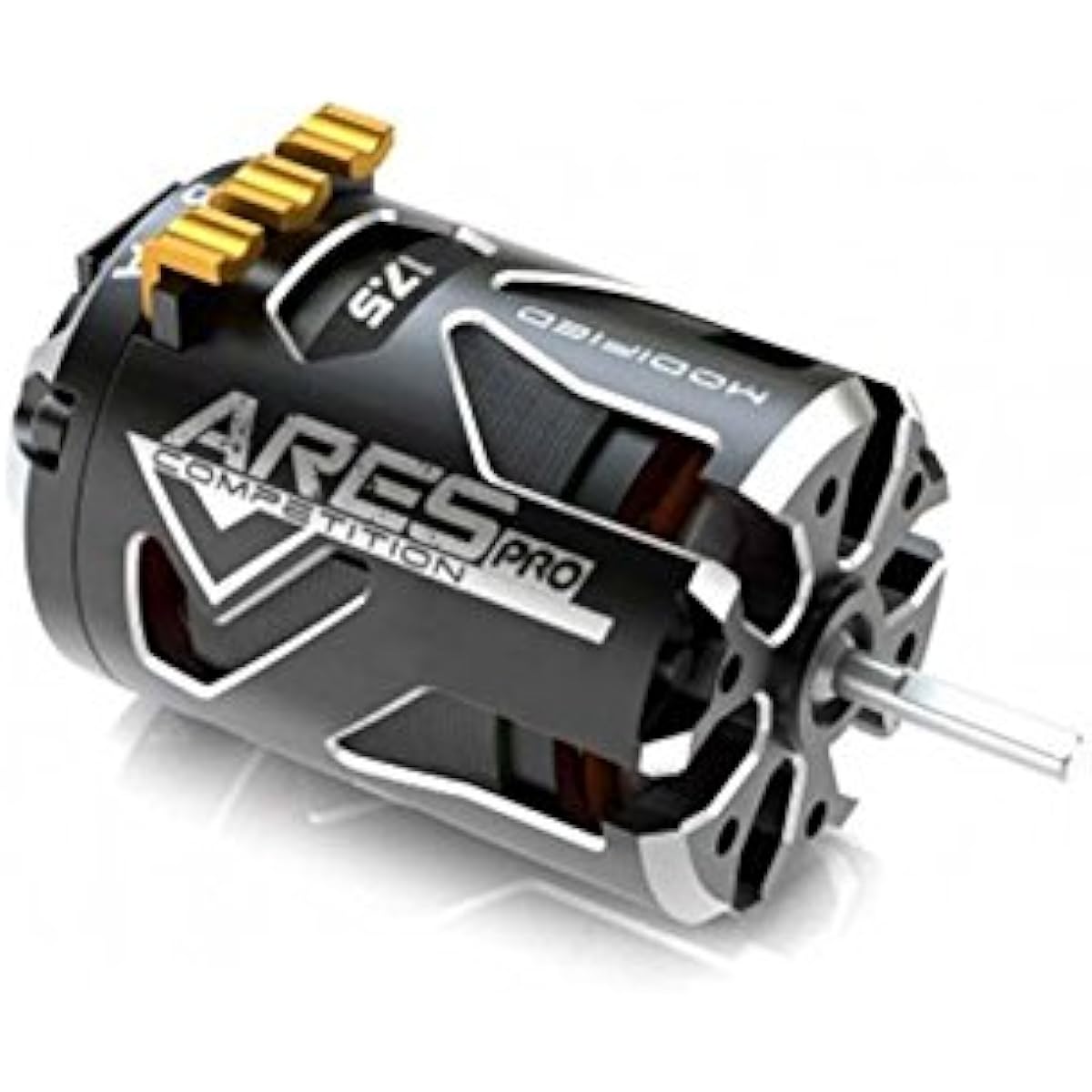

SKYRC Ares Pro V2 Competition 540 Brushless Sensored Modified Motor 8.5T/4100KV

Note: Images are generic. KV/Turns are shown in product title. V2 design includes all-new can design with silicone insulator between end bell and stator to dissipate heat. CNC machined billet T6 aluminum heatsink can features removable/replaceable rotor and powerful neodymium magnets. High purity copper windings maximize conductivity and large solder tabs for high power connections. Dual sensor ports for maximum mounting versatility, with integrated fan in front end bell for perfect cooling and timing. Compatible with sensored/sensorless ESCs and IFMAR/ROAR compliant. PN: SK-400003-51 Turns: 8.5 Watts: 340 Rotor: 12.5x5 Rotor Pole: 2 KV (RPM/Volts) 4100 Lipo Cell: 1-2S Max Current: 80A Unload Current: 3.2A Internal Resistance (Ohms): 0.0138 Shaft Diameter: 3.175mm Brand New Weight: 178g. Racing Type: Modified.

The V2 design includes an all-new can design that includes silicone insulators between the end bells and stator to dissipate heat. The CNC machined billet T6 aluminum heatsink can features a removable/replaceable rotor and powerful neodymium magnets.


Manufacturer: SkyRC
Part Number: SK-400003-51
Item Weight: 178 g
Item Weight: 178 g
Material: Aluminum, Copper, Silicon.
Voltage: 12 Volts
Horsepower: 340 Watts
