Auto Parts Tokyo

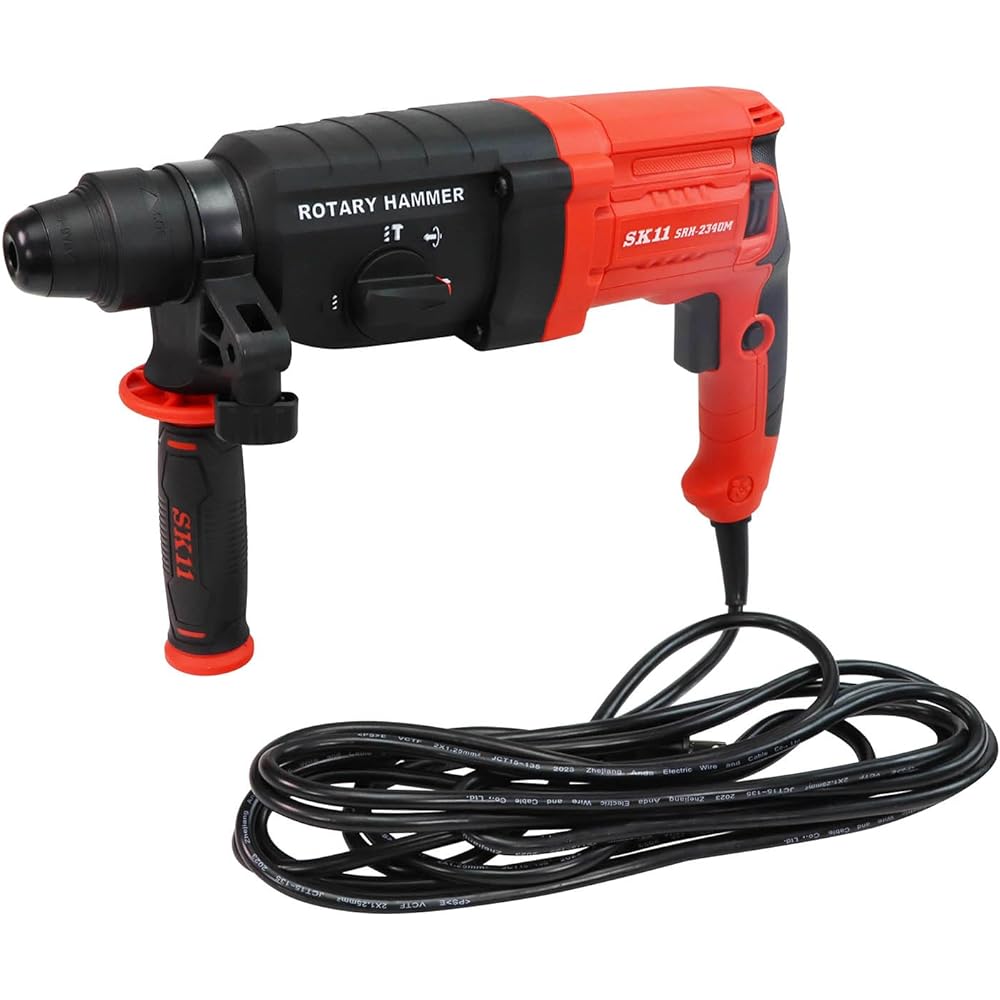

SK11 Rotary Hammer Drill 23mm SRH-2340M
SK11 Rotary Hammer Drill 23mm SRH-2340M
Regular price
$148.00 USD
Regular price
Sale price
$148.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Power supply: Single-phase AC 100V 50/60Hz, Power consumption: 650W, Current: 7.4A No-load rotation speed: 0 to 1000 min-1, Number of blows: 0 to 5000 min-1, Chuck: SDS Plus Body dimensions: Approx. 370 Width x 210 height x 100 depth mm, body mass: approx. 3.0 kg, power cord length: approx. 5 m Drilling capacity: concrete 23 mm, core bit 55 mm, diamond core bit 65 mm, ironwork 13 mm, woodwork 30 mm Accessories: SDS plus concrete bit φ6/8 1 each /10mm, 1 point chisel for chiseling work, 1 flat chisel, side handle, dustproof cap
Can drill holes in concrete quickly and easily, and can also perform light chiseling work [Applications] Concrete drilling work and light chiseling work [Features] - Can switch between 3 modes: rotation/impact + rotation/impact, impact mode Can also be used for light chiseling work, with a variable lock function that allows you to change the direction of the chisel 360 degrees.Equipped with an SDS plus chuck, equipped with a one-touch bit, and the bit can be removed by simply pulling the sleeve.Large sides that are easy to grip and durable. Comes with a handle and drilling depth gauge ・Speed can be adjusted by trigger operation, switch lock function convenient for continuous operation ・Adopts an SDS plus shaft, so a commercially available SDS plus shaft compatible drill chuck can be used for drilling in metal and wood. Separately required [Precautions] *Before using, please read the instruction manual carefully and fully understand the operation method and safety precautions before starting work. *Drilling work in metal and wood requires a drill chuck compatible with SDS plus axis. *Also, please use a woodworking drilling bit that does not have a screw on the tip. *If you use a wood drilling bit with a screw, the body will swing around and it is very dangerous. *Please check the instruction manual for details. *The specifications of this product regarding drilling capacity are the maximum capacity values. *When drilling a large quantity of holes in a row, use a product with a higher force than 60% of the drilling capacity of this product. please. *Also, if you press the tool against the material with an excessive load that significantly reduces rotation, not only will cutting efficiency decrease, but the main body may burn out. *When working, please take precautions to prevent dust from scattering around the main body as much as possible by using a dust collector and checking the wind direction. *If a lot of chips are scattered around the outer periphery of the main unit, fine dust may enter the motor and switch from the motor cooling air intake, causing poor contact, abnormal noise, and burnout. *Also, after work, clean the motor cooling air intake by blowing compressed air into it. *If the motor (at the rear of the main unit) becomes hot due to overload or continuous load work for a long time, stop the load work and run the motor for 1 to 2 minutes to encourage the motor to cool down, then wait until the motor cools down. Wait until then and then resume work. *Always clean the inside of the SDS chuck to keep it clean. *Especially when drilling with the tip of the tool facing directly upwards, attach the included dust-proof cup to the base of the bit to prevent chips from entering the SDS Plus chuck. *When installing the SDS Plus bit, please apply a small amount of commercially available molybdenum grease to the base of the shaft in order to increase the impact and rotation efficiency of the bit and prevent wear and tear of the bit due to high temperatures. Caution (Disclaimer) > Please read ●Before using the product, be sure to read the instruction manual carefully and fully understand the operating instructions and safety precautions before starting work.●For metal and wood A drill chuck compatible with the SDS plus axis is required for drilling holes in the wood. Also, when drilling holes in wood, please use a wood drilling bit that does not have a threaded tip.
Brand: SK11
Product model number: SRH-2340M
Product size: 37 x 10 x 21 cm; 5.62 kg
Power supply: Cord type
Voltage: 100 volts
Wattage: 650 W
Laser class: Rotation

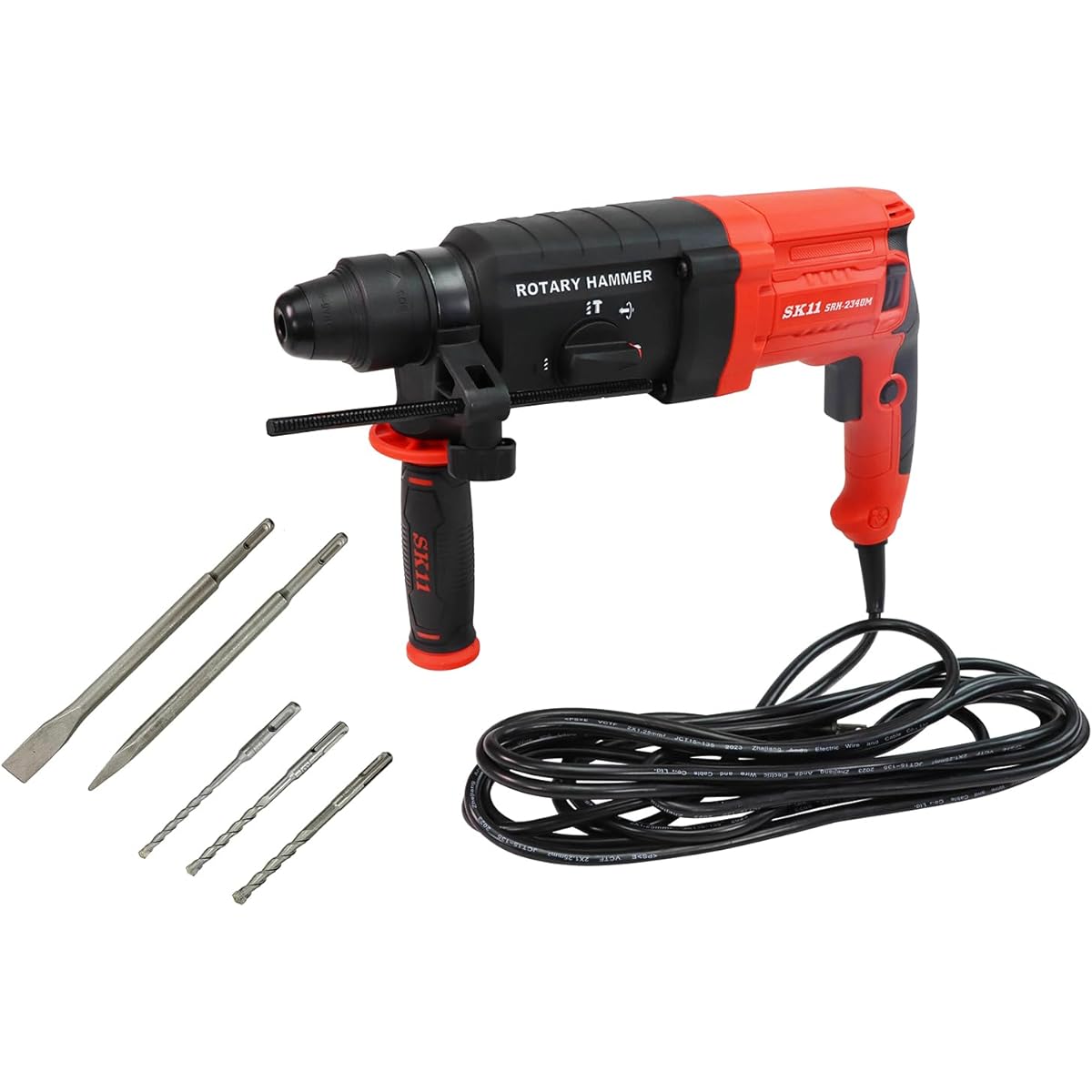

Accessories: SDS plus concrete bit φ6/8/10mm each 1 piece, point chisel for chipping work 1 piece, flat chisel 1 piece, side handle, dust-proof cap
Maximum rotation speed (revolutions/min): 1000 revolutions per minute
Product weight: 5.62 Kilograms
Can drill holes in concrete quickly and easily, and can also perform light chiseling work [Applications] Concrete drilling work and light chiseling work [Features] - Can switch between 3 modes: rotation/impact + rotation/impact, impact mode Can also be used for light chiseling work, with a variable lock function that allows you to change the direction of the chisel 360 degrees.Equipped with an SDS plus chuck, equipped with a one-touch bit, and the bit can be removed by simply pulling the sleeve.Large sides that are easy to grip and durable. Comes with a handle and drilling depth gauge ・Speed can be adjusted by trigger operation, switch lock function convenient for continuous operation ・Adopts an SDS plus shaft, so a commercially available SDS plus shaft compatible drill chuck can be used for drilling in metal and wood. Separately required [Precautions] *Before using, please read the instruction manual carefully and fully understand the operation method and safety precautions before starting work. *Drilling work in metal and wood requires a drill chuck compatible with SDS plus axis. *Also, please use a woodworking drilling bit that does not have a screw on the tip. *If you use a wood drilling bit with a screw, the body will swing around and it is very dangerous. *Please check the instruction manual for details. *The specifications of this product regarding drilling capacity are the maximum capacity values. *When drilling a large quantity of holes in a row, use a product with a higher force than 60% of the drilling capacity of this product. please. *Also, if you press the tool against the material with an excessive load that significantly reduces rotation, not only will cutting efficiency decrease, but the main body may burn out. *When working, please take precautions to prevent dust from scattering around the main body as much as possible by using a dust collector and checking the wind direction. *If a lot of chips are scattered around the outer periphery of the main unit, fine dust may enter the motor and switch from the motor cooling air intake, causing poor contact, abnormal noise, and burnout. *Also, after work, clean the motor cooling air intake by blowing compressed air into it. *If the motor (at the rear of the main unit) becomes hot due to overload or continuous load work for a long time, stop the load work and run the motor for 1 to 2 minutes to encourage the motor to cool down, then wait until the motor cools down. Wait until then and then resume work. *Always clean the inside of the SDS chuck to keep it clean. *Especially when drilling with the tip of the tool facing directly upwards, attach the included dust-proof cup to the base of the bit to prevent chips from entering the SDS Plus chuck. *When installing the SDS Plus bit, please apply a small amount of commercially available molybdenum grease to the base of the shaft in order to increase the impact and rotation efficiency of the bit and prevent wear and tear of the bit due to high temperatures. Caution (Disclaimer) > Please read ●Before using the product, be sure to read the instruction manual carefully and fully understand the operating instructions and safety precautions before starting work.●For metal and wood A drill chuck compatible with the SDS plus axis is required for drilling holes in the wood. Also, when drilling holes in wood, please use a wood drilling bit that does not have a threaded tip.
Brand: SK11
Product model number: SRH-2340M
Product size: 37 x 10 x 21 cm; 5.62 kg
Power supply: Cord type
Voltage: 100 volts
Wattage: 650 W
Laser class: Rotation
Accessories: SDS plus concrete bit φ6/8/10mm each 1 piece, point chisel for chipping work 1 piece, flat chisel 1 piece, side handle, dust-proof cap
Maximum rotation speed (revolutions/min): 1000 revolutions per minute
Product weight: 5.62 Kilograms
