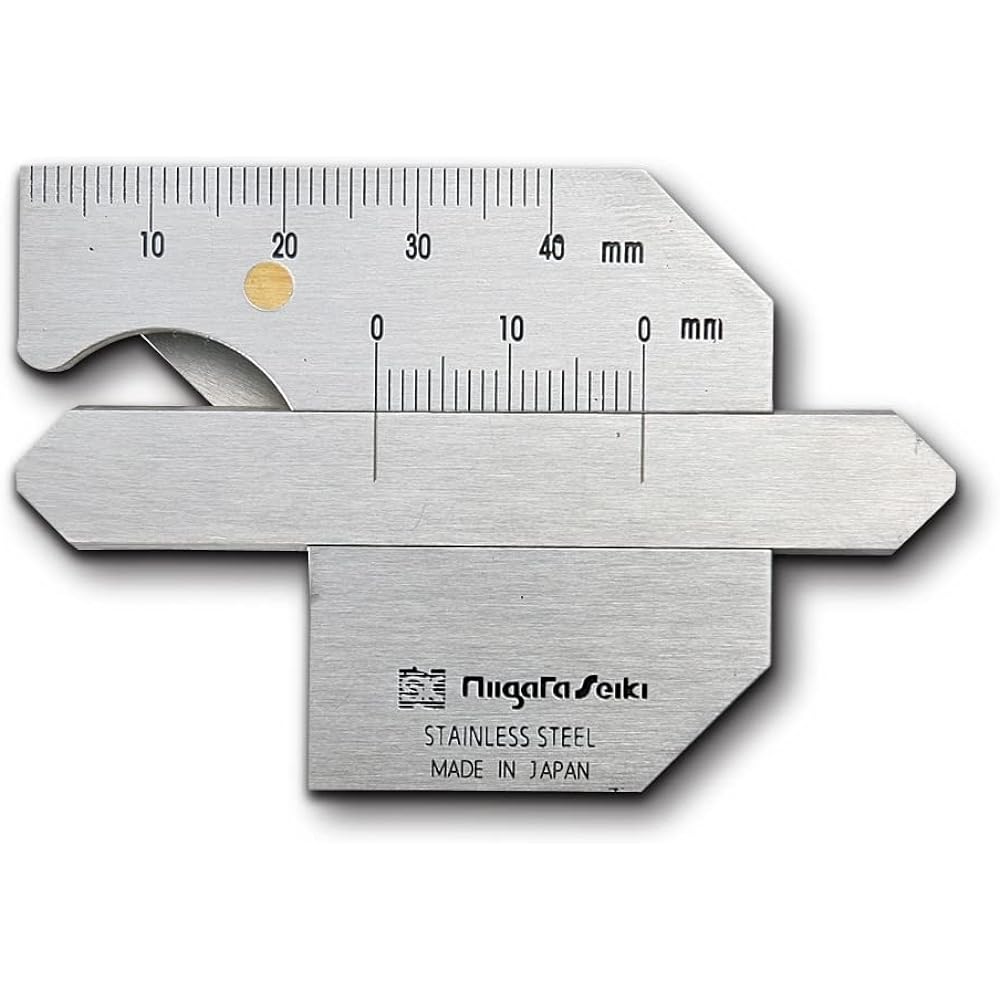

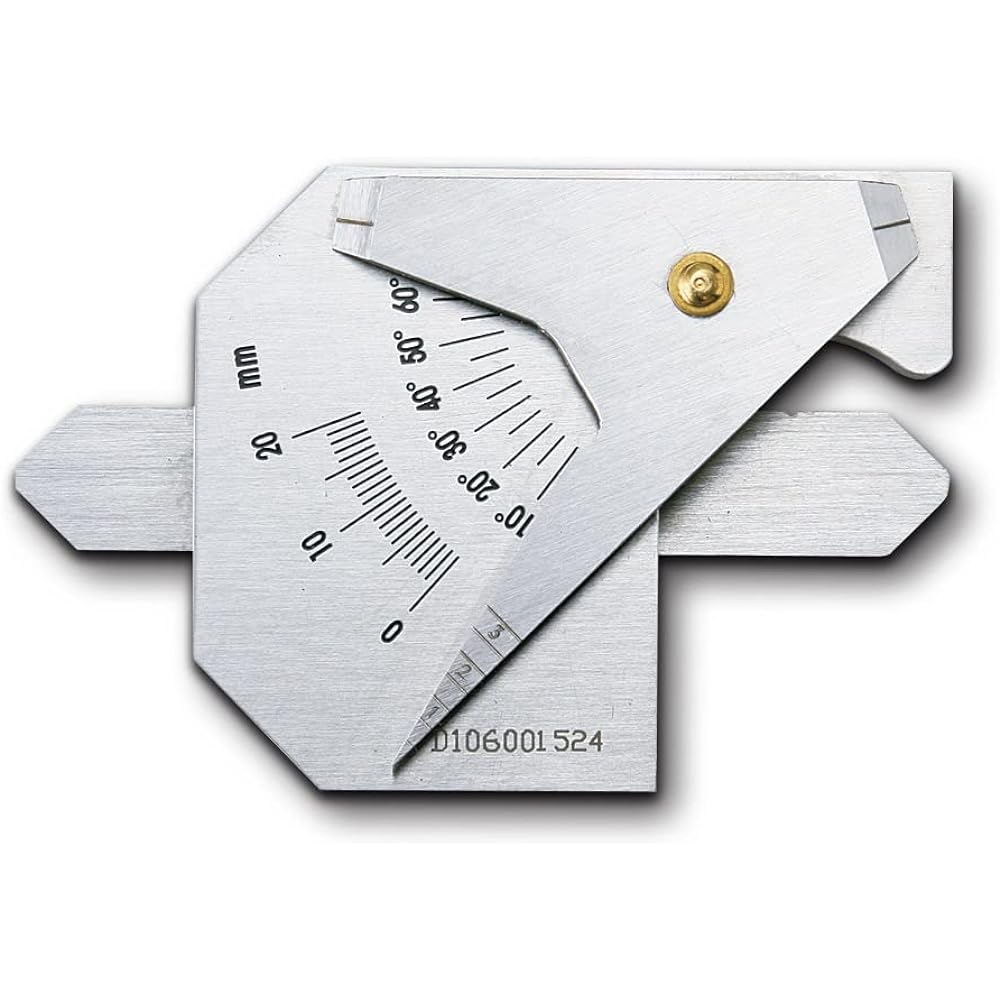

Niigata Seiki SK Made in Japan Welding Gauge M WG-1

For measuring welding excess, fillet size, angle, etc. Length dimension measurement accuracy (mm): ±0.4 / Angle measuring device difference (°): ±0.7 / Gap measuring device difference (mm): ±0.4 / Throat thickness measuring device difference (mm): ±0.4 Main body linear scale (mm): 40 / Extra height (mm): 10 / Fillet leg length (mm): 20 / Fillet throat thickness (mm) : 10 / Root spacing (mm): 0.5-3 / Round bar diameter (mm): 10 / Bevel angle (°): 0-60 (minimum reading 5) Body dimensions (mm): W70.5× H46.8×D8 / Body mass (g): 74 Country of origin: Japan

Ideal for measuring welding excess, fillet size, angle, etc. to speed up welding work and streamline quality control. Robust, lightweight, and convenient to carry (comes with a vinyl case). Comes with a certificate of acceptance.


Brand: Niigata Seiki
Product model number: WG-1
Product size: 4.68 x 7.05 x 0.8 cm; 74 g
Nameplate name: ‎WG-1 single item
Material: ‎Stainless steel
Power supply: ‎air_powered
Accessories: ‎Vinyl case, certificate of acceptance, instruction manual
Battery included: ‎No
About warranty: ‎None
Product weight: ‎74 g
