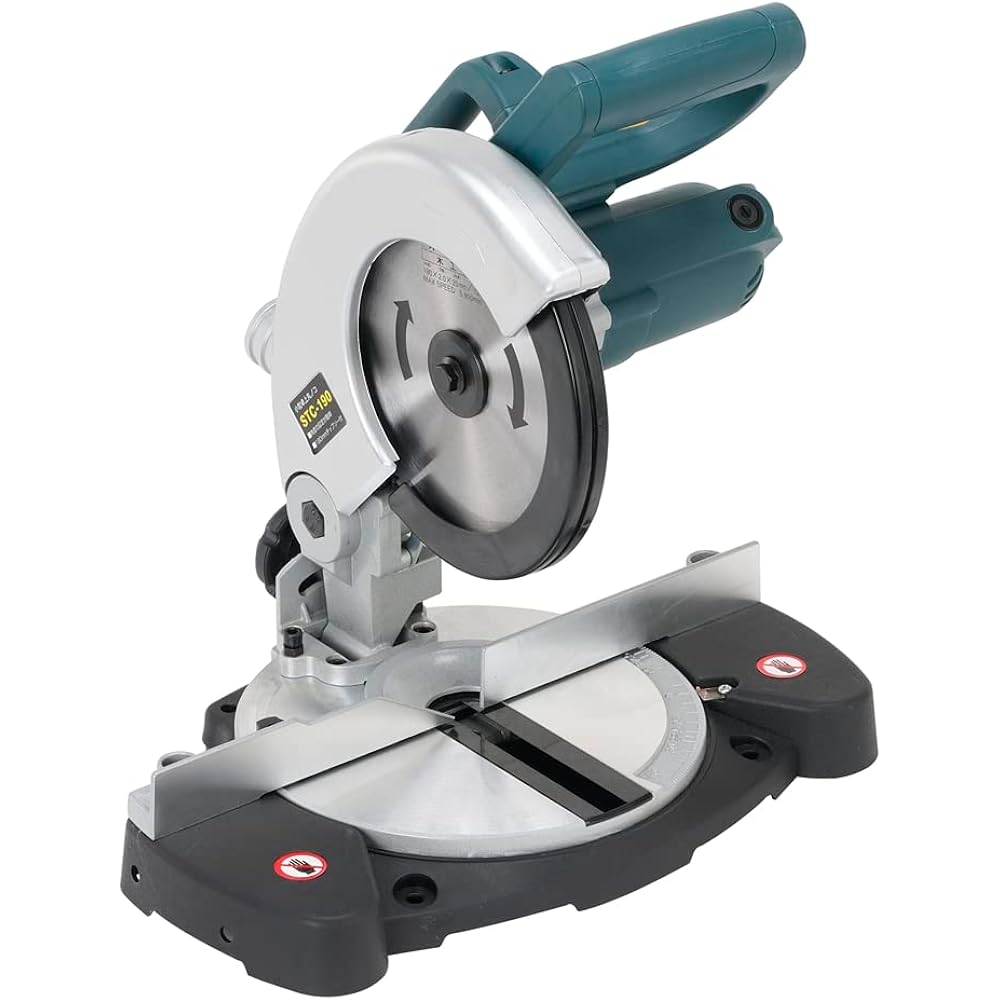

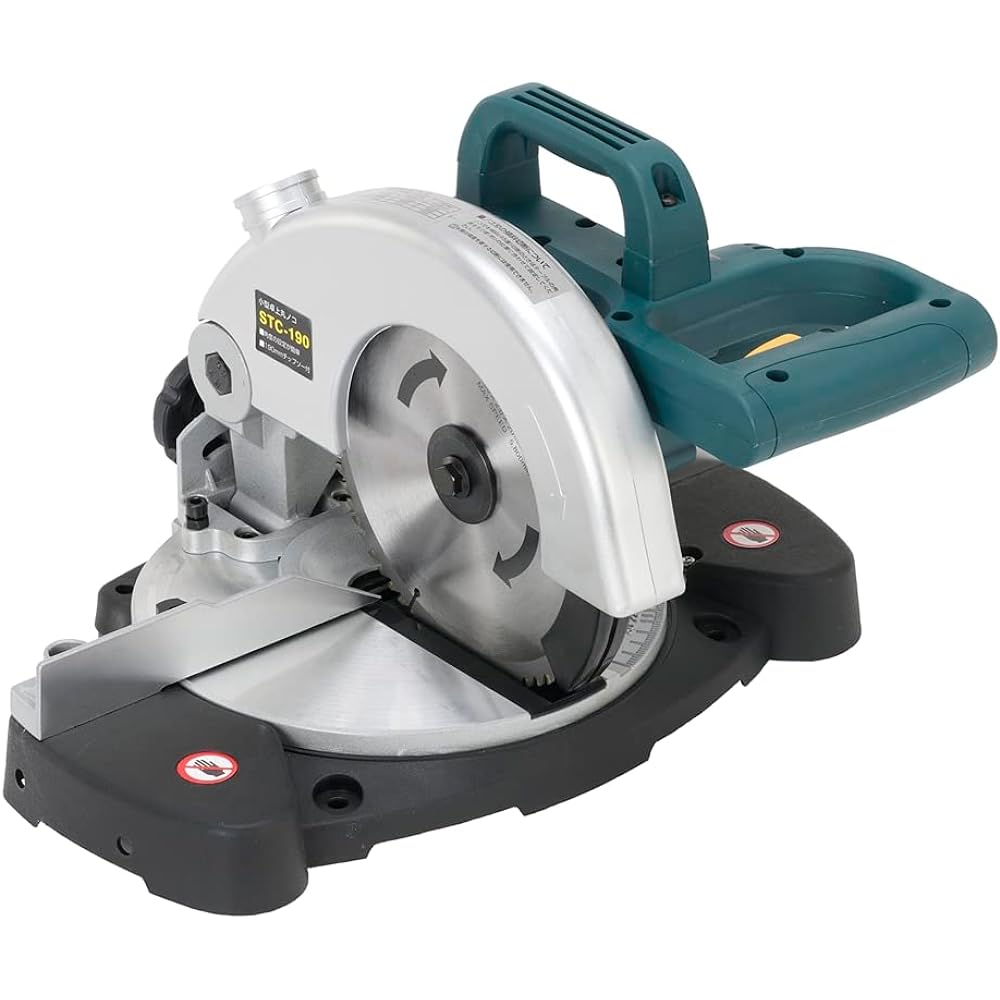

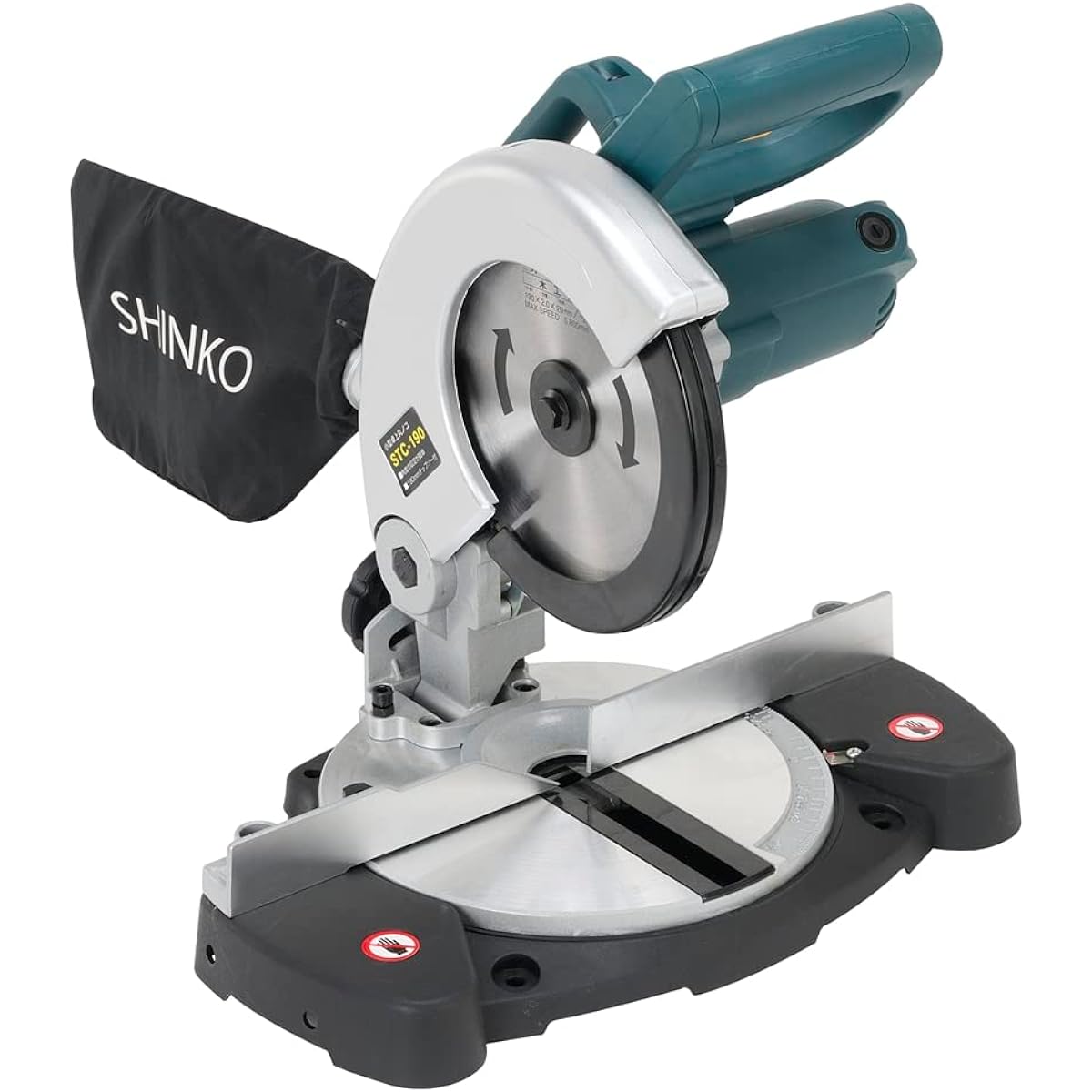

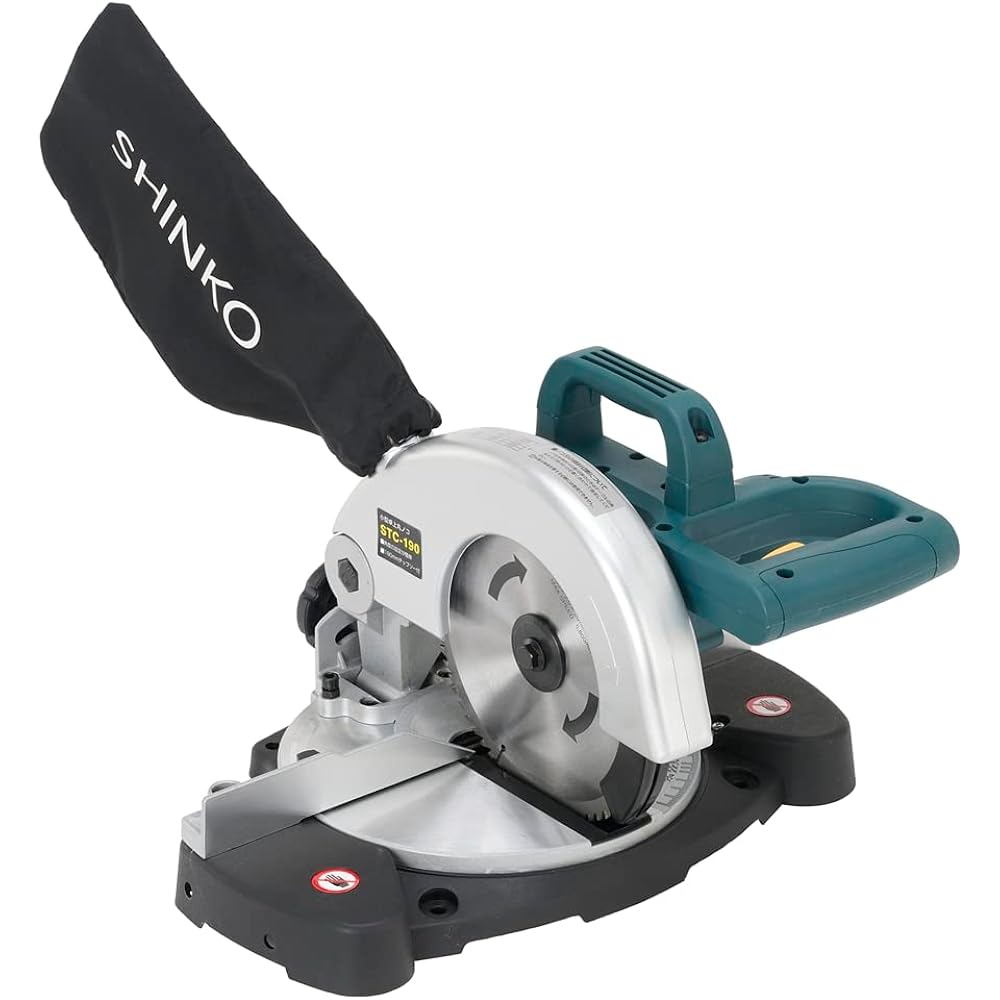

Shinko Seisakusho Tabletop Circular Saw STC-190

Power supply: 100V, Frequency: 50/60Hz, Current 7.5A, Power consumption: 700W Rotation speed: 4500min-1 Attached saw blade: Outer diameter 190mm, Inner diameter 20mm, Number of blades 72P Mass: 5kg Power cord: 1.8m Usable saw blade :185~190mm Turntable rotation: 45 degrees~0 degrees~45 degrees Saw blade inclination: 45 degrees Maximum cutting capacity (height x width mm) / Turn base rotation 0 degrees (right angle): Saw blade inclination angle 0 degrees (right angle) 45 x 85 / Saw blade inclination angle 45 degrees 48 x 88. Turn base rotation 45 degrees to the left: Saw blade inclination angle 0 degrees (right angle) 34 x 65 / Saw blade inclination angle 45 degrees 19 x 40. Turn base rotation 45 degrees to the right: saw blade inclination angle 0 degrees (right angle) 30 x 65, saw blade inclination angle 45 degrees 19 x 80. With brake. Increase the number of displayed items

●For cutting baseboards, picture frames, surrounding edges, and interior materials. ●Lightweight and compact design, ideal for light field work. ●The angle of the table and saw blade can be easily set with one touch. ●With brake ●Package size/Length: 238mm Width: 465mm Height: 290mm. ●Package weight: 6000g. ●Included saw blade: outer diameter 190mm, inner diameter 20mm, number of blades 72P. ●Usable saw blade: 185-190mm. ●Saw blade inclination: 45 degrees ●Maximum cutting capacity (height x width mm)/Turn base rotation 0 degrees (right angle): Saw blade inclination angle 0 degrees (right angle) 45 x 85 / Saw blade inclination angle 45 degrees 48 x 88 . ●Turn base rotation 45 degrees to the left: saw blade inclination angle 0 degrees (right angle) 34 x 65, saw blade inclination angle 45 degrees 19 x 40. ●Turn base rotation 45 degrees to the right: saw blade inclination angle 0 degrees (right angle) 30 x 65, saw blade inclination angle 45 degrees 19 x 80. ●Turntable rotation: 45 degrees to 0 degrees to 45 degrees. ●Power supply: 100V, frequency: 50/60Hz, current 7.5A, power consumption: 700W. ●Rotation speed: 4500min-1. ●Mass: 5kg. ●Power cord: 1.8m. ●Standard accessories: Chip saw (installed on the main unit), dust bag x 1, spanner x 1, hex wrench x 2. ●For cutting baseboards, picture frames, surrounding edges, and interior materials ●Lightweight and compact design, ideal for light site work ●The angle of the table and saw blade can be easily set with one touch


Brand: Shinko Seisakusho
Product model number: STC-190
Product size: 23.8 x 46.5 x 29 cm; 5 kg
Color: Gray|Black
Power supply: Power cord type
Voltage: 100 Volts
Wattage: 700 W
Laser class: Brake
Accessories: Tipped saw (installed on the main body), dust bag x 1, spanner x 1, hex wrench ×2
Warranty: ‎1 year
Product weight: ‎5 Kilograms
