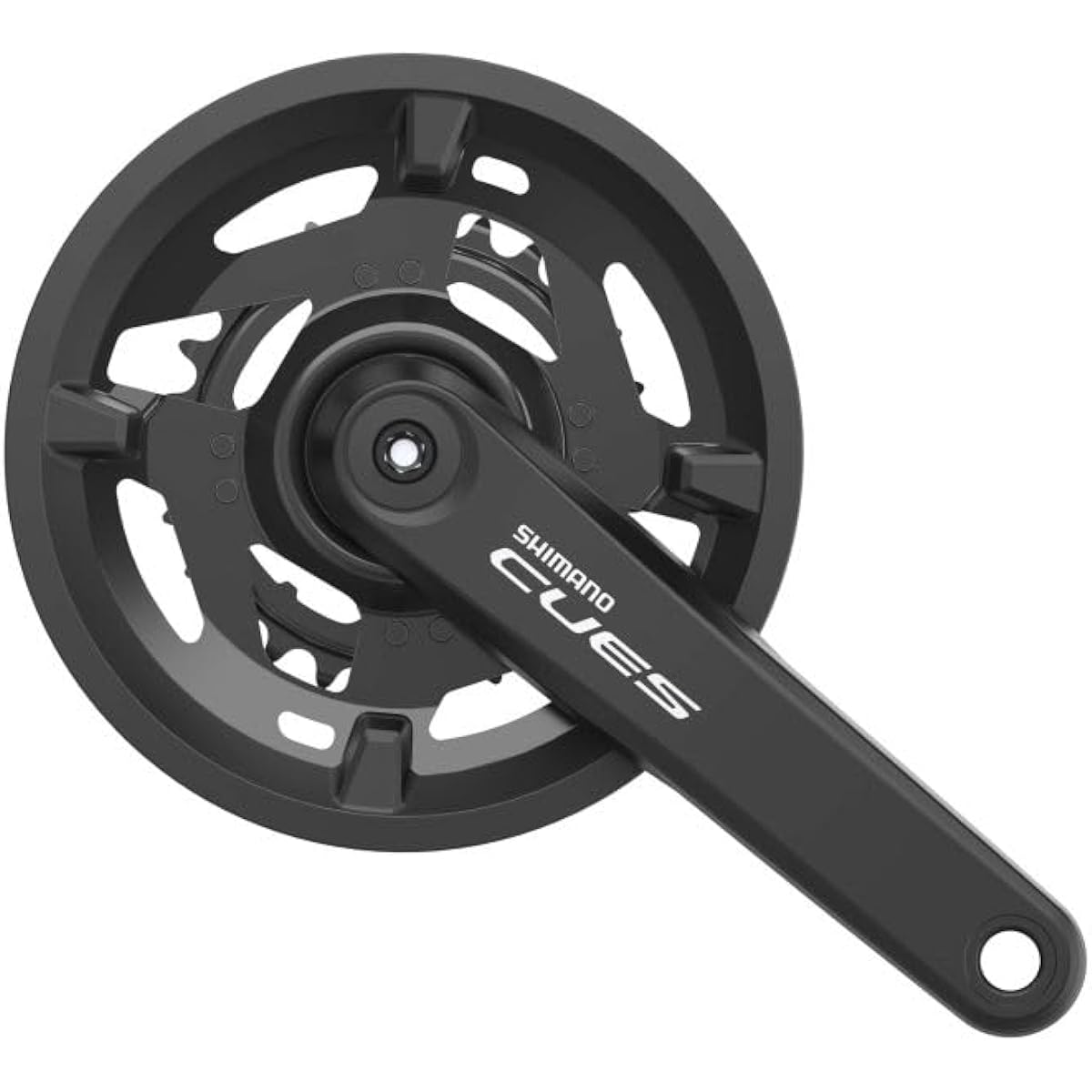

SHIMANO CUES Front Chainwheel FC-U4010-2 with Chain Guard Crank Length/170mm 40/26T 9/10/11S EFCU40102EX06C

Model number: FC-U4010-2 Series: CUES U4000 Series Color: Series color Rear speed: 11/10/9(36-22T, 40-26T), 10/9(46-30T)/Compatible chain: LINKGLIDE, HG 11 speed Chain line (mm): 48.8・O.L.D.: Thru (mm): 142・O.L.D.: Internal/External type: 135・P.C.D. (mm): Riveted・Spider/Gear arm: 4・Chain ring combination: 36-22T, 40-26T, 46-30T・Q factor (mm): 180・Crank arm length (mm): 170, 175・Compatible bottom bracket type: Outside・Recommended bottom bracket/screw-in (normal): BB-MT501・Chain case compatible: X(46-30T) Specifications: 2-piece crankset, including crank mounting screws・Number of teeth: 40/26T

It has high performance and smooth pedaling performance on various terrains. A two-piece crankset that reduces weight, increases rigidity, and improves pedaling power transmission. Chain case is compatible with 46-30T only. Only compatible with LINKGLIDE shifting system. 2-piece crank set. The crank arm and bottom bracket are integrated, making it lightweight and highly rigid. Wide range of bearing positions, improved rigidity and highly efficient transmission of pedaling force. High precision bearings. Improved maintainability and easy installation.


Product model number: ‎EFCU40102EX06C
Color: ‎Series color
Size: ‎170
Material: ‎Aluminum
Packing size: ‎25 x 25 x 20 cm; 1 kg
