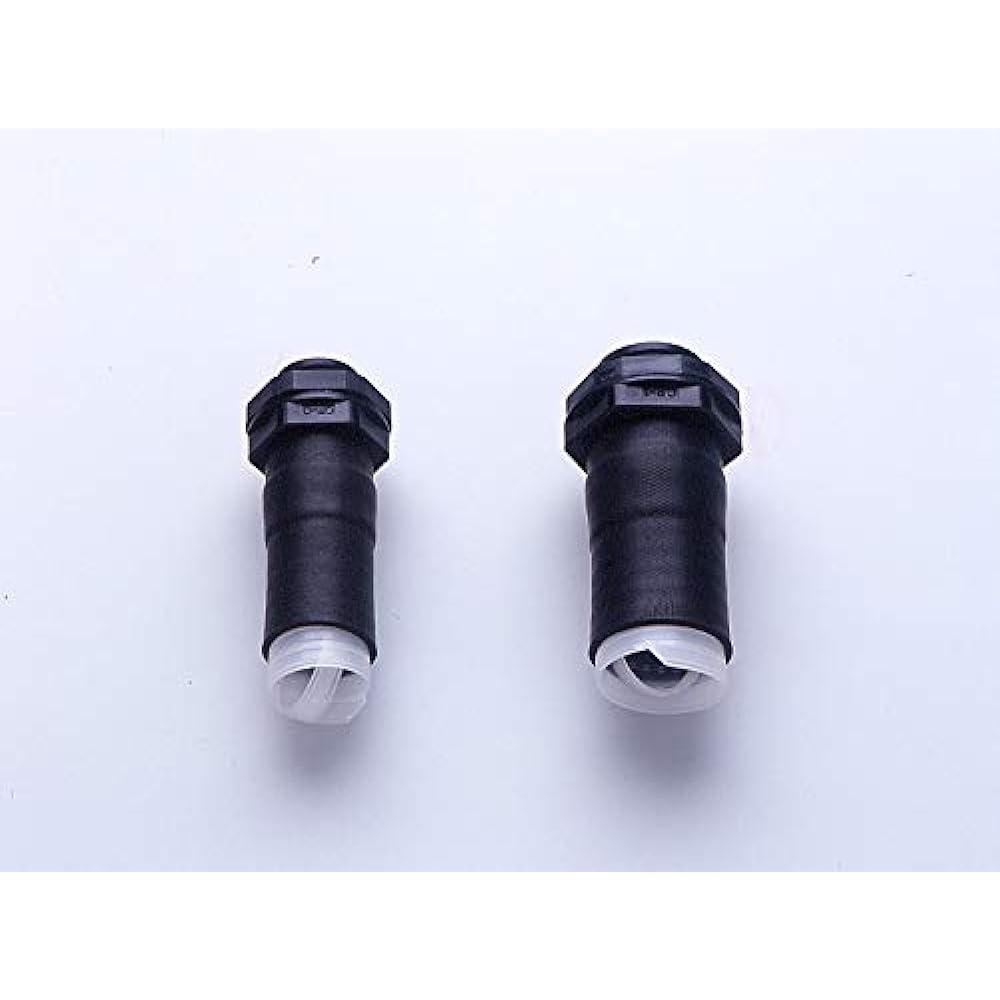

Seiwa Denki Cable Connector φ20.0~34.0 CP-3

The material of the shrink tube is ethylene propylene rubber, which has excellent weather resistance, elasticity, and shrinkability. It is easier to work with than taping, and the finish is more uniform. It is also ideal for protecting cables in bent or moving parts. [Applicable cable diameter] φ20.0~34.0 [Mounting hole diameter] φ48 [Operating temperature range] -30℃~60℃ [Material] 1 Spiral core: Polypropylene resin Shrink tube: Ethylene propylene rubber (EPDM) 2 Main body: Polypropylene resin Rubber packing: Chloroprene rubber Lock nut: Polyamide (flame retardant grade: 94V-0)

Simply pull out the spiral plastic core to retract the tube for easy protection and waterproofing.


Manufacturer: Seiwa Denki
Part number: CP-3
Product weight: 100 g
Package size: 29.3 x 11.3 x 6.9 cm; 100 g
Size: ‎φ20.0~34.0
Uses batteries: ‎No
