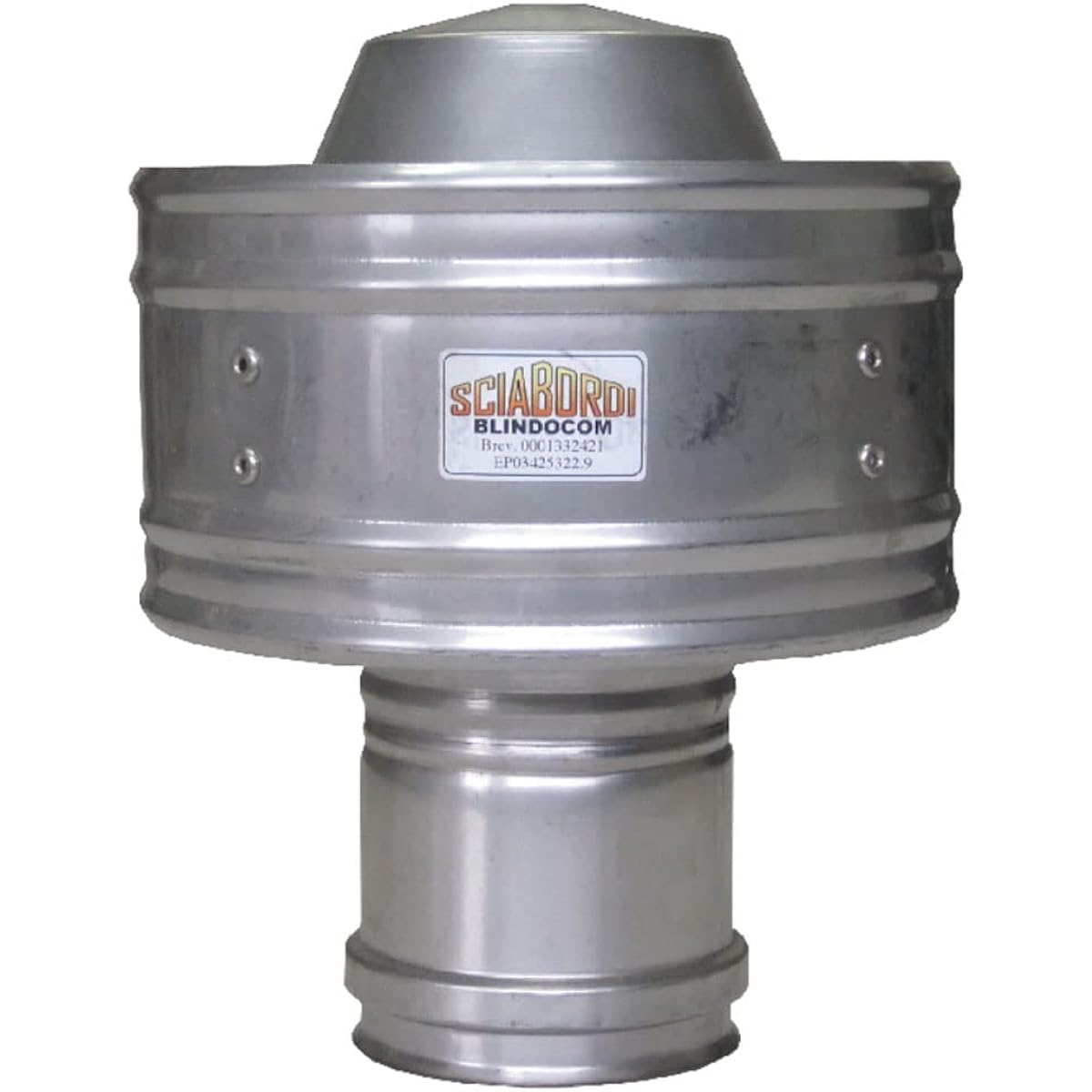

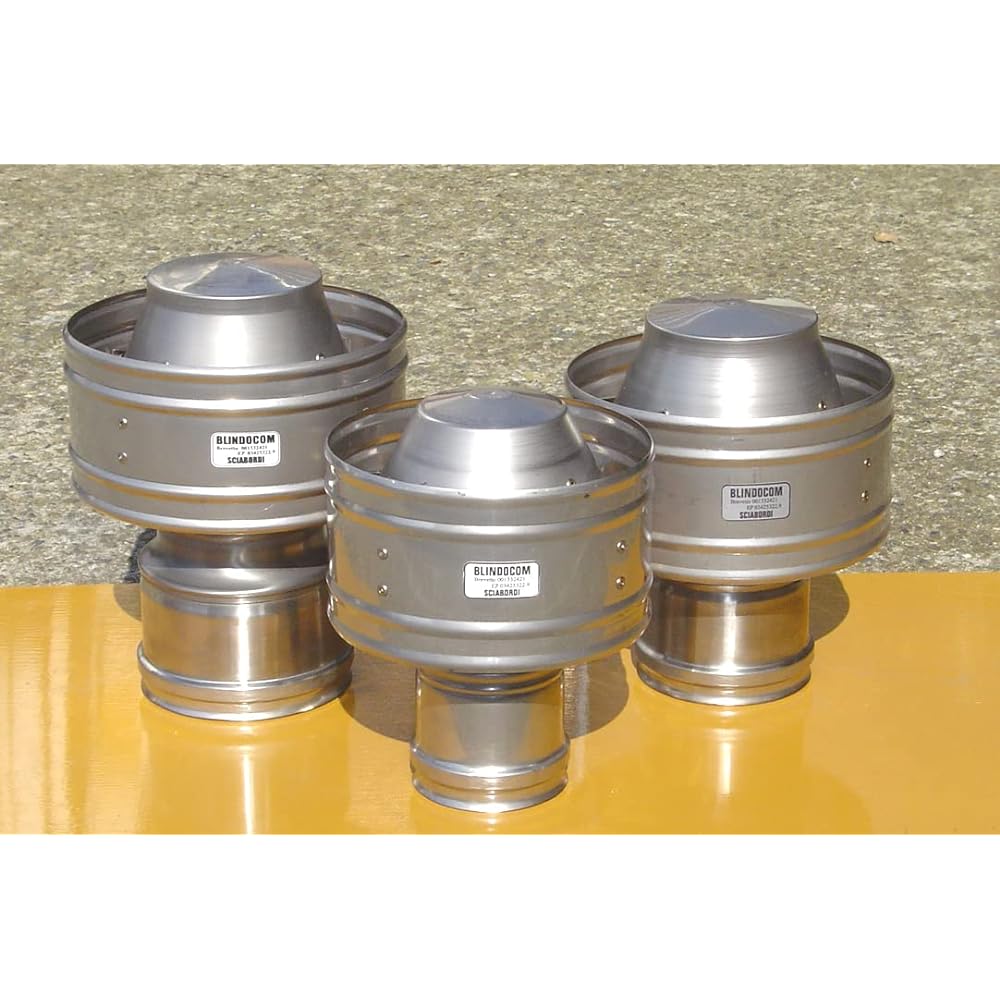

Sciabordi () Chimney top to prevent backflow of smoke from pellet stoves and wood-burning stoves, Dracula Φ80mm, with silicone gasket (for chimney outer diameter Φ80mm)

Sciabordi () Chimney top to prevent backflow of smoke from pellet stoves and wood-burning stoves, Dracula Φ80mm, with silicone gasket (for chimney outer diameter Φ80mm)

Regular price $258.00 USD
Regular price Sale price $258.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Condition: New

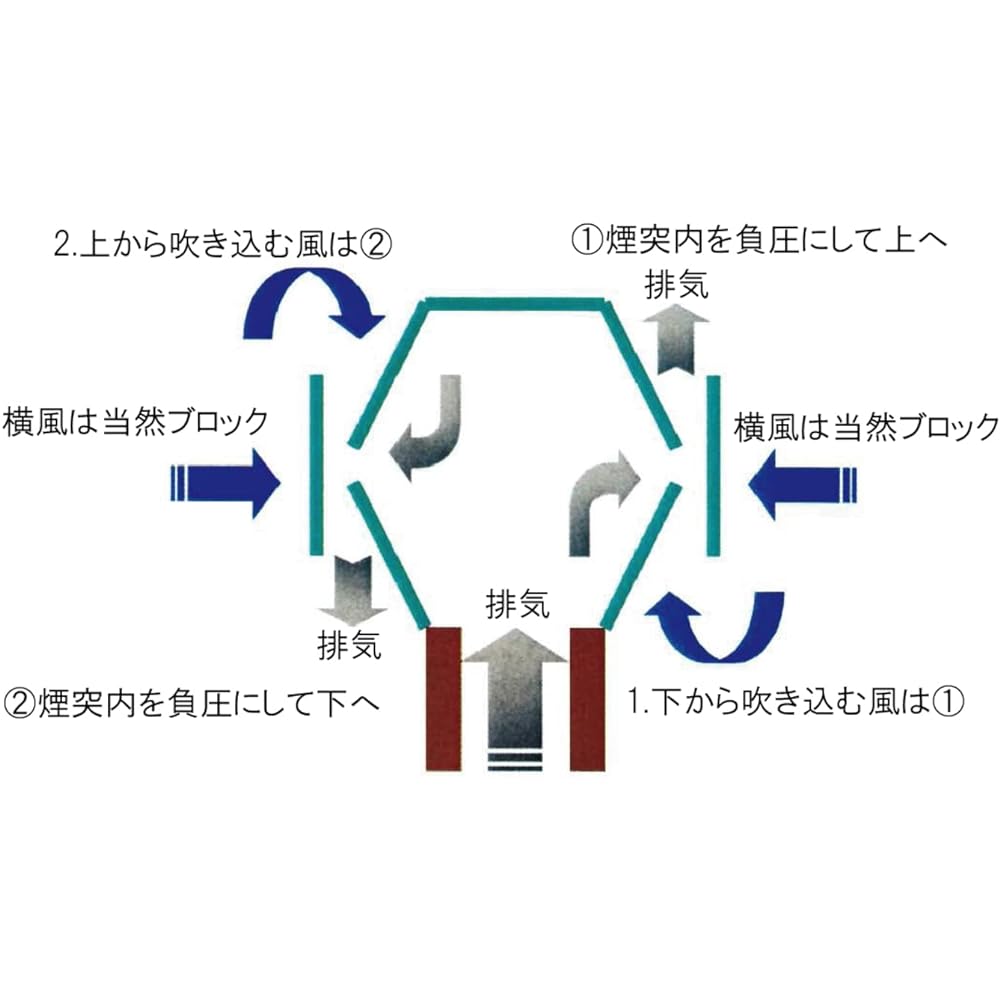

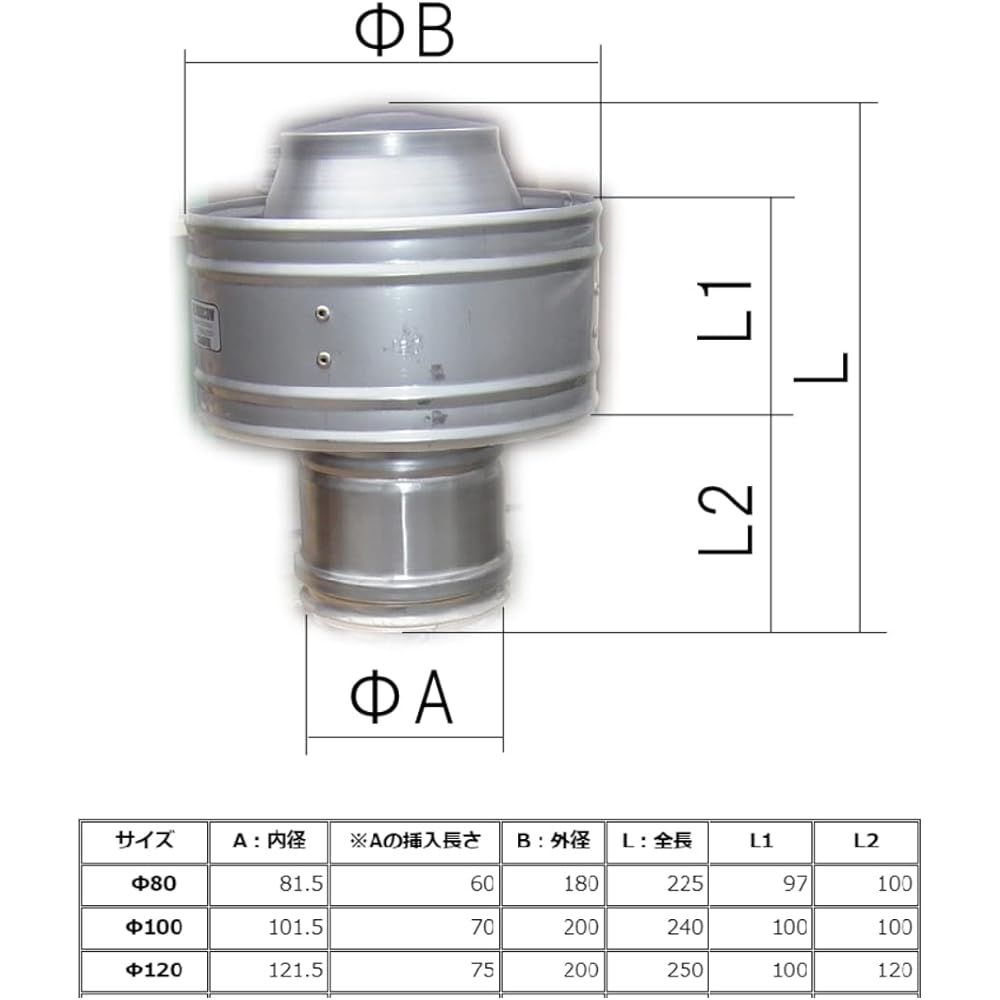

The structure of ``Dracuri'' is quite simple. . Installation is as easy as replacing the chimney top of your home's pellet stove or wood stove with the ``DRAKURI''. The effect is that the stronger the wind blows, the more draft will be generated, so it is perfect for those who have trouble with strong winds. A chimney top to prevent blowing into the chimney and backflow. It is common in Europe, but it is not very popular in Japan. Please try the latest Euro technology. Dracry for chimney outer diameter Φ80. The hole diameter on the Drakuri side is Φ81.5mm. The optimal diameter for the exhaust pipe to be inserted is Φ79-80mm. Please check before purchasing. When installing the Drakuri, please take into consideration the infiltration of rain and install a rainwater trap (steam trap) in the middle of the exhaust pipe to prevent rainwater from flowing directly into the stove. To get the full performance of the Drakuri, when standing up vertically, please keep it 40cm away from the wall. In addition, when leveling it, we recommend keeping it 90cm away from the wall. Also, it has no effect on smoke backflow in special areas that are wind pressure zones. Move the chimney top to a place where the wind can blow through. The heat resistance temperature of the included silicone packing is 200℃. If the temperature exceeds 200℃, connect without assembling the packing. If the connection is loose, fix it with screws or heat-resistant packing.

The enemy of wood stoves, pellet stoves, pellet boilers, passive houses, and other devices that require chimneys and exhaust stacks is wind blowing into the chimney, which prevents smooth exhaust. When it comes to wood burning stoves, we often hear that smoke flows into the room due to wind blowing. Pellet stoves are usually equipped with an electric exhaust fan, but in the strong winds of northern countries, commercially available chimney tops cannot handle this. It is in situations like this that the Drakuri from Italy's SCIABORDI becomes effective. The structure of ``Dracuri'' is quite simple. Installation is as easy as replacing the existing chimney top with the "Dracuri". The effect is that the stronger the wind blows, the more draft will be generated, so it is perfect for those who have trouble with strong winds. This is a chimney top to prevent blowing into the chimney and backflow. It is common in Europe, but it is not very popular in Japan. Please try the latest Euro technology.


Brand: ‎Sciabordi
Product model number: ‎SCIDANIN80SC
Product size: ‎18 x 18 x 22.5 cm; 570 g
Material: ‎Stainless steel
>Accessories: ‎Φ80 silicone packing
Product weight: ‎570 g
