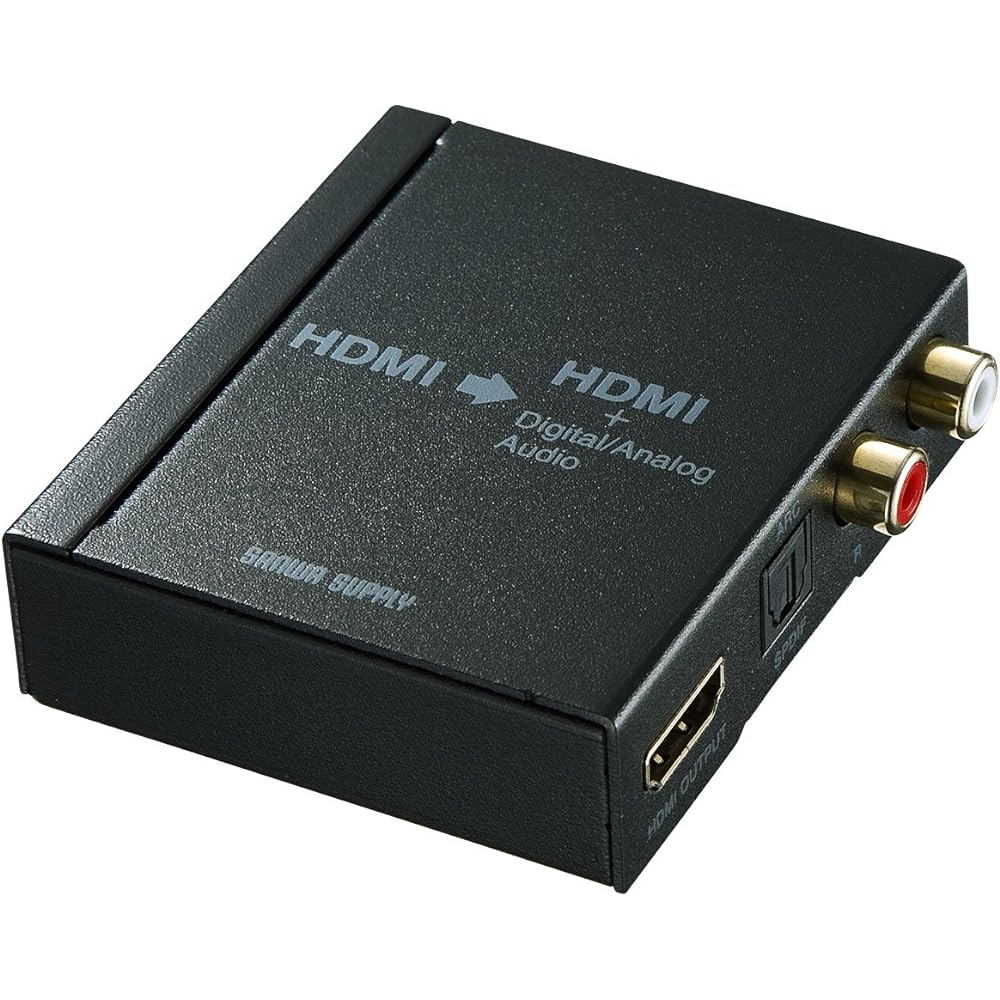

Sanwa Supply HDMI signal audio separator (optical digital/analog compatible) VGA-CVHD5

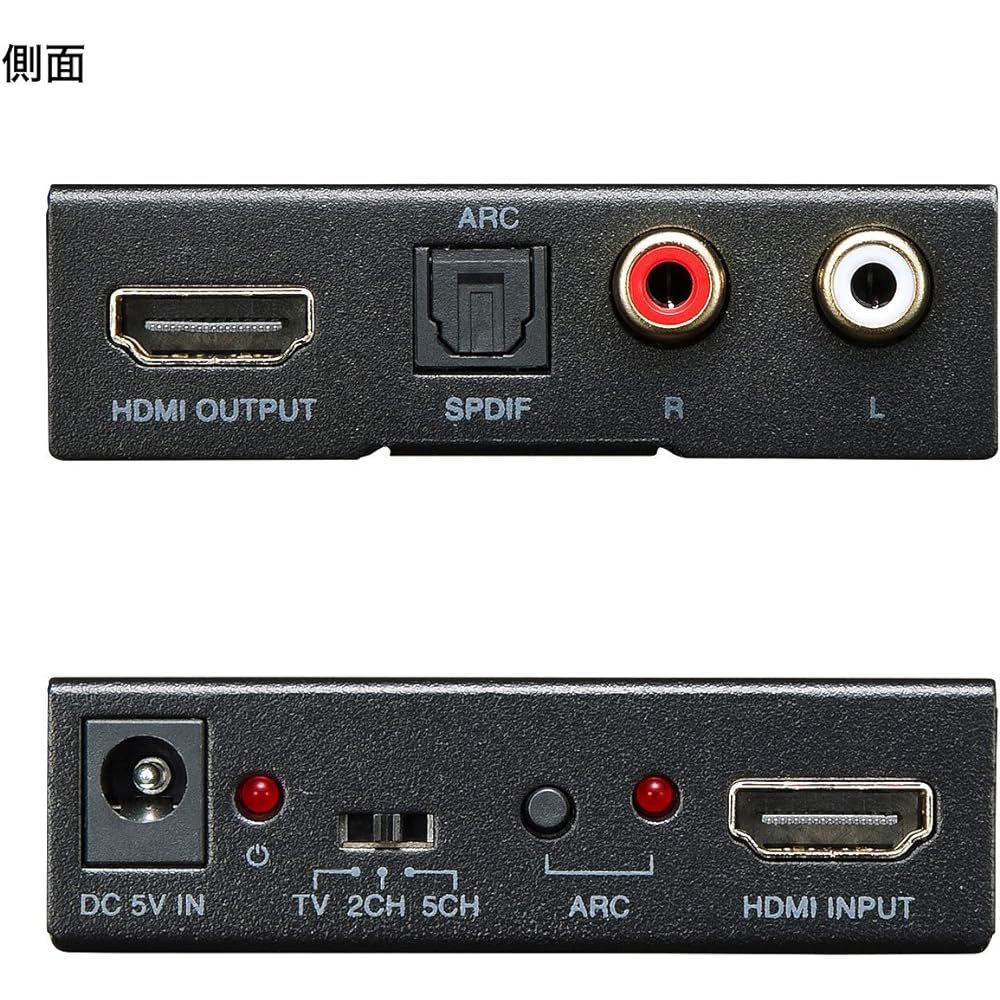

It is possible to output optical digital (square type) and can output high-quality digital audio to an AV amplifier, etc. [Interface] For input: HDMI type A (19PIN) female x 1 For output: HDMI type A (19PIN) female x 1, Toslink x 1, RCA pin jack (red and white) x 1 [Supported resolution]: 4K2K (4096 x 2160)@30Hz ARC mode is also supported, and if you turn on ARC mode, you can output TV broadcast audio from an AV amplifier or speaker via this product. You can enjoy powerful sound by outputting the original HDMI signal (video/audio) as is to a display, projector, etc., while separating the HDMI audio and outputting it to an AV amplifier or speaker. It is also ideal for use with displays that do not have audio output, and when you want to output audio from external speakers. It supports up to 4K2K (4096 x 2160) @ 30Hz resolution, and can output beautiful, high-definition HDMI signals with pass-through. HDMI signal audio separator that can separate the audio signal from the HDMI signal (video/audio) and convert it to optical digital output/analog audio output. Inter-device control (CEC): Compatible *Operation is not guaranteed with all devices. Increase number of displayed items

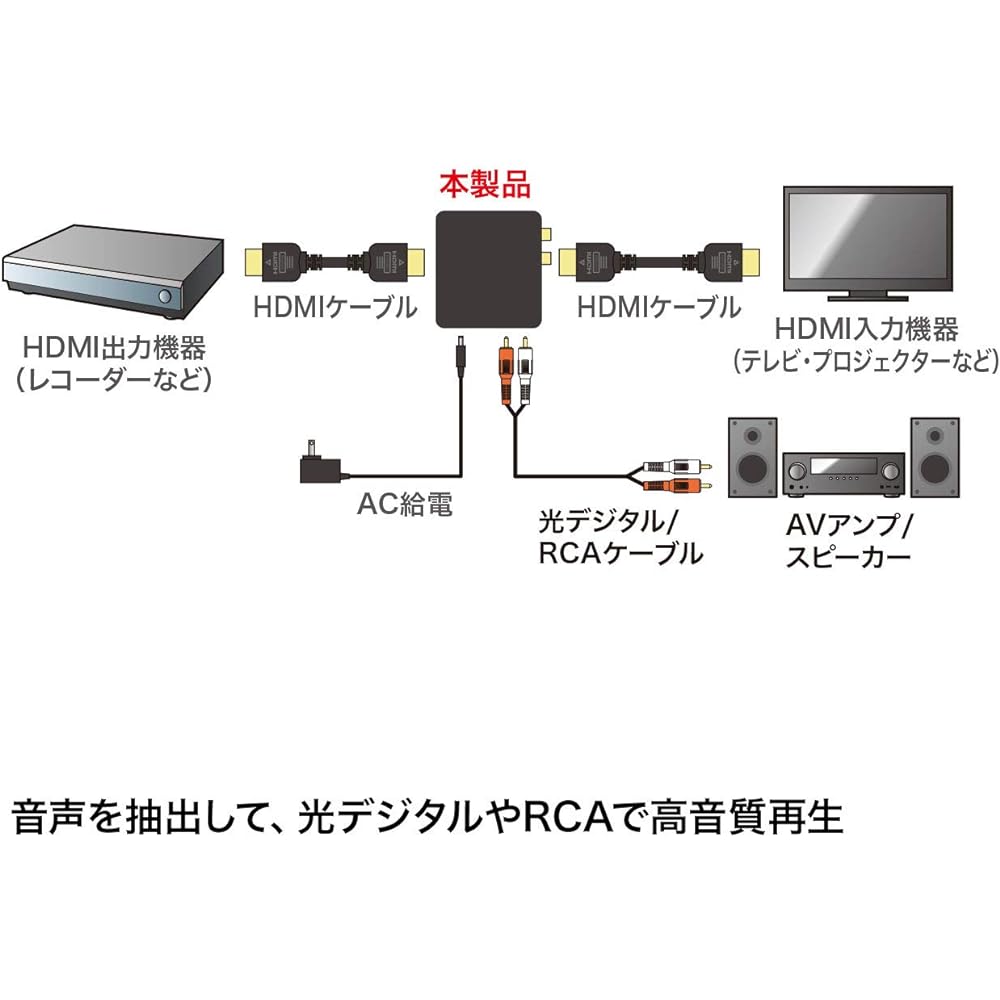

- This is an HDMI signal audio separator that can separate the audio signal from the HDMI signal of a computer or HDMI video device, convert it into an optical digital signal/analog audio signal, and output it. -You can enjoy powerful sound by outputting the original HDMI signal (video/audio) as is to a display, projector, etc., while separating the HDMI audio and outputting it to an AV amplifier or speaker. - Ideal for use with displays that do not have audio output and want to output audio from external speakers. - Optical digital (square) output is possible, allowing high-quality digital audio to be output to an AV amplifier, etc. - It also supports ARC mode, and if you turn on ARC mode, you can output TV broadcast audio from an AV amplifier or speaker via this product. - Compatible with resolutions up to 4K2K (4096 x 2160) @ 30Hz, and can output beautiful, high-definition HDMI signals with pass-through. [Compatible input devices]: Video equipment, home game consoles, computers that come standard with an HDMI output terminal [Compatible output devices] HDMI side: TVs, projectors, computer displays, etc. that come standard with an HDMI input terminal Audio Side: Devices with optical digital (square) input, devices with analog audio input ■Interface For input: HDMI type A (19PIN) female x 1 For output: HDMI type A (19PIN) female x 1, Toslink x 1, RCA pin jack (red and white) x 1 ■HDCP: HDCP1.4 compliant ■Supported resolution: 4K2K (4096×2160)@30Hz Main supported resolutions: 4096×2160@30Hz (4:4:4) 3840×2160@30Hz (4:4:4) 3840×2160@30Hz (4:2:2) 1920×1200@60Hz 1920×1080@60Hz ■Supported audio formats: HDMI input/output side: Dolby Digital 2.0ch/5.1ch, Dolby Digital Plus2.0ch/5.1ch/7.1ch Dolby TrueHD 2.0ch/5.1ch/7.1ch, DTS5.1ch, DTS HD5.1ch, LPCM2ch (maximum 24bit 192KHz) Optical digital output side: Dolby Digital 2.0ch/5.1ch, DTS5 .1ch, LPCM2ch (maximum 24bit 192KHz) Analog output side: LPCM2ch (maximum 24bit 48KHz) ■Inter-device control (CEC): Compatible *Operation is not guaranteed with all devices. ■Power consumption: 1W ■Operating temperature/humidity: Temperature 0~40℃, humidity 80% or less (no condensation) ■Storage temperature/humidity: Temperature -20~60℃, humidity 80% or less (no condensation) ■Material: Steel ■Size: W60 x D70 x H20mm ■Weight: Approx. 125g ■Accessories: AC adapter x 1, instruction manual *Operation with all HDMI devices and AV devices is not guaranteed. Attention


Compatible models: ‎Projector, speaker, amplifier
Batteries included: ‎No
Batteries used: ‎No
Brand name: ‎Sanwa Supply
Manufacturer: ‎Sanwa Supply )
Product model number: ‎VGA-CVHD5
Supported OS: ‎not_machine_specific
Material: ‎Steel
Product size: ‎7 x 6 x 21 cm; 200 g
Product weight: ‎0.2 kilogram
