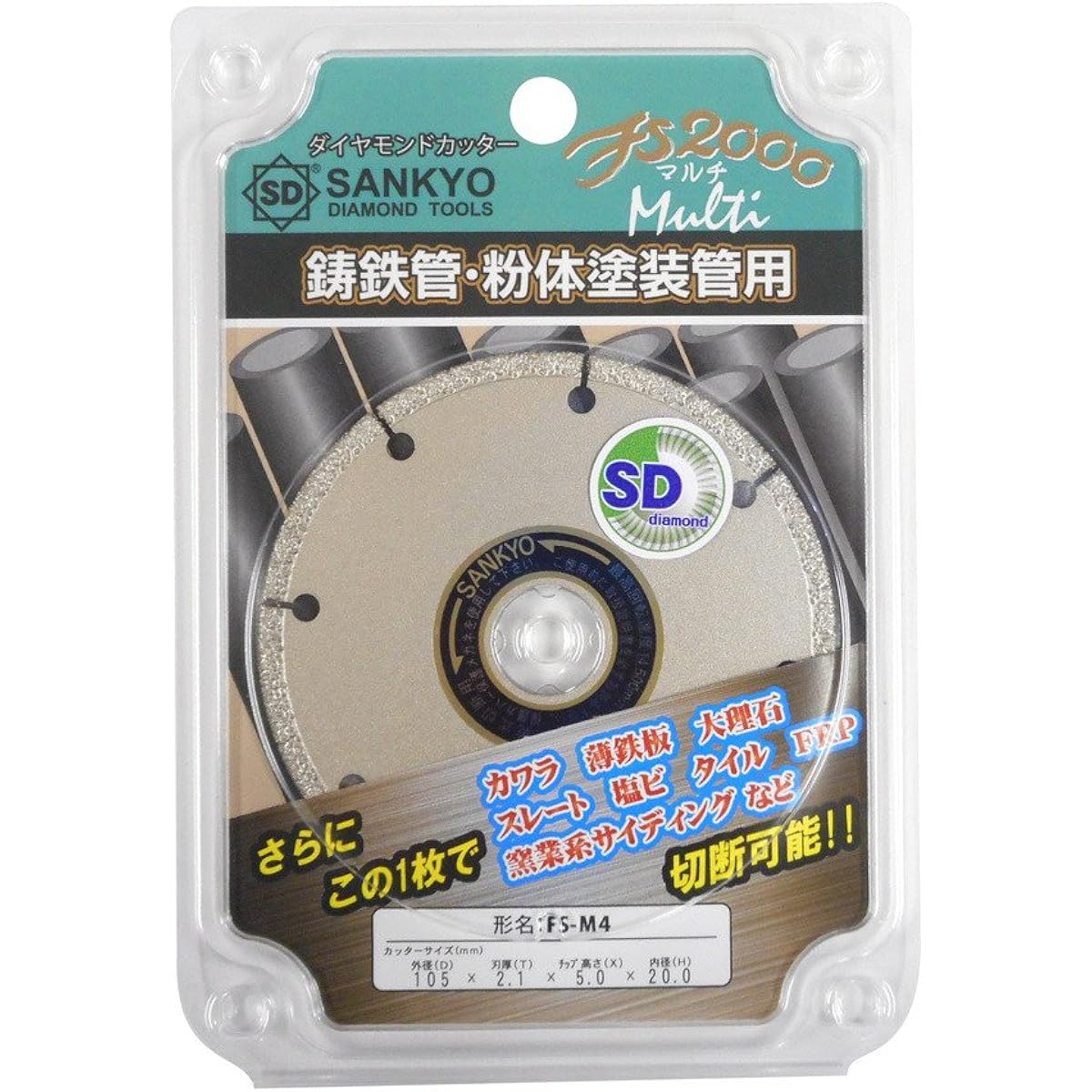

SANKYO Diamond Cutter FS2000 Multi 105mm FS-M4

Applications: Cutting cast iron pipes, powder-coated pipes, and thin iron plates *Cannot cut iron plates and aluminum over 1 mm Outer diameter: 105 mm Blade thickness: 2.1 mm Tip height: 5.0 mm Inner diameter: 20.0 mm Attached ring: 15 mm Applicable tools: Round Saw Maximum rotation speed: 14500min-1 For dry cutting/segment type Inspection items before use: 1. There is no bending or warping of the blade or board. 2. There are no chips, cracks, scratches, or abnormal wear on the blade or the board. 3. Must have a protective cover. There should be no looseness or play when installing the cutter. 4. There should be no vertical or horizontal vibration of the cutter or abnormal noise. *Check by idling for 1 minute. However, the new one idles for 3 minutes. CAUTION: Be sure to wear safety glasses when working. Curve cutting and twisting prohibited. Prohibition of side use. It cannot cut iron plates larger than 1mm. Aluminum cannot be cut. Increase the number of displayed items

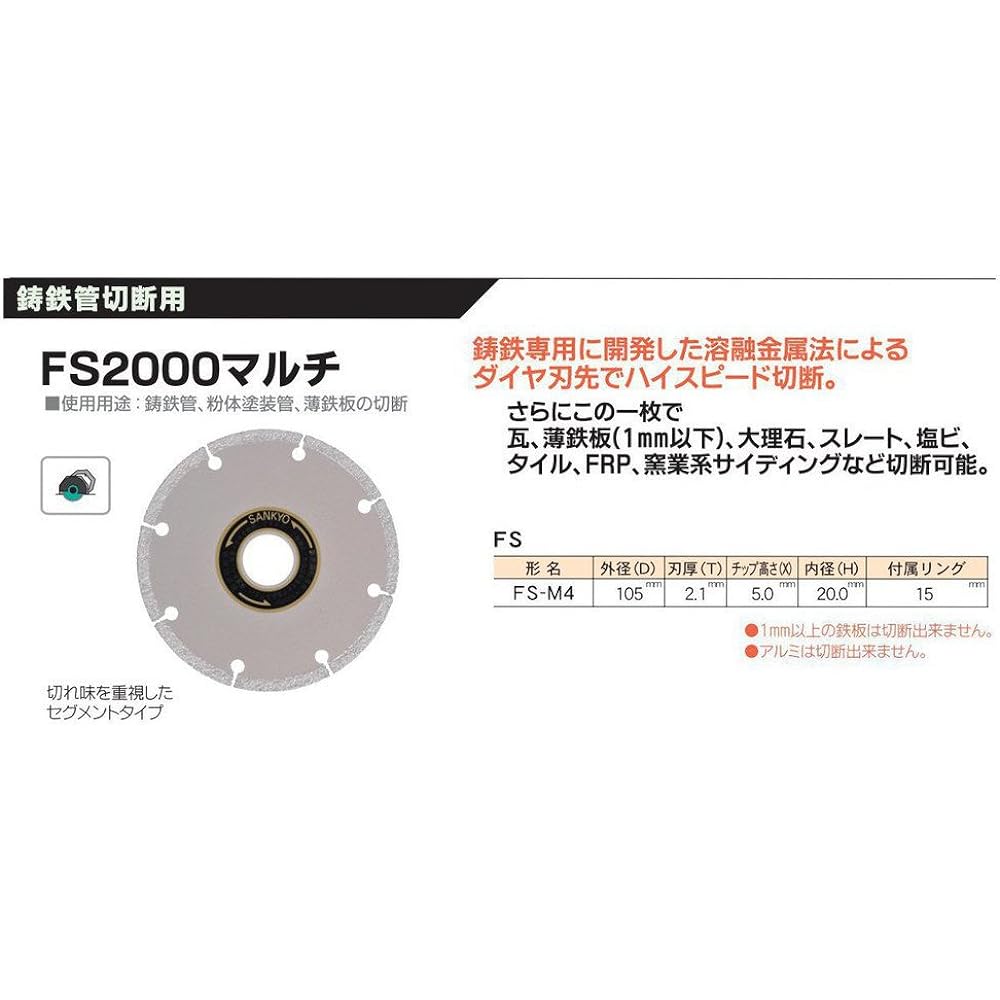

For cast iron pipes and powder-coated pipes. Furthermore, with this single piece, it is possible to cut kawara, thin iron plates (1 mm or less), marble, slate, PVC, tiles, FRP, ceramic siding, etc. High-speed cutting with a diamond cutting edge using the molten metal method developed specifically for cast iron.


Brand: Sankyo Diamond Industrial
Product model number: FS-M4
Package size: 21.9 x 16 x 3.6 cm; 144 g
Name on nameplate: ‎Diamond Cutter
Quantity: ‎1
Product weight: ‎144 g
