SAMDO Speed Sensor Adapter Universal Auto Bai Speedometer Tachometer

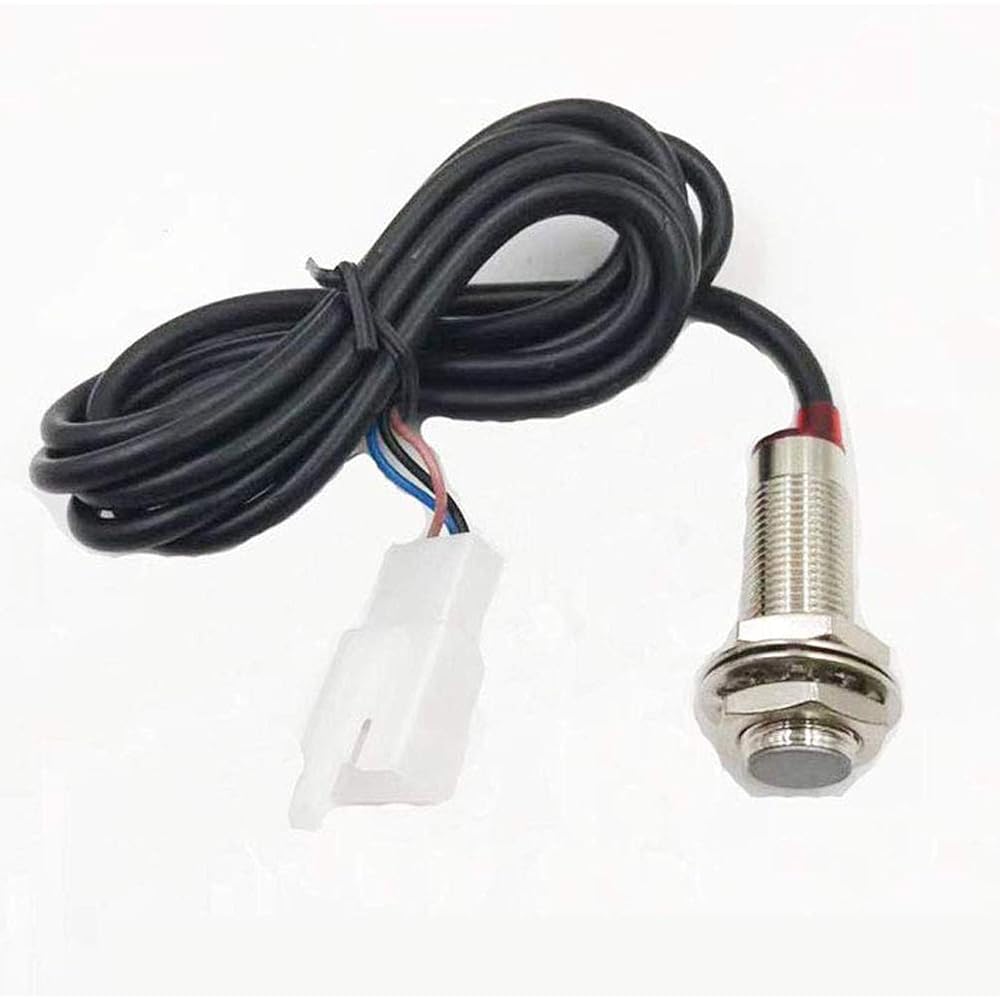

Speed ​​sensor for all SAMDO universal motorcycle speedometer odometer gauge. The red sensor LED lights up when it passes the magnet. Plug directly into your SAMDO speedometer. No need to disconnect. Operating voltage 5V~12V. Includes 1 speed sensor cable (1210mm/47.63 inch), 2 magnets, 2 metal clips, 1 speed sensor mount, and 5 metal pins. Note: 2mm-3mm is the best distance between magnet and sensor. Beyond this gap, the sensor will not receive any signal from the magnet.

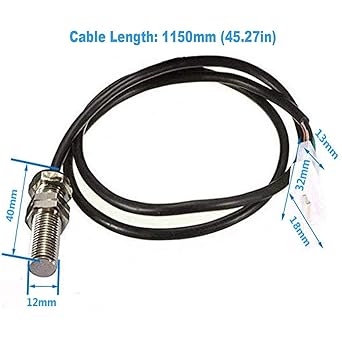

Speed ​​sensor for Samdo universal motorcycle speedometer odometer gauge. Compatible models: ASIN: B01LYK10Q2 B07VTPZVRL B07TYYD4KV B01LXWKGGX B0716TGCRT B072BB495T B0794X78DR B0711MZWP2 B078R1TN12 B07Q49Z4V5 B08BKS2Y6S B07XB15PV7 Product specifications: Cable length :1150mm (45.27inch) Sensor terminal length: 40mm (15.74 inch) Sensor terminal diameter: 12mm (4.72 inch) Plastic connector length: 32mm (12.59 inch) Plastic connector width: 18mm (7.08 inch) Overall: 1210mm (47.63 inches). Package Content: 1 x Speed ​​Sensor Cable 2 magnets 2 x Metal Gaskets 1 x Speed ​​Sensor Mount 5 x metal pins Includes necessary hardware (see photos).


Manufacturer: ‎SAMDO
Part number: ‎132246-Sensor
Item weight: ‎68 g
Discontinued by manufacturer: ‎No
Material: ‎Plastic Metal
Battery included: ‎No
Batteries used: ‎No
Product dimensions (Length x Width x Height): ‎1 x 12 mm
