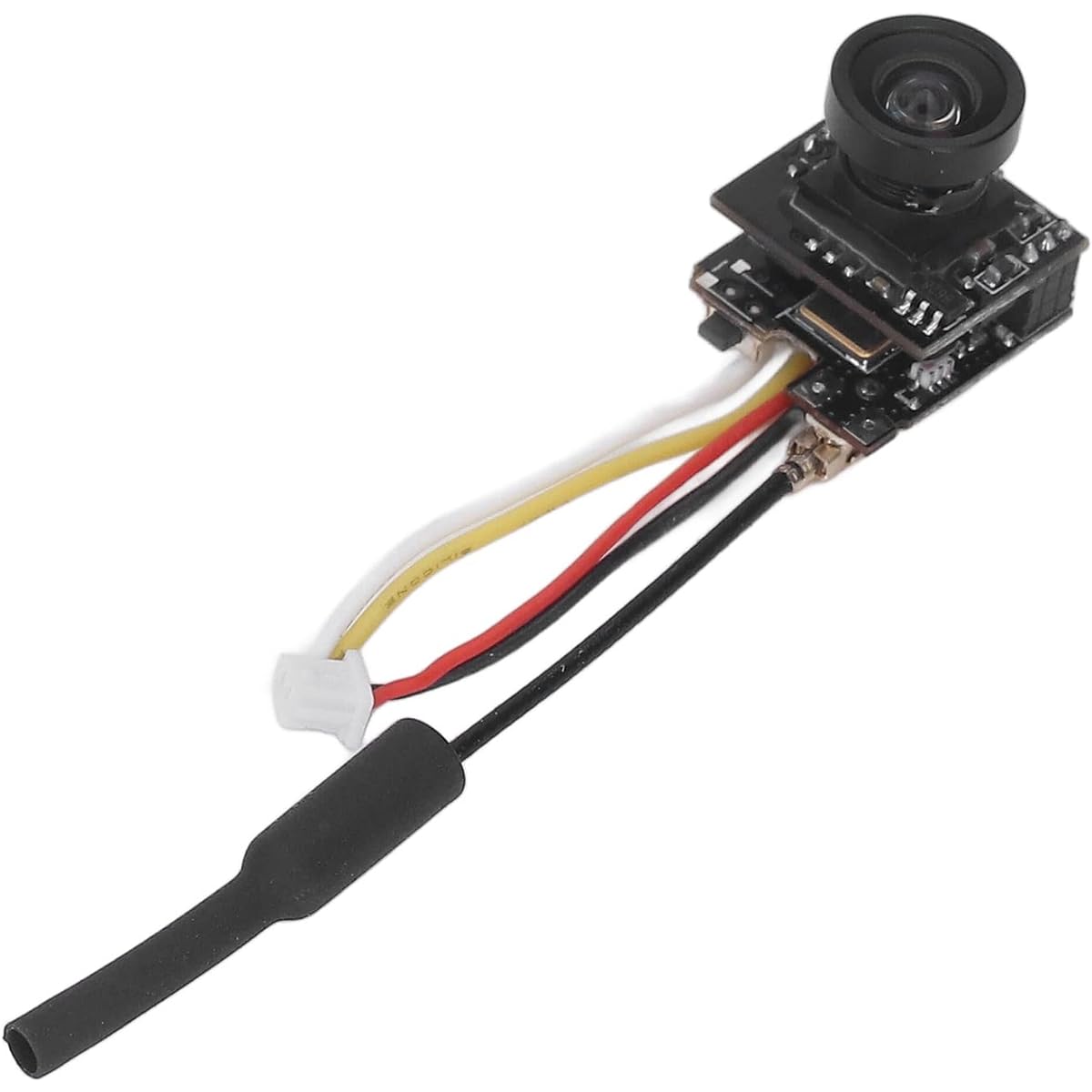

RTLR FPV Camera, Raceband 800TVL 5.8GFPV Camera for FPV Drone

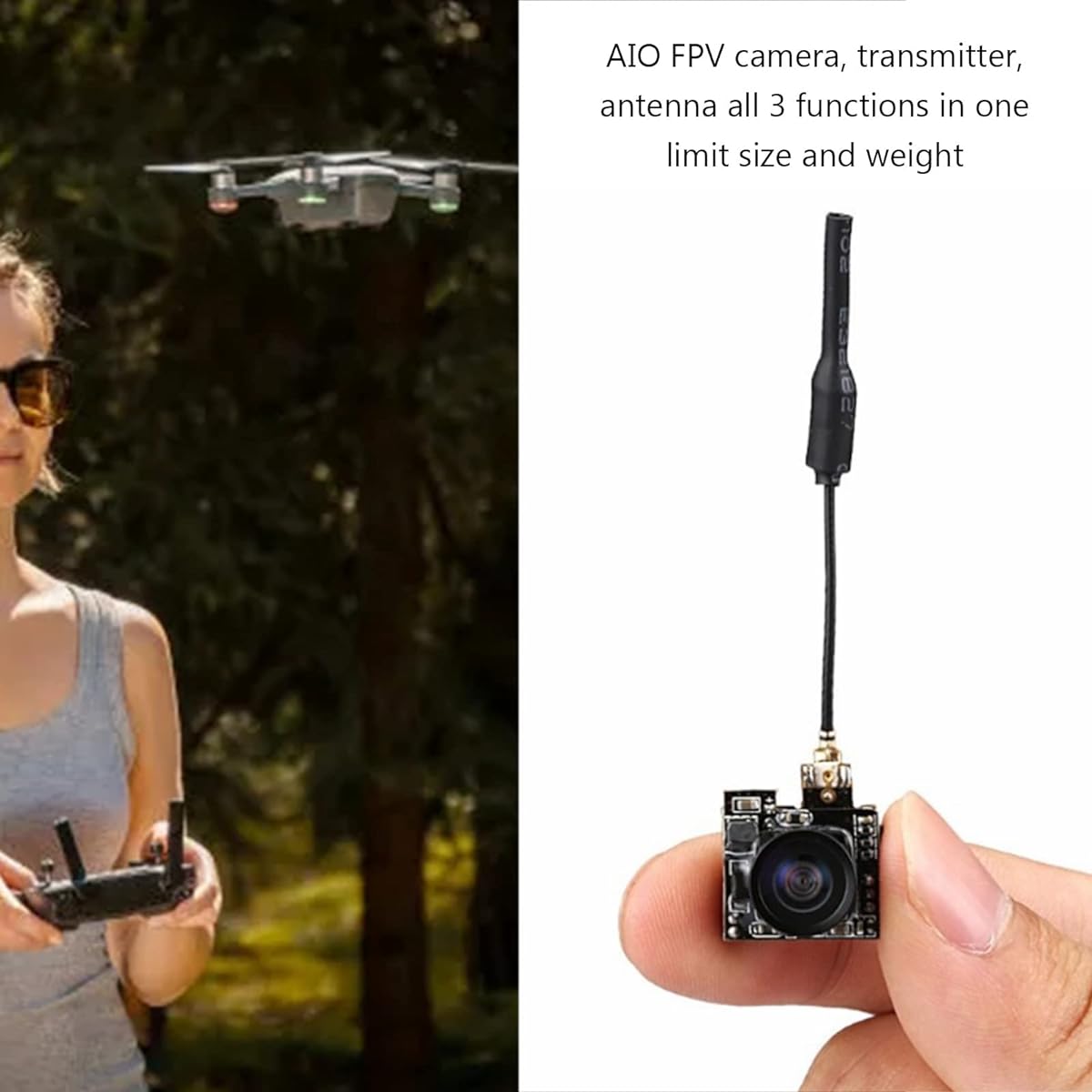

Video Transmitter and Viewing Angle: The FPV camera is equipped with a video transmitter and a three-leaf antenna FOV 150° horizontal viewing angle, 170° DFOV oblique perspective. Scope of Application: Perfect for models that require minimal weight and space without compromising quality. This FPV camera is carefully welded and easy to install. Excellent Performance: AIO FPV camera, transmitter and antenna all three functions in one limit size and weight. 380mA 3.7V power consumption. Quality Material: Made of premium plastic and electronic components material, with exquisite workmanship, lightweight and practical. Perfect for remote control drones. NTSC and PAL Switchable: 5 Bands, 40 Channels, with Raceband, small size, lightweight, suitable for NTSC and PAL video formats.

Specification: Item Type: 5.8G 40CH AIO FPV Camera Material: Plastic, Electronic Components Color: Black Weight: Approx. 28g/1.0oz FPV Camera: Sensor: 1/4" CMOS Lens: M8 800TVL Lens Viewing Angle: 150° FOV Horizontal Viewing Angle 170° DFOV Diagonal Viewing Angle Format: NTSC, PAL) Switchable) Power Consumption: 380mA 3.7V Power Supply: 3.6-5.5V Mirror Diameter: 2.1mm IR Coating FOV150) Horizontal) Video Transmitter: Support Video Format: NTSC, PAL Output Impedance: 75 Ohm Output Signal Strength: 23-24dBm Output Power: 25mW Wireless Channel: 40CH Antenna: RHCP Circular Polarized Trilobal Antenna Working Voltage: 3.6V-5.5V Current: 100mA Audio Carrier: 6.5MHz Button Function: Short Press) APR 1s or less): Change Channel 1-8 Long Press) 1.5s or more): Change Band ABEFR Long Press) 3s or more): Change NTSC, PAL Format NTSC or PAL) Optional; Blue LED on = NTSC; Blue LED off = PAL) Application: Suitable for FPV drone, racing car, FPV glasses, screen Package List:


Part Number: ‎RTLRikfe4toscv
Number of Players: ‎1
Battery Use: ‎No
Applicable Gender: ‎Unisex
Product Model Number: ‎RTLRikfe4toscv
Package Size: ‎8 x 7 x 4 cm
