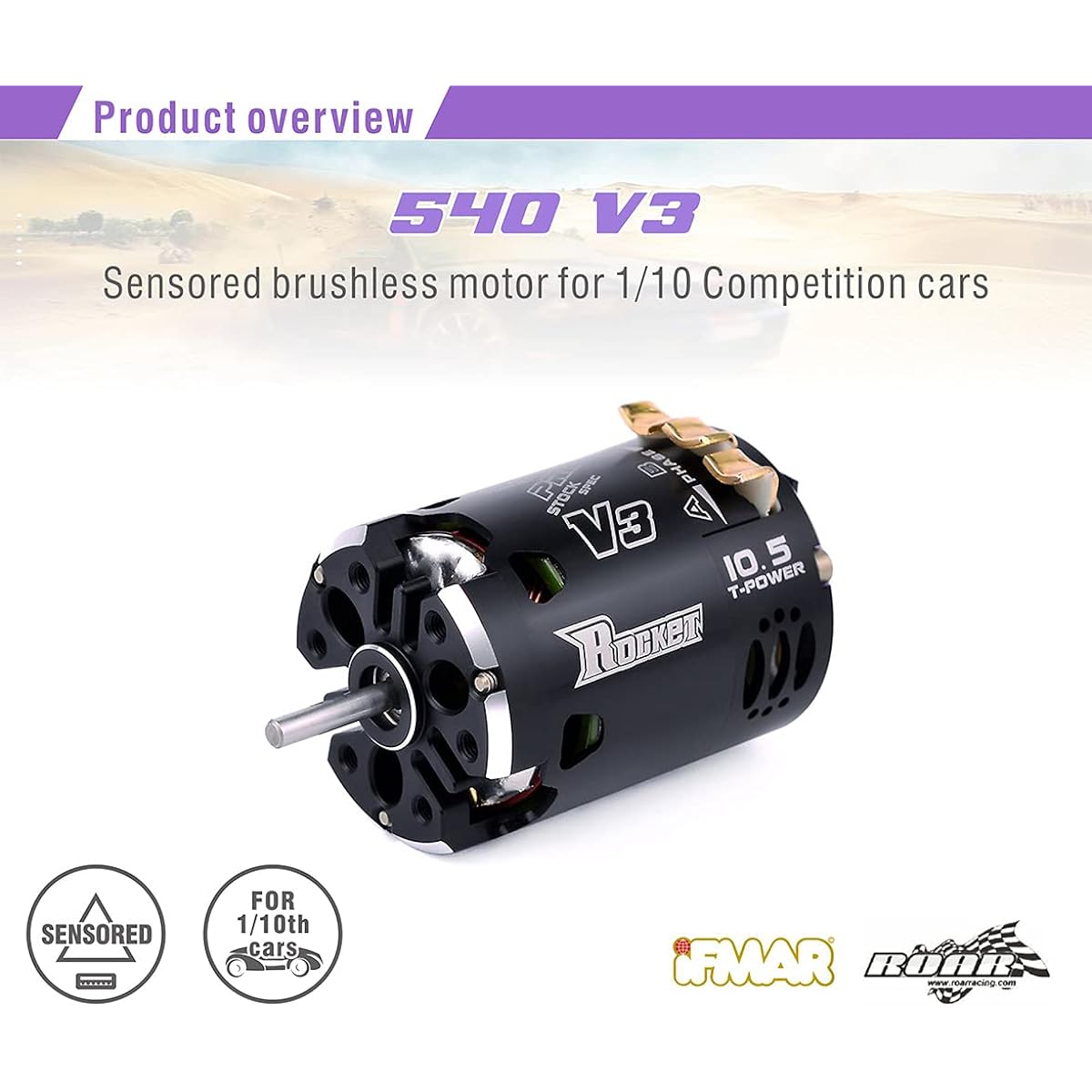

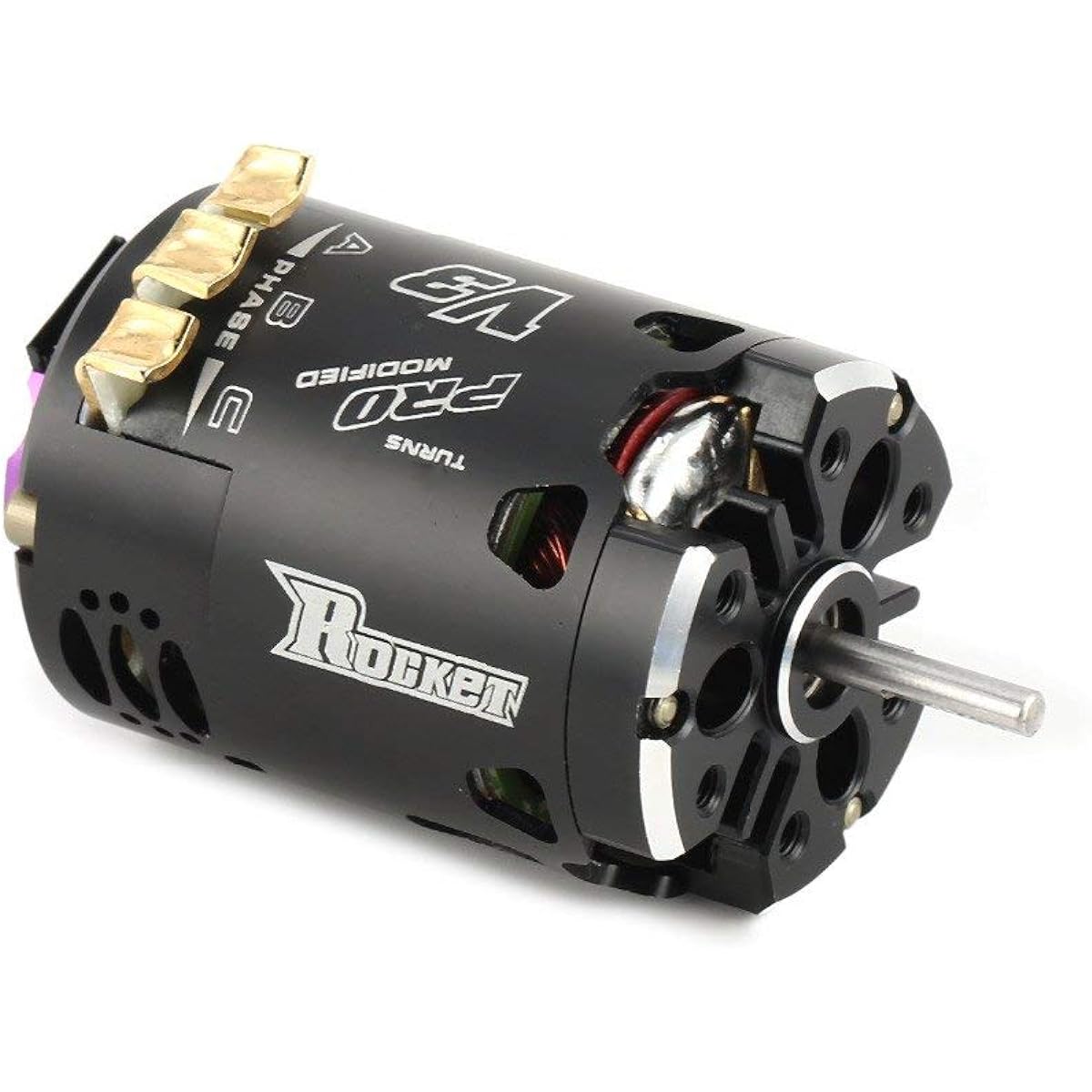

Rocket 540 V3 Sensored Brushless Motor 10.5T Modified for 1/10 RC Racing Car Truck Crawler
Rocket 540 V3 Sensored Brushless Motor 10.5T Modified for 1/10 RC Racing Car Truck Crawler
Regular price
$164.00 USD
Regular price
Sale price
$164.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
CNC machined billet T6 aluminum heat sink can. High purity copper windings for maximum conductivity. High power solder tabs. Removable/replaceable rotor. Powerful sintered neodymium magnets.
Features: CNC machined billet T6 aluminum heat sink can. High purity copper windings for maximum conductivity. High power solder tabs. Removable/replaceable rotor. Powerful sintered neodymium magnets. Precision engineered for maximum energy conversion. Adjustable timing. Compatible with sensored/sensorless ESCs. IFMAR, ROAR compliance. Specifications: Application: 1/10 scale RC competition vehicles Brand Name: SURPASS HOBBY Rocket. Total Weight: 205g. Sensored or Sensorless: Sensored. Size: 540 RPM: 10.5T. Watts: 250W. Max Amps: 63A. IO: 1.8A. Rotor Poles: 2 Resistance: 0.0198 Kv(RPM/Volts): 3800. Rotor: 12.5 * 7.2mm Diameter: Approx. 35.8mm. Length: Approx. 54mm. Extension shaft length: Approx. 14.5mm. Shaft diameter: Approx. 3.175mm. Recommended battery: 1-3S Li-Po. Type: Specs Package Includes: 1 x Motor 1 x Instruction Manual
Features: CNC machined billet T6 aluminum heat sink can. High purity copper windings for maximum conductivity. High power solder tabs. Removable/replaceable rotor. Powerful sintered neodymium magnets. Precision engineered for maximum energy conversion. Adjustable timing. Compatible with sensored/sensorless ESCs. IFMAR, ROAR compliance. Specifications: Application: 1/10 scale RC competition vehicles Brand Name: SURPASS HOBBY Rocket. Total Weight: 205g. Sensored or Sensorless: Sensored. Size: 540 RPM: 10.5T. Watts: 250W. Max Amps: 63A. IO: 1.8A. Rotor Poles: 2 Resistance: 0.0198 Kv(RPM/Volts): 3800. Rotor: 12.5 * 7.2mm Diameter: Approx. 35.8mm. Length: Approx. 54mm. Extension shaft length: Approx. 14.5mm. Shaft diameter: Approx. 3.175mm. Recommended battery: 1-3S Li-Po. Type: Specs Package Includes: 1 x Motor 1 x Instruction Manual
