Rise Corporation LED Tachometer Black Body/White Panel 48mm Electric x1000rpm Bike Motorcycle
Rise Corporation LED Tachometer Black Body/White Panel 48mm Electric x1000rpm Bike Motorcycle
Regular price
$100.00 USD
Regular price
Sale price
$100.00 USD
Unit price
/
per
Condition: New
General-purpose product/DC12V vehicle *4-stroke (4-cycle) 2-cylinder engine vehicle. *Cannot be used in batteryless vehicles. *Vehicles where the engine rotation signal frequency is 1000rpm=16.6Hz. At other frequencies, the rotation speed will not be normal. From mini bikes to large cars! Since it is a general purpose product, it is compatible with many car models. When the ignition is turned on, the meter needle moves once to the maximum and performs a test diagnosis. Adopts a cool black body with LED backlight! Easy to install as it comes with a V-shaped stay! ! Available in a wide range of sizes. Can be attached to inch bars, fat bars, and 22.2mm handlebars. Mountable diameter: Maximum approximately 28.6mm to minimum approximately 22.2mm New and unused item. There are no instructions or warranty. Made in Taiwan.

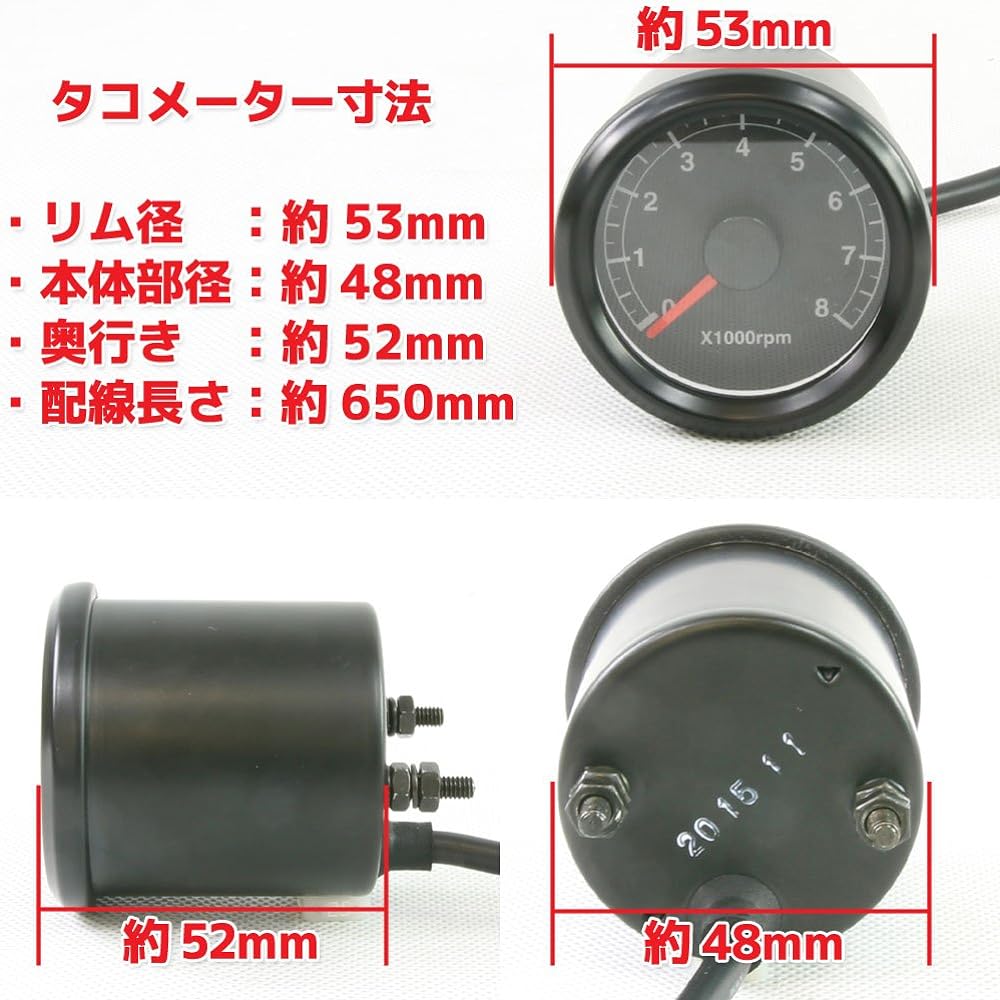

■Details■ [Product Details] Electric minimeter specifications Lighting: LED light display Display: RPM x 1000 (Mxa8000RPM) Voltage: 12V Size: Ф48 pi (diameter 48mm) Compatible engine: 4-stroke (4 cycle) 2-cylinder engine vehicle Included Item: V-shaped mounting stay, Japanese manual Others: Test diagnosis when ignition is ON (meter needle moves to max once) New, unused item. No manual or warranty. [Size] - Rim diameter: approx. 53mm - Body diameter: approx. 48mm - Depth: approx. 52mm - Wiring length: approx. 650mm *Please allow slight dimensional errors. [Wiring details] - Black: Earth (-) - Red: ACC power supply (DC 12v) - Green: RPM signal (pulse signal) ■Installation■ Compatible with a wide range of sizes. The clamp comes with two rubber sheets that can be adjusted depending on the diameter of the handle where it is installed. Can be attached to inch bars, fat bars, and 22.2mm handlebars. *Cannot be installed on models with negative pulse ignition This is a model where only one wire (positive wire) is connected to the ignition coil, and the negative side is grounded to the body. Some vehicles with weak pulses may not be compatible. ▼Video is being distributed as an installation image! ! Search for "Motorcycle electric 240km/h 60mm LED speedometer & tachometer with trip meter/white panel"! !
Manufacturer: Rise Corporation
Brand: Rise Corporation
Packing size: 10.9 x 9.3 x 6.3 cm; 282 g
Manufacturer reference: T07Z9990012WH
Color : White
Product weight: 282 g
■Details■ [Product Details] Electric minimeter specifications Lighting: LED light display Display: RPM x 1000 (Mxa8000RPM) Voltage: 12V Size: Ф48 pi (diameter 48mm) Compatible engine: 4-stroke (4 cycle) 2-cylinder engine vehicle Included Item: V-shaped mounting stay, Japanese manual Others: Test diagnosis when ignition is ON (meter needle moves to max once) New, unused item. No manual or warranty. [Size] - Rim diameter: approx. 53mm - Body diameter: approx. 48mm - Depth: approx. 52mm - Wiring length: approx. 650mm *Please allow slight dimensional errors. [Wiring details] - Black: Earth (-) - Red: ACC power supply (DC 12v) - Green: RPM signal (pulse signal) ■Installation■ Compatible with a wide range of sizes. The clamp comes with two rubber sheets that can be adjusted depending on the diameter of the handle where it is installed. Can be attached to inch bars, fat bars, and 22.2mm handlebars. *Cannot be installed on models with negative pulse ignition This is a model where only one wire (positive wire) is connected to the ignition coil, and the negative side is grounded to the body. Some vehicles with weak pulses may not be compatible. ▼Video is being distributed as an installation image! ! Search for "Motorcycle electric 240km/h 60mm LED speedometer & tachometer with trip meter/white panel"! !
Manufacturer: Rise Corporation
Brand: Rise Corporation
Packing size: 10.9 x 9.3 x 6.3 cm; 282 g
Manufacturer reference: T07Z9990012WH
Color : White
Product weight: 282 g
