Rise Corporation LED Tachometer Black Body/Black Panel 48mm Electric x1000rpm Bike Motorcycle

General-purpose product/DC12V vehicle *4-stroke (4-cycle) 2-cylinder engine vehicle. *Cannot be used in batteryless vehicles. *Vehicles where the engine rotation signal frequency is 1000rpm=16.6Hz. At other frequencies, the rotation speed will not be normal. From mini bikes to large cars! Since it is a general purpose product, it is compatible with many car models. When the ignition is turned on, the meter needle moves once to the maximum and performs a test diagnosis. Adopts a cool black body with LED backlight! Easy to install as it comes with a V-shaped stay! ! Available in a wide range of sizes. Can be attached to inch bars, fat bars, and 22.2mm handlebars. Mountable diameter: Maximum approximately 28.6mm to minimum approximately 22.2mm New and unused item. There are no instructions or warranty. Made in Taiwan.

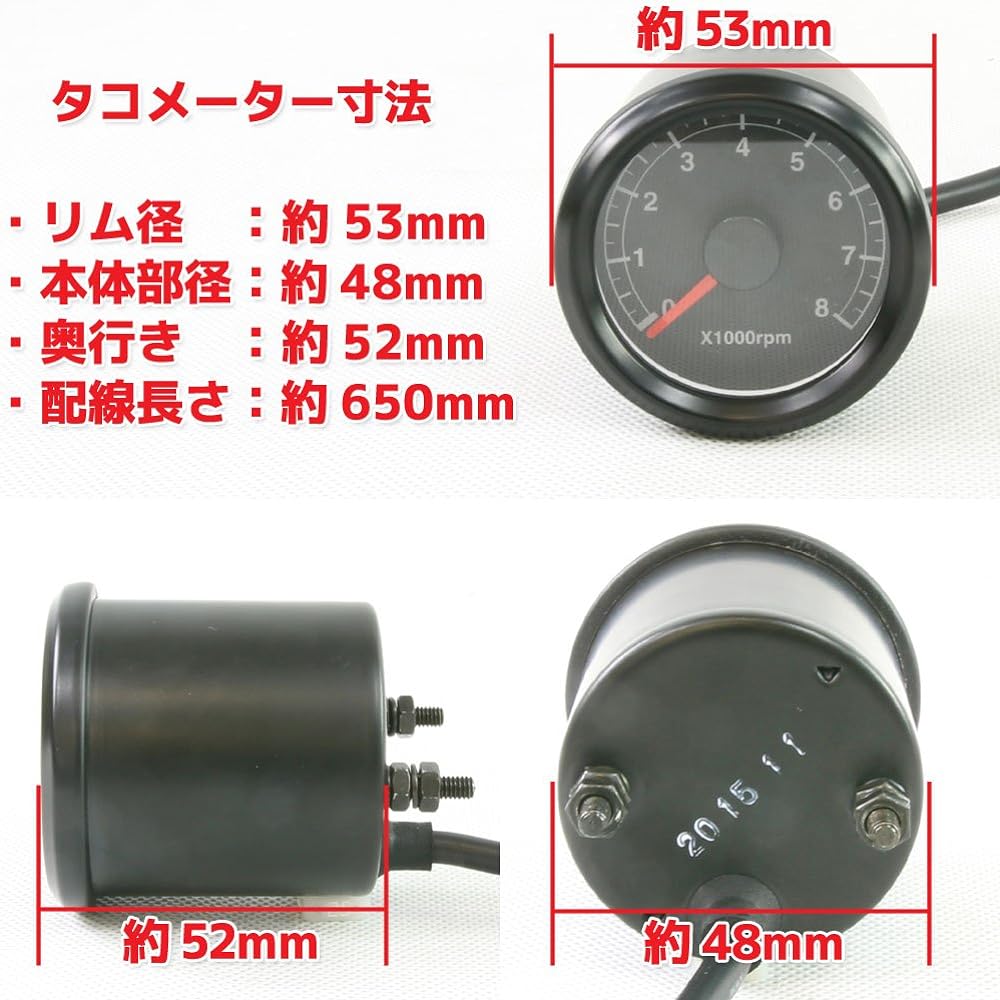

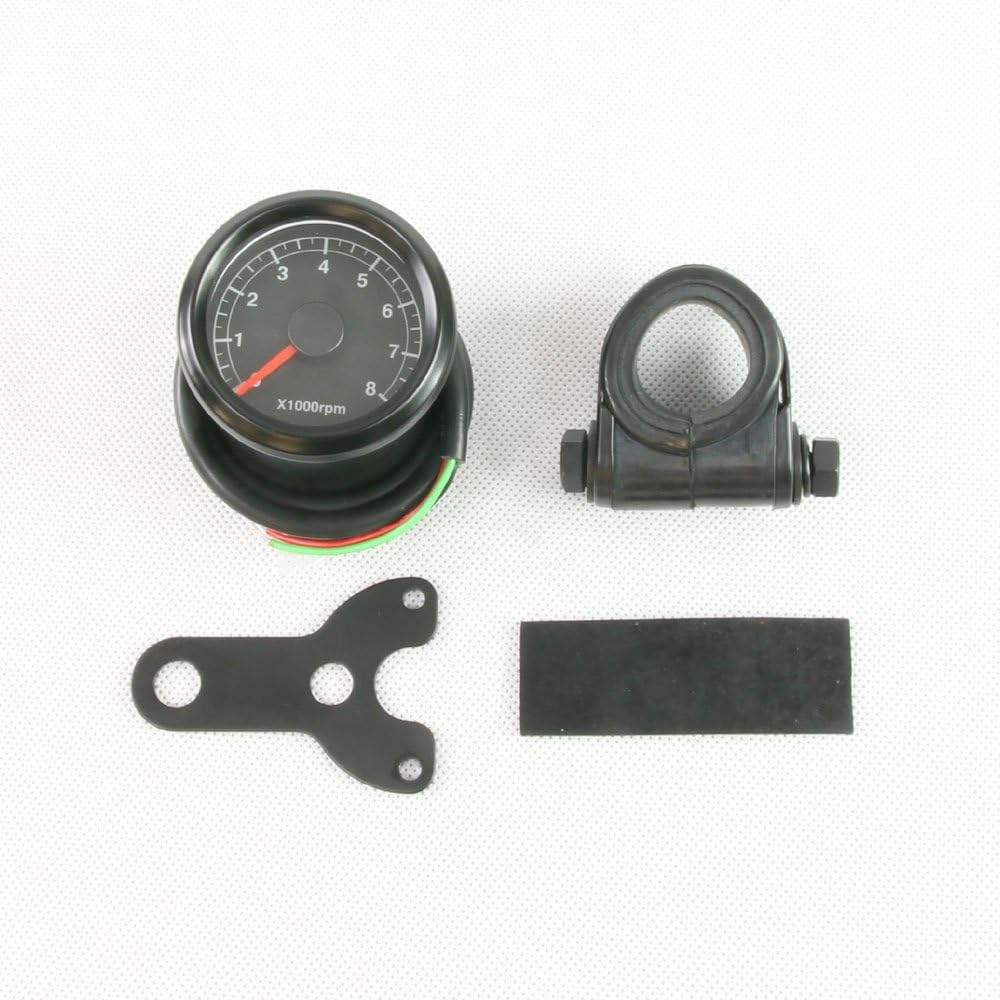

■Details■ [Product Details] Electric minimeter specifications Lighting: LED light display Display: RPM x 1000 (Mxa8000RPM) Voltage: 12V Size: Ф48 pi (diameter 48mm) Compatible engine: 4-stroke (4-cycle) 2-cylinder engine vehicle Included Item: V-shaped mounting stay, Japanese manual Others: Test diagnosis when ignition is ON (meter needle moves to max once) New, unused item. No manual or warranty. [Size] - Rim diameter: approx. 53mm - Body diameter: approx. 48mm - Depth: approx. 52mm - Wiring length: approx. 650mm *Please allow slight dimensional errors. [Wiring details] - Black: Earth (-) - Red: ACC power supply (DC 12v) - Green: RPM signal (pulse signal) ■Installation■ Compatible with a wide range of sizes. The clamp comes with two rubber sheets that can be adjusted depending on the diameter of the handle where it is installed. Mountable diameter: Maximum approximately 28.6 mm to minimum approximately 22.2 mm *Cannot be installed on vehicles with negative pulse ignition This is a vehicle in which only one wire (positive wire) is connected to the ignition coil, and the negative side is grounded to the body. . Some vehicles with weak pulses may not be compatible. ▼Video is being distributed as an installation image! ! Search for "Motorcycle electric 240km/h 60mm LED speedometer & tachometer with trip meter/black panel"! !


Manufacturer: ‎Rise Corporation
Brand: ‎Rise Corporation
Packing size: ‎11.9 x 11.4 x 10.3 cm; 282 g
Manufacturer reference: ‎T07Z9990011BK
Color : ‎Black
Product weight: ‎282 g
