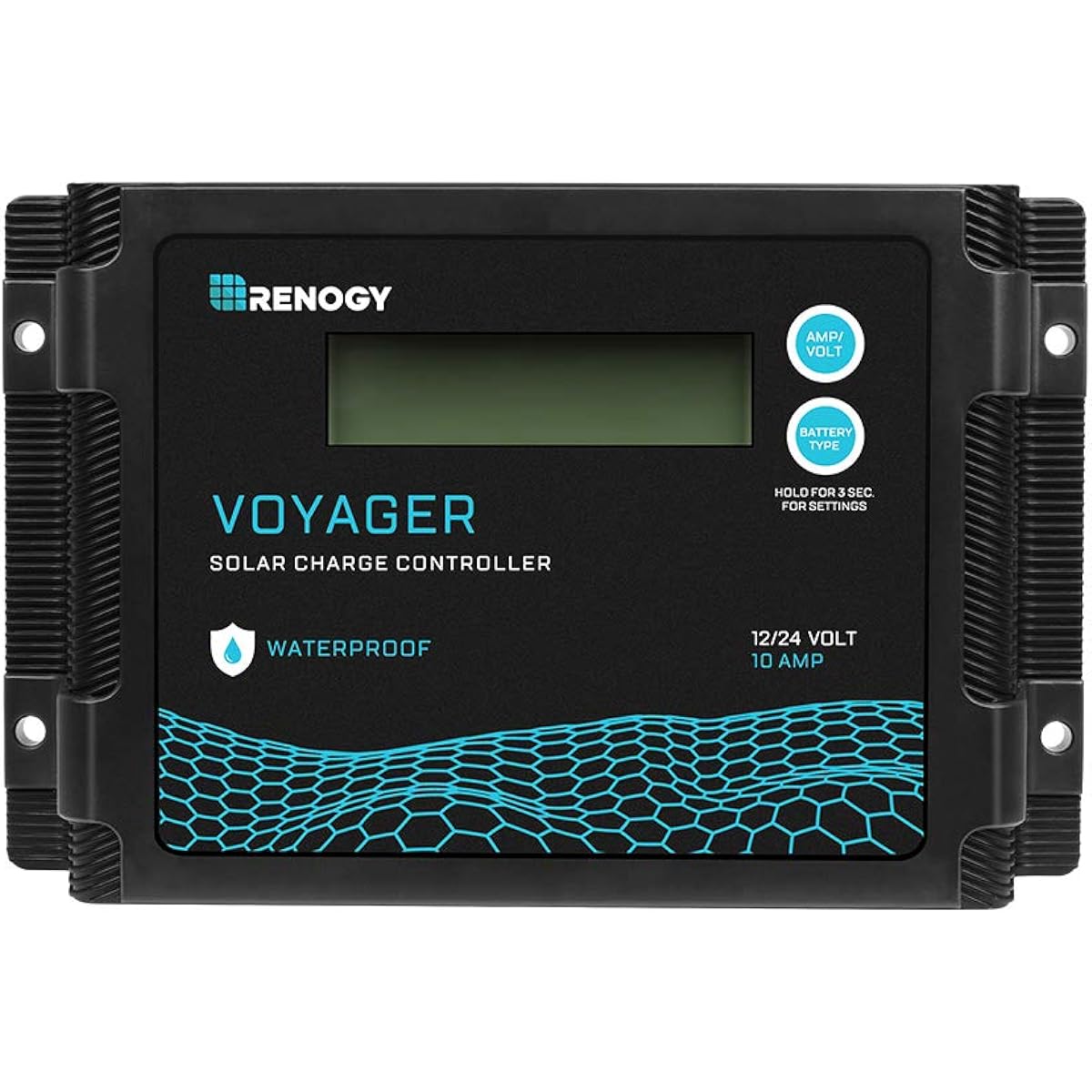

RENOGY PWM Solar Charge Controller 10A 12V/24V Compatible with Waterproof LCD Screen for Ships, Outdoors, Sleeping in the Car, Disaster Prevention, Earthquake Power Outage, Disaster Prevention Spare Parts, Sleeping in the Car [Japanese Instruction Manual

[Features] Waterproof charge controller, can be installed outdoors. Automatically recognizes 12V/24V systems. Equipped with high efficiency, smart PWM technology and lithium battery recovery function. [Charging current/input voltage/input power] The charging current is 10A, the maximum input voltage is 25V for a 12V system, and 55V for a 24V system, and the maximum input power is 130W for a 12V system and 260W for a 24V system. 【With LCD Screen】Equipped with an LCD screen that displays information such as charging current and battery voltage, and features an error code system to quickly diagnose potential faults. [Compatible with various battery types] Battery type display order and battery type: SLD - sealed lead acid battery ⇒ GEL - gel type battery ⇒ FLD - refillable battery ⇒ LI - lithium battery, default is GEL. Note: When connecting with a temperature sensor, the temperature displayed on the LCD screen is the battery temperature. If it is not connected to a temperature sensor, it will be displayed as 25℃. [Advantages of PWM charge controllers] PWM charge controllers can charge at a constant efficiency without being affected by the battery or voltage load, and are relatively cheaper than MPPT. However, charging efficiency is affected by weather conditions, so the amount of charge will be lower in cloudy or rainy weather.

RENOGY PWM 10A Charge Controller


Manufacturer: ‎Renogy
Part number: ‎RCC10VOYP-G1-JP-FBS
Product weight: ‎400 g
Package size: ‎19 x 14.8 x 6.2 cm; 400 g
Size: ‎10A waterproof
Amperage capacity: ‎10 amps
Accessories: ‎No
Battery usage: ‎No
