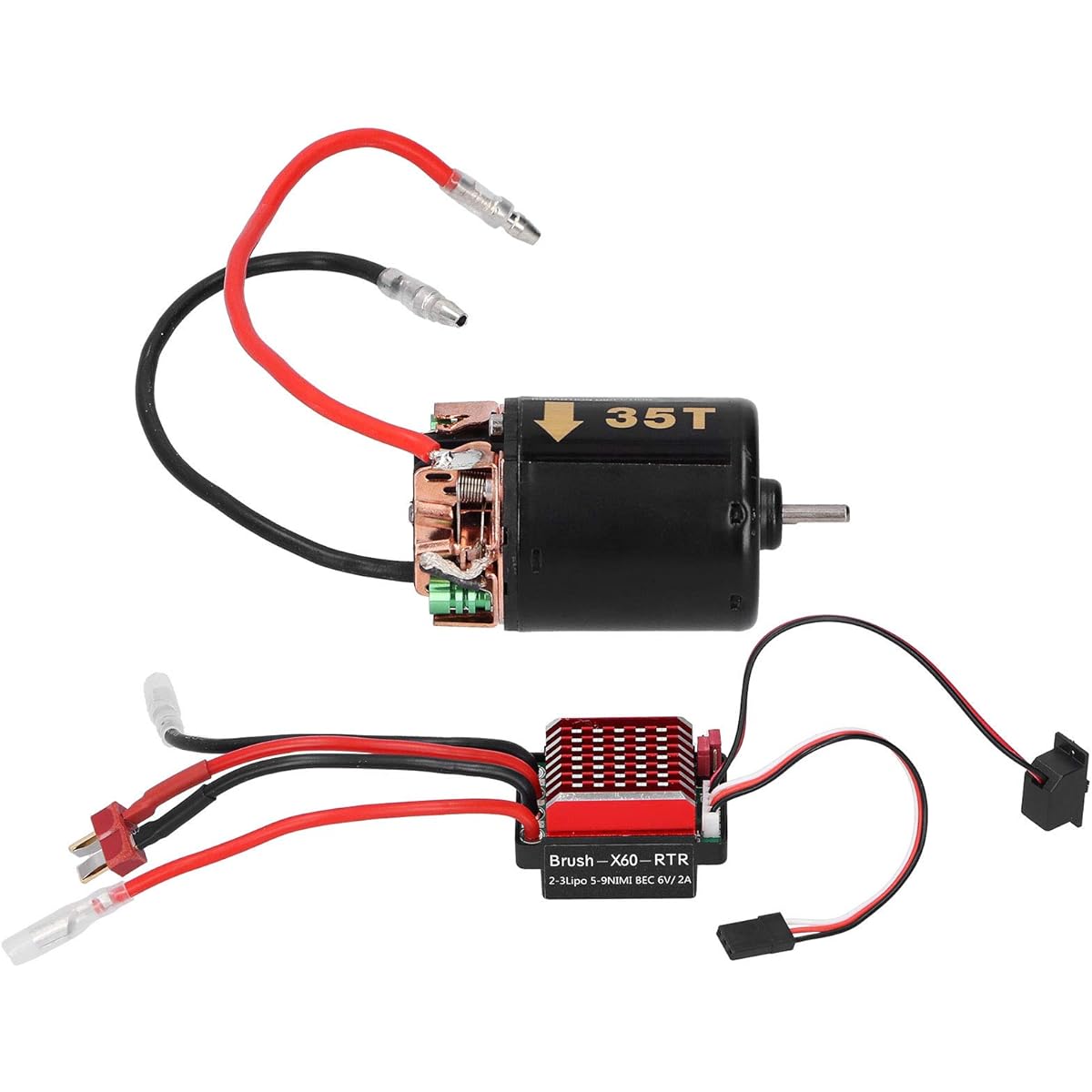

RC Motor ESC High Torsion 540 Brushed Motor 360A ESC with T Plug Accessories Tamiya 1/10 RC Car Model (35T)

540 brushed motor, high torsion, strong magnetic force with 2-way bearing. Direct wire solder terminals are easy to use with flexible welding options. The rotor is precisely balanced with smoothness to maximize reliability and maximum revolutions/minutes/minutes. Carbon brushes are durable and replaceable. Lithium battery is designed with low voltage protection, high temperature protection, throttle signal loss protection and other multiple protection functions. This product does not have a protection function for reverse connection of ESC. Please pay special attention to the battery polarity when using, as a reverse connection of the power supply may instantly reverse the ESC and battery. If the motor steering is wrong, please switch the two motor lines. The motor line is not separated into positive and negative poles.

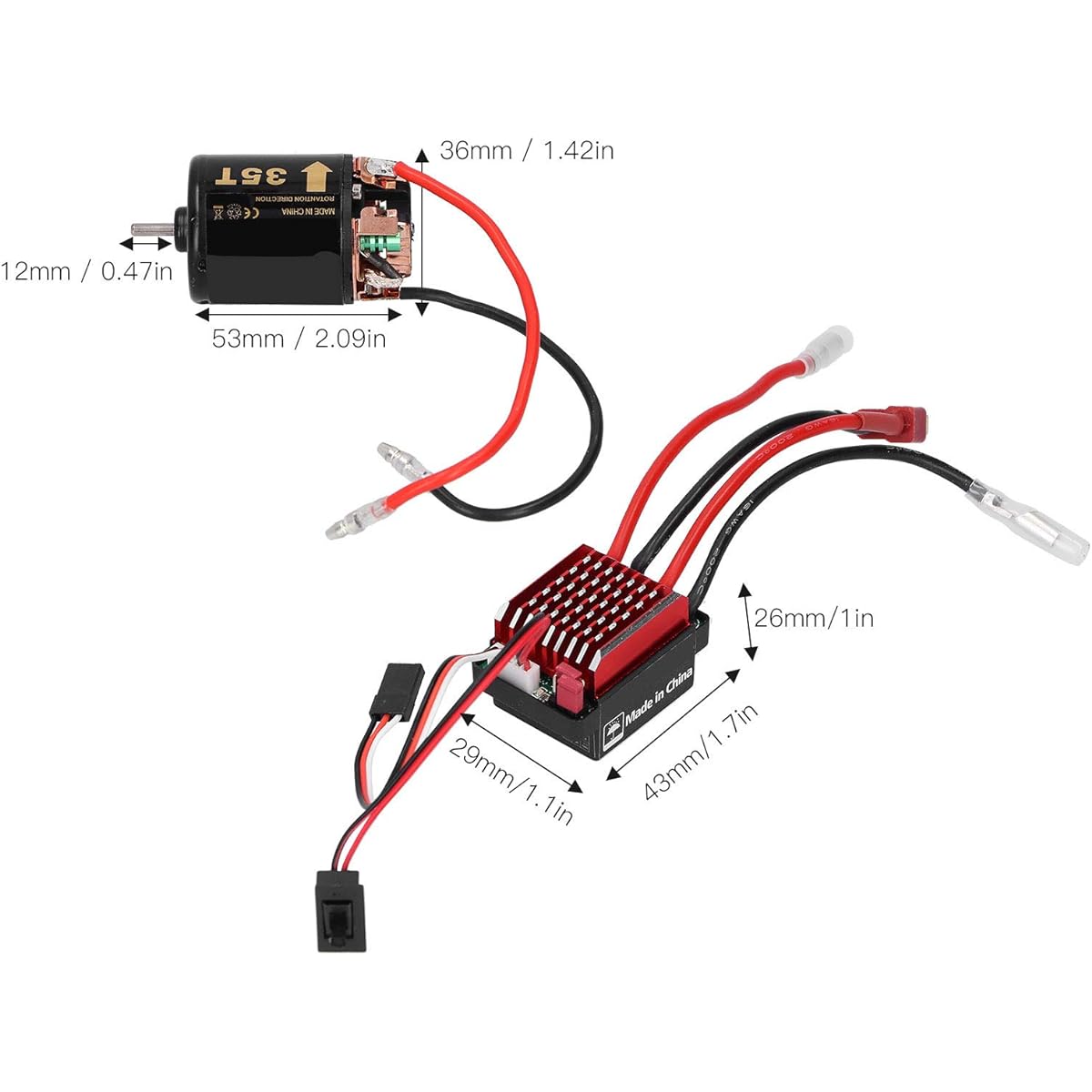

Specifications: Condition: New. Item Type: RC Motor ESC. Material: Aluminum alloy + plastic + metal. Color: Black Red Motor: Length: Approx. 53mm / 2.09inch. Diameter: Approx. 36mm / 1.42inch. Axle length: approx. 12mm / 0.47inch. Axle diameter: approx. 3.17mm / 0.12in. Working voltage: 7.2~7.4V. Maximum voltage: 12V. Voltage 7.2V No-load speed: 35T 12000RPM / 45T 10000RPM / 55T 8000RPM (performed after 1 minute test). ESC model: Brush-X60. Plug: T plug. Forward continuous current/maximum current: 60A/360A Reverse continuous current/maximum current: 30A/180A Voltage range: 2-3S Lipo or 5-9 NiMH. Engine Limit: 2S Lipo or 6 NiMH: 540 or 550 Motor Size: 12T or RPM<3000@7.2V. 3S Lipo or 9 NiMH: 540 or 550 Motor Size: 18T or RPM<20000@ 7.2V Resistance: Fwd0.001 2, Rev0.002 BEC Output: 2A/6V (Linear Regulator Switch) Size: Approx. 43 x 29 x 26mm / 1.7 x 1.1 x 1 inch. Running model: Two-way/climbing Applicable vehicles: 1/10 RV, SUV, short course truck, truck, climbing truck, tank, etc. Compatible models: Compatible with HSP. Compatible with Red Cat. Compatible with Traxxas. Fits Tamiya. Compatible with hpi. Fits axially. Package contents: 1 x 540 brushed motor. 1 x 360A ESC Instruction manual x 1


Manufacturer: ‎Drfeify
Part number: ‎Drfeifyv7rbecg0iy1108-11
Item weight: ‎227 g
Product size: ‎1 x 1 x 1 cm; 227 g< br>Size: ‎Free Size
Color: ‎35??
Material: ‎Aluminium, Metal, Plastic.
Voltage: 12 Volts
Quantity: 1
Speed: 12000 revolutions per minute
Batteries included: No
Batteries used: No
Product dimensions (length) (dimensions x width x height): 10 x 10 x 10 mm
