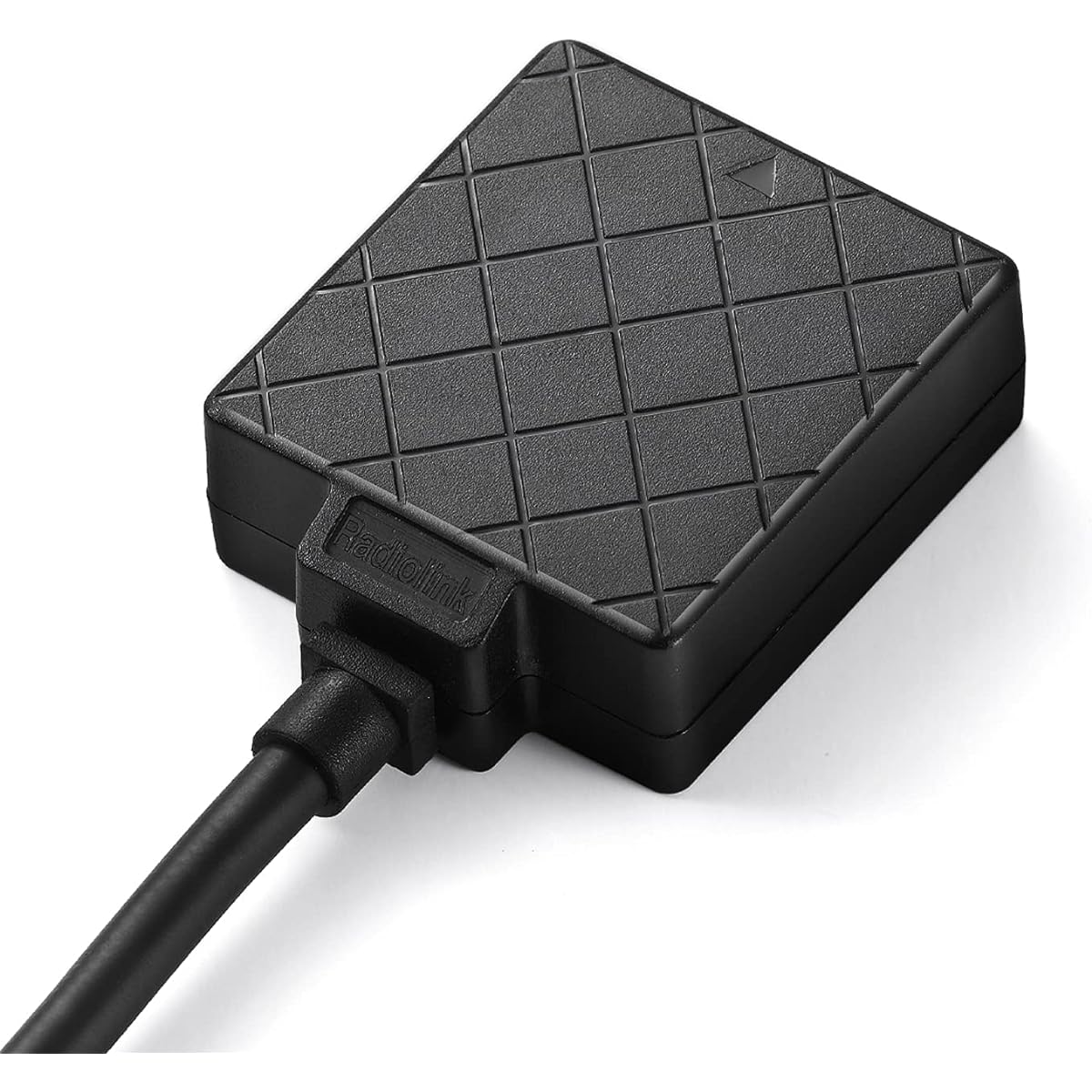

Radiolink M10N TS100 GPS Compass Module High Positioning Accuracy Flight Controller for DIY RC Drone FPV
Radiolink M10N TS100 GPS Compass Module High Positioning Accuracy Flight Controller for DIY RC Drone FPV
Regular price
$122.00 USD
Regular price
Sale price
$122.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
High positioning accuracy: With a positioning distance of about 50 centimeters, you can search for 20 satellites within seconds in open areas. Interference cancellation and anti-interference: Two-stage filtering with 78db attenuation effectively filters out-of-band interference. In-band input 1dB compression point -3dBm High linear LNA can minimize the effects of small amounts of interfering signals passing through the filter. Effectively withstand strong signal interference, such as high-power image transmission from drones and high-voltage lines. Excellent performance: 50cm positioning accuracy, deploying 20 satellites in 6 seconds in open ground, station keeping function even at the bottom of a valley. Supports multiple positioning systems GPS, GLONASS L10F, QZSS L1 C/A, BeiDou B1. Dual mode operation is possible. Top configuration: GPS decoder chip: Radiolink TS100, Ublox M10050 is much better than a single GNSS 7N. Built-in high precision electronic compass IST8310 (I2C port). Antenna: 2.5dbI high gain and selectivity ceramic chip antenna. [Double Filter] Two-stage SAWF (Surface Sound Wave Filter) from Murata Super mini size: only 1.25 x 1.2 x 0.46 inch, 20g (0.71 oz), 6 pin connector compatible with Radiolink mini pix, Crossflight flight controller. The connector can be replaced with other brands of flight controllers.

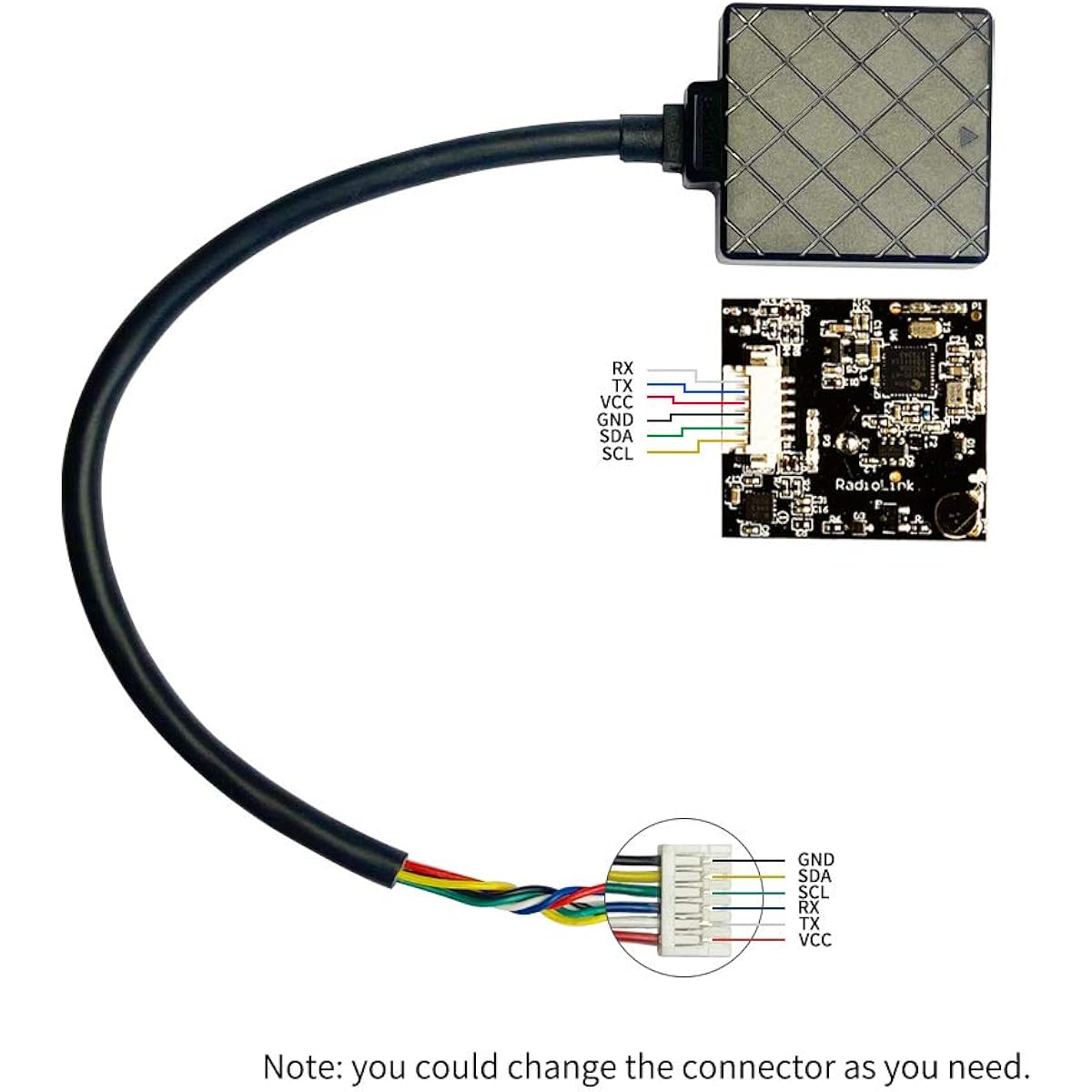

Radiolink is a high-tech manufacturing company dedicated to researching, manufacturing and marketing RC model radio transmitters. We are committed to providing customers with a high reliability and high performance product solution, as well as provide technical support and friendly after sales services. Specifications: Speed accuracy: 0.1m/s. Maximum height: 50km Maximum speed: 515m/s. Maximum acceleration: 4G Maximum update rate: up to 10Hz. Sensitivity Tracking & Navigation: -167dBm Reacquisition: -163dBm. Sensitivity cold start: -151dBm, hot start: -159dBm. Time to first fix: Cold start: 26 seconds, Hot start: 1 second Power supply: Voltage 5VDC +-5%. Current: 50~55mA Protocol: NMEA. Port: A.GPS UART interface, baud rate: 1.2K/4.8K/9.6K/19.2K/38.4K/57.6K/112.5K. B.Geomagnetic I2C interface Package contents: M8N TS100 GPS x 1
Screen size: 1.26 inches
Compatible models: Flight controller
Map type: Street
Radiolink is a high-tech manufacturing company dedicated to researching, manufacturing and marketing RC model radio transmitters. We are committed to providing customers with a high reliability and high performance product solution, as well as provide technical support and friendly after sales services. Specifications: Speed accuracy: 0.1m/s. Maximum height: 50km Maximum speed: 515m/s. Maximum acceleration: 4G Maximum update rate: up to 10Hz. Sensitivity Tracking & Navigation: -167dBm Reacquisition: -163dBm. Sensitivity cold start: -151dBm, hot start: -159dBm. Time to first fix: Cold start: 26 seconds, Hot start: 1 second Power supply: Voltage 5VDC +-5%. Current: 50~55mA Protocol: NMEA. Port: A.GPS UART interface, baud rate: 1.2K/4.8K/9.6K/19.2K/38.4K/57.6K/112.5K. B.Geomagnetic I2C interface Package contents: M8N TS100 GPS x 1
Screen size: 1.26 inches
Compatible models: Flight controller
Map type: Street
