Racing bread hard bar kit length 20 inches 3/4 4130 chromoly wedge tube

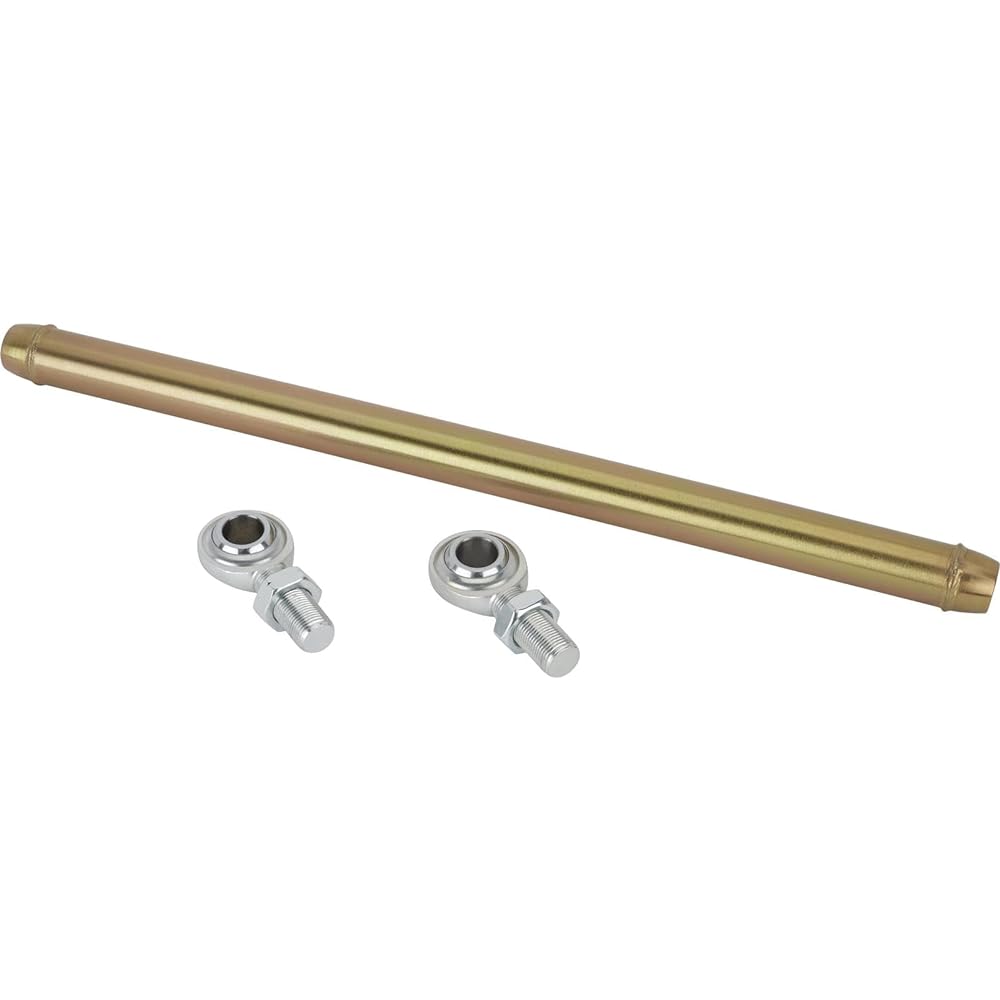

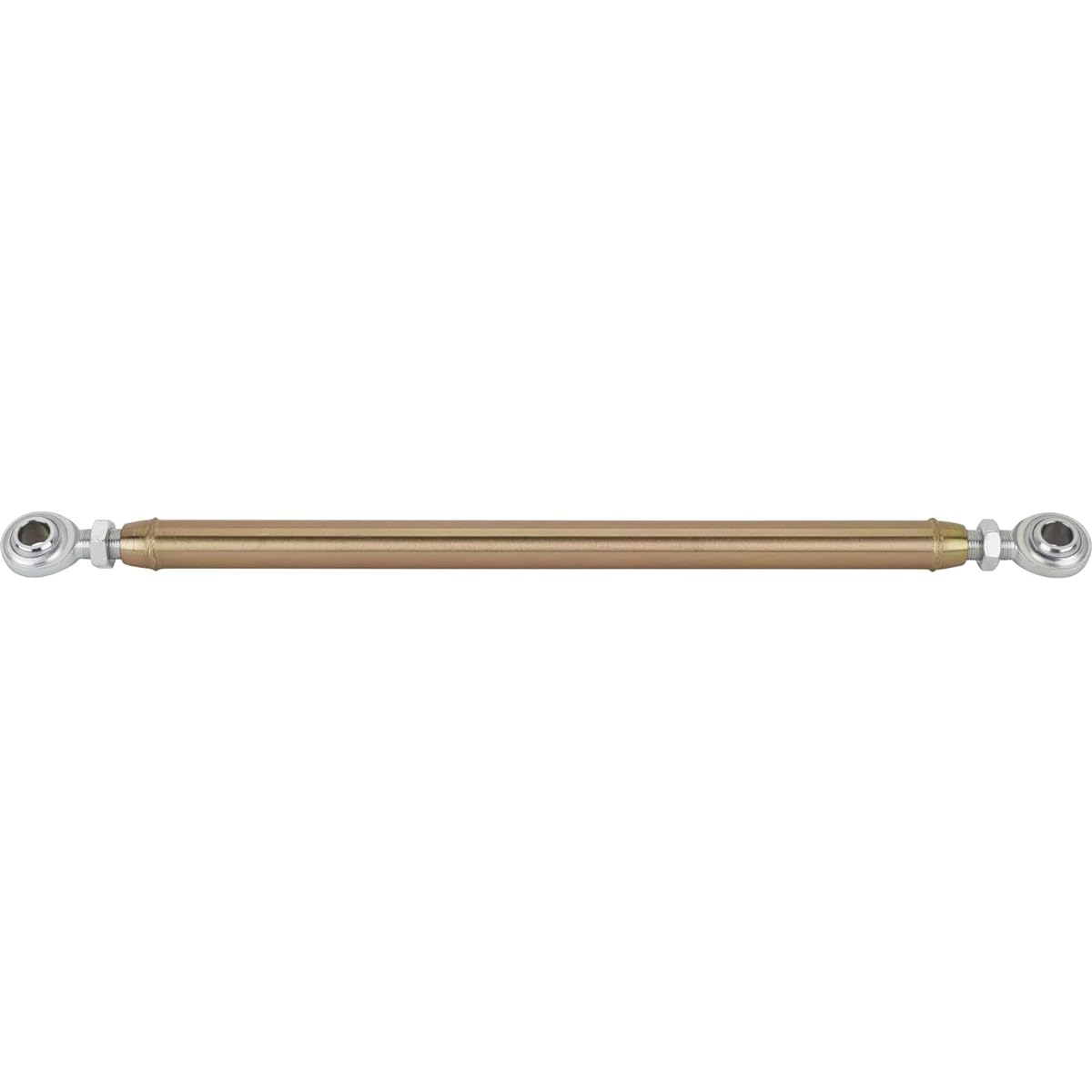

This Panhard bar kit comes with everything you need to assemble a Panhard bar for your IMCA Modified or Sport Mod. 0.58" thick 1-1/8" outside diameter chromoly tubing for maximum strength. 3/4"-16 RH thread on one end and LH thread on the other end allows you to adjust the length of the assembly by rotating the tube. 3/4" 2-piece carbon steel rod end and hardened steel ball are metal-to-metal contact to reduce tilt in high-load applications. Tube lengths range from 9" to 37".

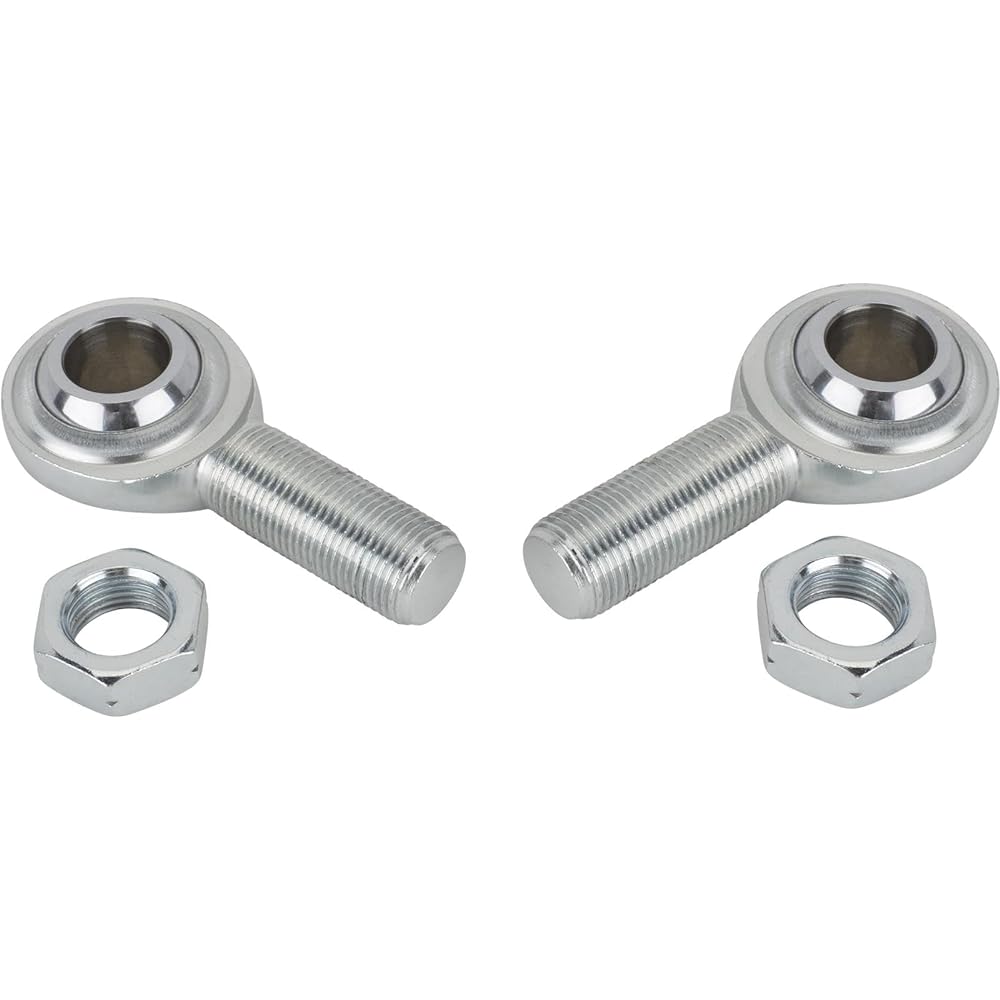

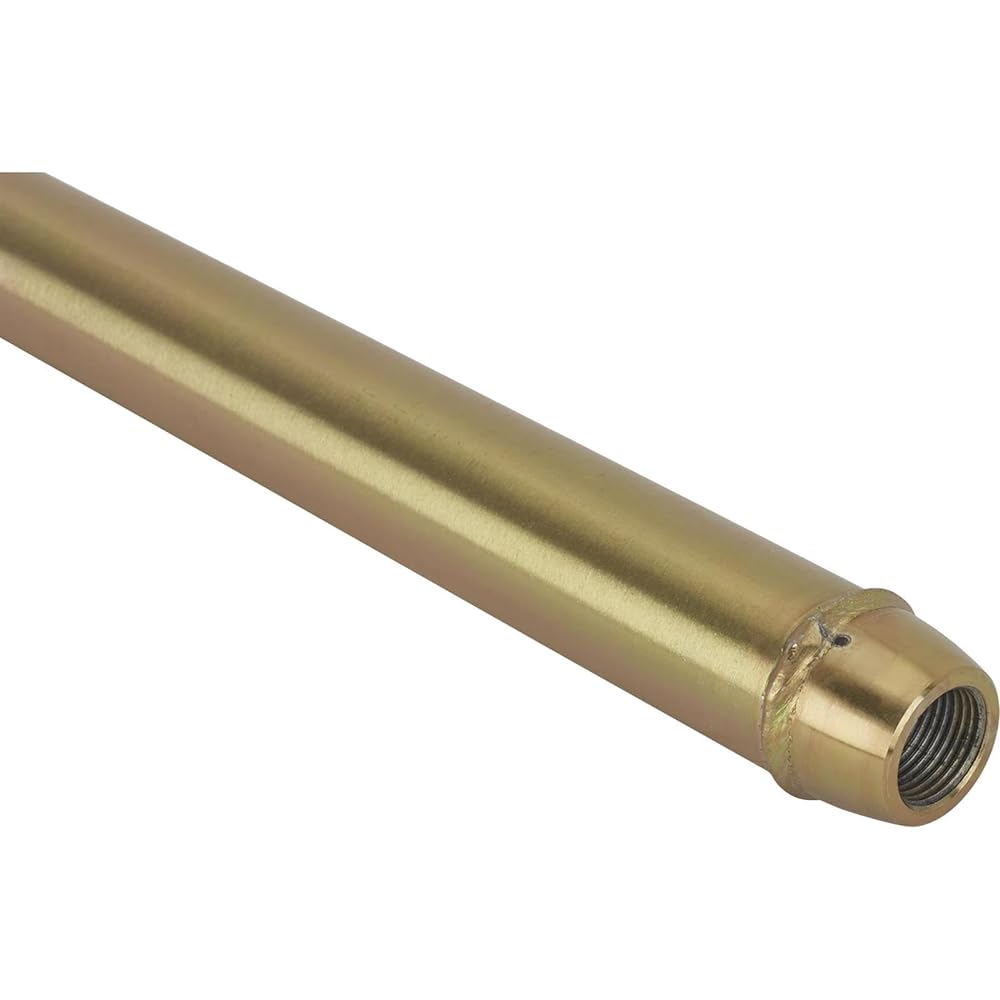

Speedway 3/4" 4130 chromoly wedge tube. 1-1/8" outside diameter, 0.58" wall. (2) 3/4" two-piece carbon steel rod ends with jam nuts. IMCA minimum length requirements from 9" to 37": Northern Sport Mod = 23" (center to center) IMCA Modification = 19" (center to center) Note: "Length" refers to the length of the tube. When choosing the length of tubing to compensate for the heim end, subtract 4 inches from the desired working or "eye-to-eye" length. This places the bar in the center of the entire adjustment range. For example, if you need a 25-inch eye-to-eye working length, you'll need a 21-inch tube length.


Manufacturer: ‎Speedway Motors
Brand: ‎Speedway Motors
Model Name: ‎Speedway Motors
Manufacturer Reference: ‎91045511-20
Product Weight: ‎ 1.36 kilograms
