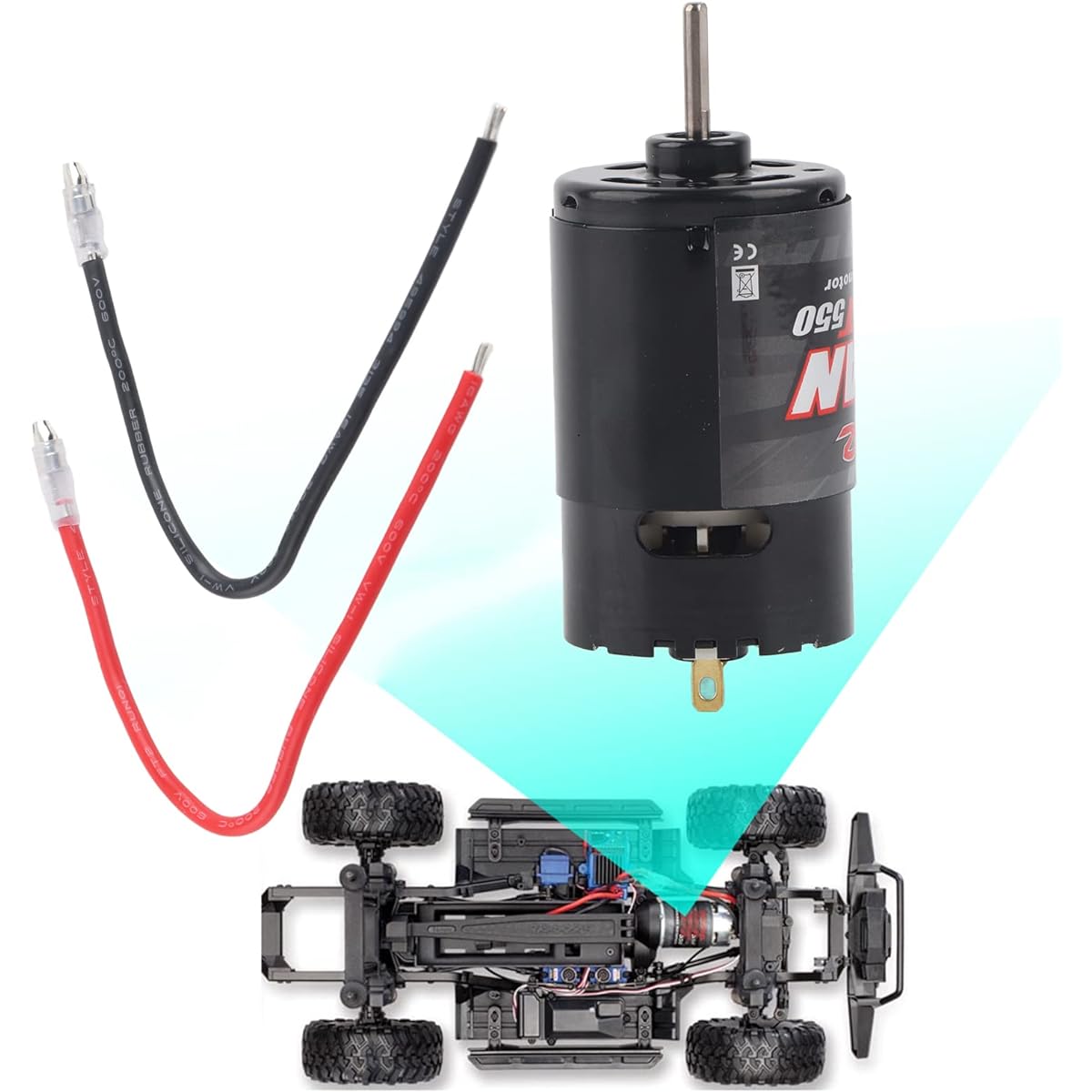

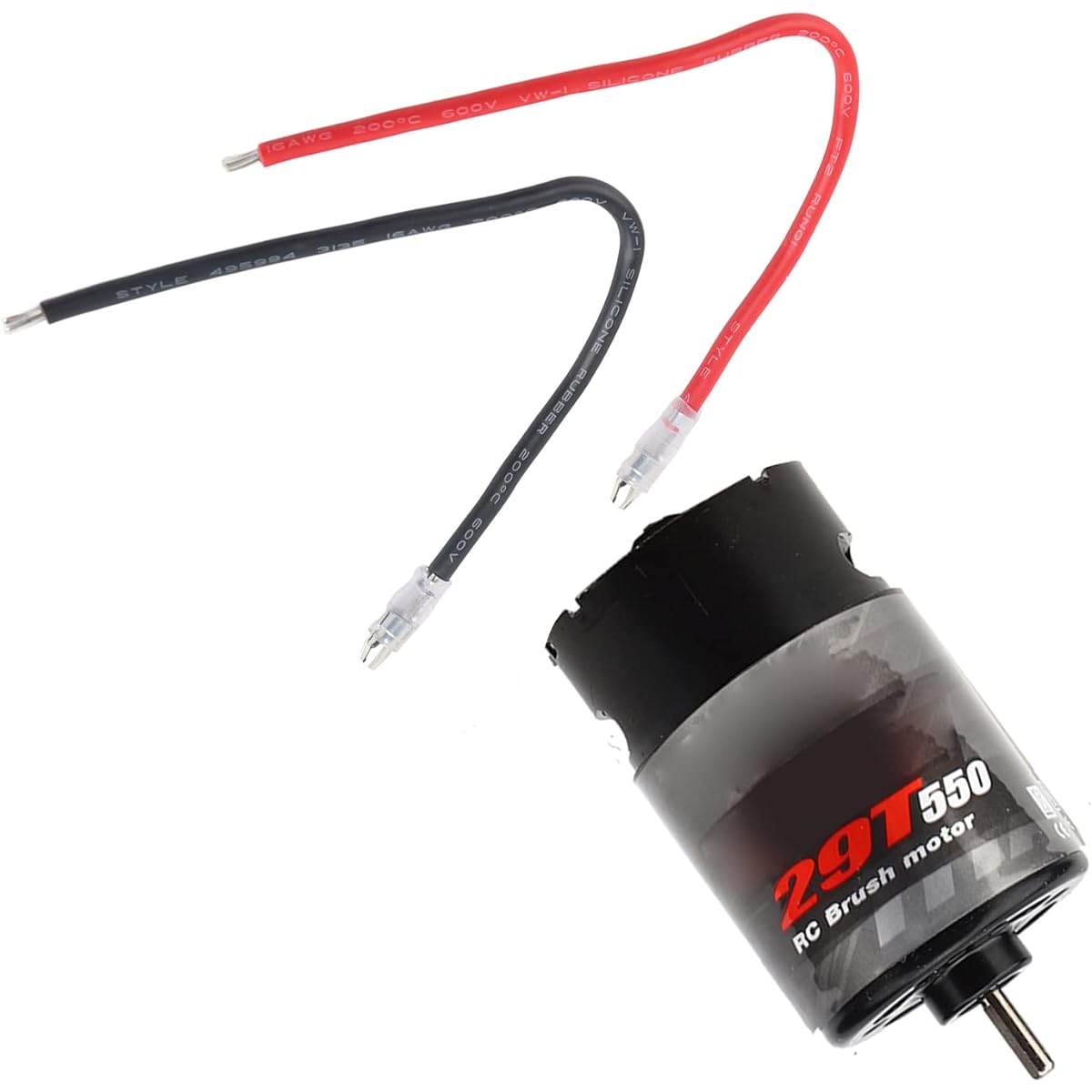

POCREATION Brushed Motor 12T 21T 29T 35T 550 High Precision Ball Bearing RC Brushed Motor Multi-Pole Winding High Accuracy Low Noise Motor for 4 RC Car Models (29T)

[Built-in cooling fan] The motor has a built-in cooling fan to help regulate the temperature during use. In addition, it has a demagnetizing sleeve on the outside to ensure optimal performance even during long-term use. [Strong torque and low-speed performance] The internal rotor of the brush motor uses multi-pole windings to provide strong torque and low-speed performance. Ordinary three-winding rotor motors have finer linearity and may not provide the same level of performance. [High precision & long life] The front of the motor adopts ball bearings, which are highly accurate and have a long life. The long oil bearing shaft in the tail section is low noise and has a long life. [Wide range of options] There are four types of brush motors to meet various needs. This means that users can choose the right motor according to their specific requirements. [High torque and low noise] The brush motor is a standard specification of 550 high torque and low noise, making it ideal for use in RC cars and boats. It runs quietly while providing excellent performance.

Specifications: Product type: Brush motor. Material: Metal Optional Type: 12T, 21T, 29T, 35T Size: 550 Color: Black Axle Diameter: D-Axle 3.175mm Output Shaft Length: Approx. 15mm / 0.6inch Outer Diameter: Approx. 36mm / 1.4inch Body Length: Approx. 60mm / 2.4inch Mounting Hole Distance: Approx. 25mm / 1inch Screw Hole: Approx. 3mm / 0.1inch Fitment: Fit for 4 Series Car Models Fit for 6 Series Car Models 12T No Load Maximum Efficiency Maximum Output Power Rotor Block Current(A) 3 14.4 36.2 70 Efficiency(%) 73 51 Output Power(W) 78 137 RPM 22500 18600 112500 Torque(G.CM) 410 1190 2370 Voltage(V) 7.4V. Temperature -10℃~50℃ 21T. No load Maximum efficiency Maximum output power rotor block Current(A) 1 7 24.7 48.3 Efficiency(%) 77 49.5 Output power(W) 40 91 RPM 12900 11300 6450. Torque(G.CM) 350 1370 2730. Voltage(V) 7.4V. Temperature -10℃~50℃ 29T. No load Maximum efficiency Maximum output power rotor block Current(A) 1 6.3 20 39.1 Efficiency(%) 72.8 47.8 Output power(W) 34 71 RPM 10500 9050 5250. Torque(G.CM) 370 1320 2630 Voltage(V) 7.4V Temperature -10℃~50℃ 35T No Load Max Efficiency Max Output Power Rotor Block Current(A) 0.6 3.8 12.5 24.3 Efficiency(%) 76.1 49.7 Output Power(W) 22 46 RPM 7900 6830 3950 Torque(G.CM) 310 1130 2260 Voltage(V) 7.4V Temperature -10℃~50℃ Package List: 1 x Brushed Motor. 【Note】 1. Please allow 1-3mm error due to manual measurement. Thank you for your understanding. 2. Monitors are not calibrated same. Item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard. 3. The product wire is shipped without welding, splash proof, can not be immersed in water.


Manufacturer: POCREATION
Part Number: POCREATION71t8sfcry0-13
Item Weight: 226g
Package Size: 12 x 10 x 6cm; 226g
Size: 29T
Color: #913
Material: Metal
Voltage: 7.4V
Speed: 22900 RPM
Batteries Included: No
Battery Used: No
