Personal CAR parts Back-linked mirror lowering unit for Prius (~2011/11 early model) ZVW30 series exclusive harness included [TRVS] [T-02] RVSHN-A-TY02-003

1 year warranty for peace of mind! It is not made in China, but made in Japan with original PCP design and programming. This is a special package that includes a harness and installation manual for the Prius ZVW30 series (2011/11 early model). There is no need to disconnect the vehicle wiring. All you need to do is connect a few wires with the included electrotap. This gives you peace of mind when navigating through gutters and obstacles on narrow roads! Eliminate blind spots and easily back up without turning around!

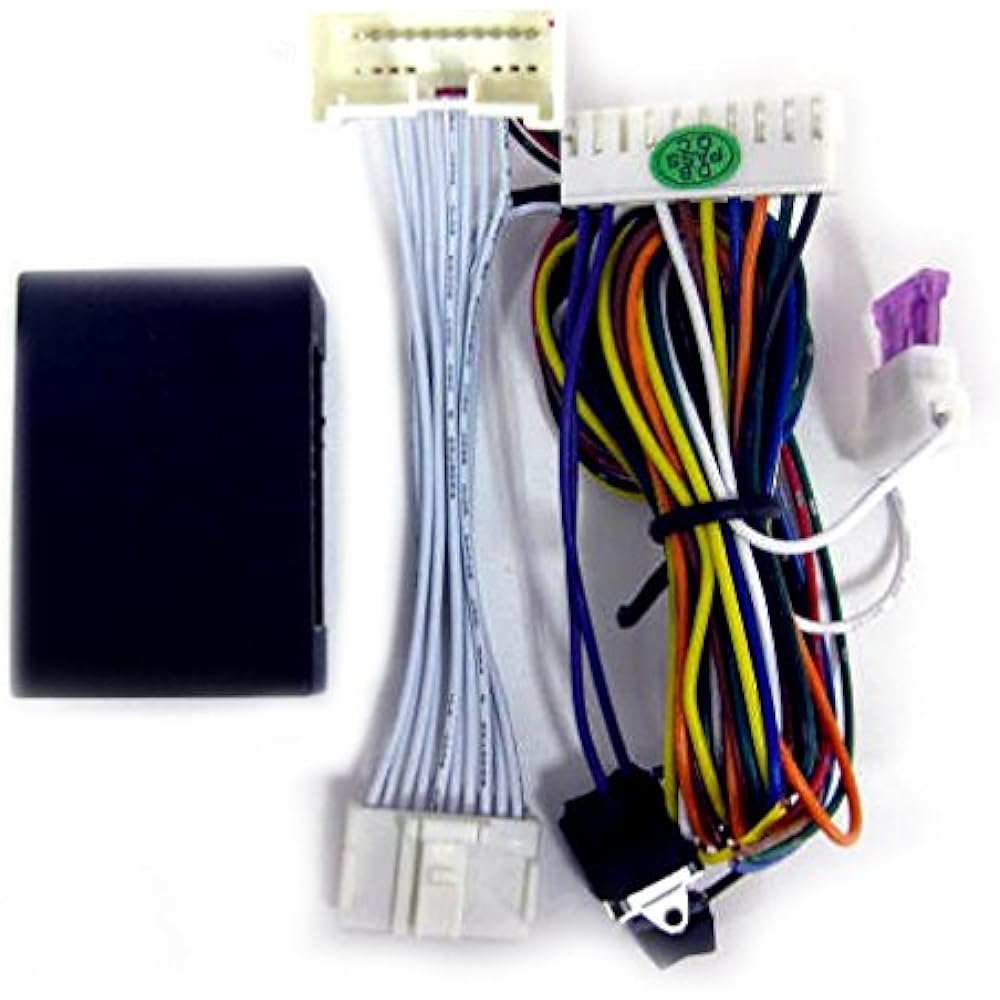

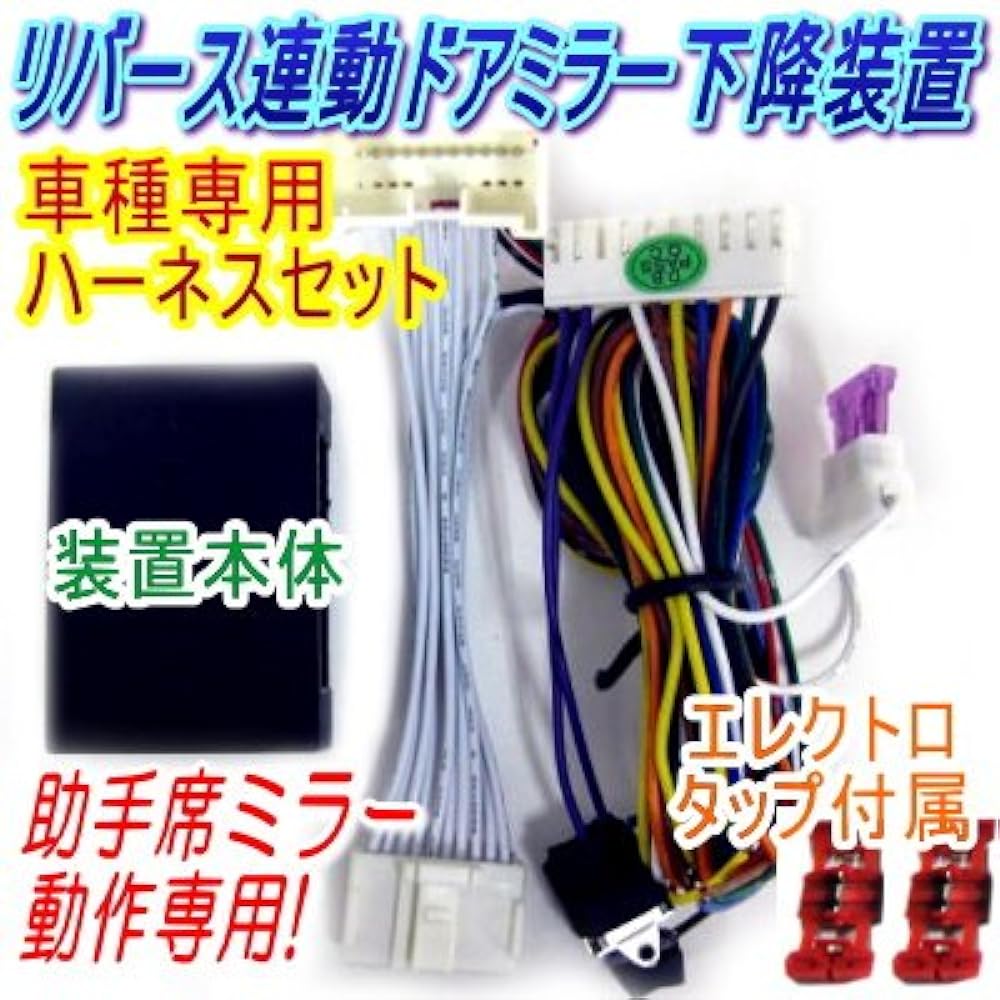

Comes with a dedicated harness for the Prius ZVW30 series (2011/11 early model), the device itself, and a dedicated installation manual. There is no troublesome cutting of vehicle wiring. Just connect the harness connection and a few wires with the included electro tap and you're done. This device automatically lowers the passenger side door mirror when reversing (backing up), allowing you to see the area around the left rear wheel. Of course, when reverse is released, it will automatically return to its original position. ◎When the gear is shifted to the reverse position for more than 1 second, the mirror will start lowering. ◎The mirror lowering angle can be changed freely (energizing angle from 0 to 2 seconds) ◎It is also possible to change only the mirror raising angle (mirror backlash countermeasure) ◎If you shift to a position other than reverse for more than 7 seconds Miller returns. This time can also be changed (1 second, 7 seconds, 10 seconds). ◎Equipped with a reset function, so you can easily return the setting value to the initial value. ◎When on standby, the device enters low power consumption mode. ◎The function can be disabled by stopping the power supply to this device. Even when disabled, the angle can still be adjusted using the vehicle side switch as before. ◎Changes to the set time will be memorized in the IC, so the settings will remain valid even when the function is restarted. ◎Safety has been improved by using wiring with a fuse for the main power line. ◎A manual with detailed installation instructions is included. [Disclaimer] (By purchasing this product, you are deemed to have understood and agreed to the following terms.) ■Our products are DIY products that are intended to be installed by the customer themselves. ■If you request a dealer or contractor to install the product, it is your own decision, so we cannot compensate for any labor or incidental costs related to installation, except in the case of significant product defects or installation by our company. When requesting installation, we strongly recommend that you thoroughly understand the work details and product characteristics of the installation contractor beforehand. [Agreement] (In any case, labor charges and other incidental costs related to installation are not covered by the product warranty) ○ When the product arrives, I request a contractor to install it without checking the contents, and the contractor informs me that it cannot be installed. If the vehicle is already in stock, so there will be a labor charge. ○ If you have asked a contractor to install it, but it doesn't work due to a defective product, but the work is required, so the labor charge will be incurred. If the product stops working, there will be a labor charge for checking for poor wiring connections, etc. A labor charge for removing the product to return it for confirmation. A labor charge for reinstalling the product. Parts costs for other processing and related expenses ○ Repair costs, parts costs, and other expenses due to scratches and damage caused when removing the interior ○ Device damage during and after product installation, vehicle damage ○ Shipping charges related to returning the product (excluding items that can be determined to be damaged during transportation, initial defects, etc.) In addition, under no circumstances will we be able to compensate for labor charges or incidental costs related to installation. By purchasing, you agree to the above. Caution (Disclaimer) > Please read carefully This product is a DIY installation product. Please read the installation instructions available on the Personal CAR Parts website before placing your order.


Manufacturer: ‎Personal CAR Parts
Brand: ‎Personal CAR Parts
Model Name: ‎RVSHN-A-TY02-003
Package Size: ‎18.1 x 11.9 x 3.8 cm; 158 g
Item model number: ‎RVSHN-A-TY02-003
Position: ‎Right, Left
Item weight: ‎158 g
