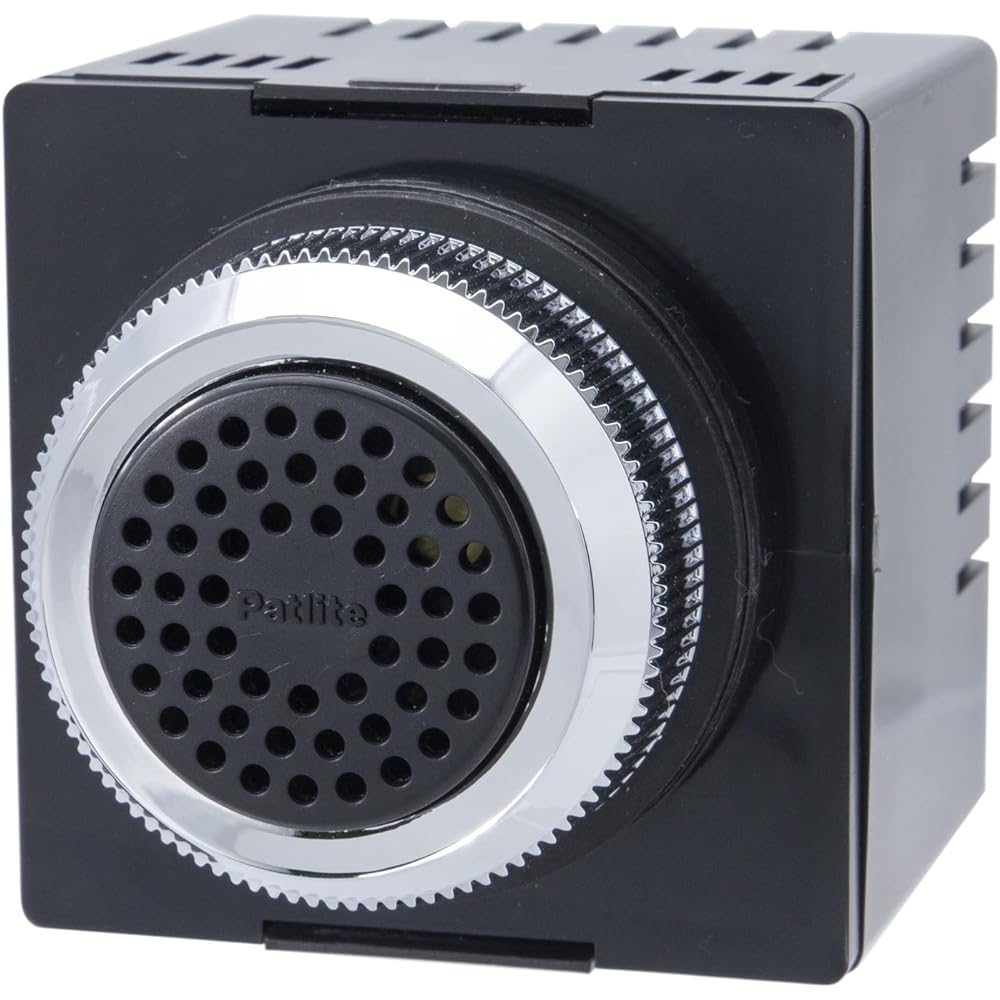

PATLITE electronic sound alarm signal phone BM-210H AC100V loud volume type

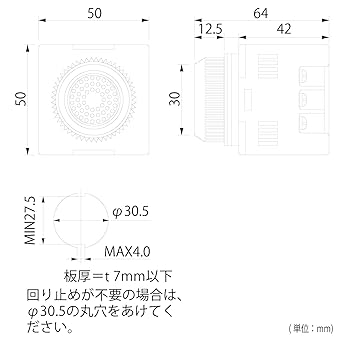

Loud volume type Rated voltage AC100V Tolerable voltage range Rated voltage ±10% Rated power consumption 2.5W Buzzer: Tone 1ch (beep) 2ch (beep beep.) Priority 1ch>2ch Sound pressure level Maximum 90dB/at 1m (no volume adjustment function) ) Mounting location: Indoors Mounting direction: Forward and reverse sideways possible Protection class: IP30 (front section only) Ambient operating temperature: -10~60℃ (85% or less, no condensation) Mounting plate thickness: 7 mm or less Mounting hole diameter: Φ30.5 mm
< br> Electronic sound alarm BM series ●Equipped with two easy-to-distinguish tones suitable for emergency notifications. CH 1: Beep beep CH 2: Beep beep.●Although it is ultra-small, it has a loud volume of 90dB (at 1m) (BM-H type). BM type is 85dB (at 1m), BM-D type is 80dB (at 1m) *24V specification is -5dB from the above ● Compatible with NPN/PNP transistor open collector, allowing direct drive by PLC etc. (24V specification) ●If there are two signal inputs at the same time, 1 channel will have priority. (bleeping sound) ●Small and lightweight type with a front diameter of 30 mm, depth of 42 mm, and weight of 100 g. ●For indoor use, this is an embedded type that can be installed on panels with a board thickness of 7 mm or less (BM-D type: 5 mm or less). ●The drip-proof type is IP34 rated, so it can be used outdoors and in factories where there is a lot of moisture and dust. (Model BM-D) ●Can be operated by turning the power switch ON/OFF.


Manufacturer: PATLITE
Part number: BM-210H
Product weight: 70 g
Product size: 5 x 6.4 x 5 cm; 70 g
Discontinued by the manufacturer: ‎No
Size: ‎Loud volume/90dB/AC100V
Color: ‎Black
Material: ‎Nitrile rubber (NBR), ABS resin
br>Shape: ‎Round
Power supply type: ‎AC
Voltage: ‎100 Volts (AC)
Accessories: ‎Instruction manual
Battery usage: ‎No
Product dimensions (length) (dimensions x width x height): 50 x 64 x 50 mm
