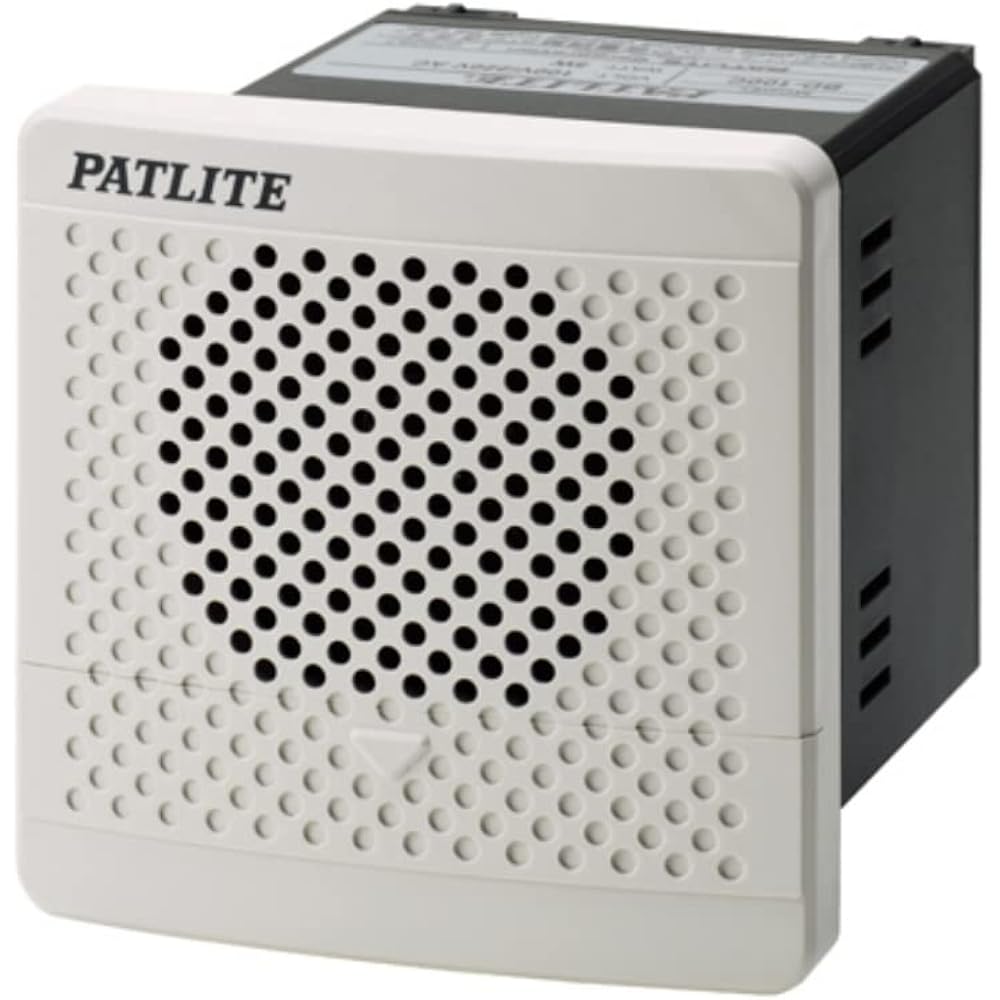

PATLITE electronic sound alarm signal phone BD-100AA-J AC100V/AC220V □80mm Tone color A type Body color Light gray

■ One unit has 32 built-in tones. Embedded type with clear sound quality. Although it is compact, it has a maximum volume of 90dB (at 1m). ■ You can adjust the volume with the volume on the front of the main unit, set the tone with the tone group selection switch, and change the tone combination data with the card slot. ● Compatible with NPN transistor open collector, allowing direct drive by PLC, etc. Number of playback channels: Bit input 4 channels Sound pressure level Max. 90dB (at 1m) Volume adjustment Volume adjustment: Min. to Max. You can freely change the settings of the tone combination by using an SD card (SDV-2GP (sold separately)). External size Length 80 x Width 80 x Thickness 94.7mm Rated voltage AC100V/AC220V Rated power consumption Max. 5.0W/Standby 1.1W Weight 180g Protection class IP54 (Front part only when mounted on the front panel)

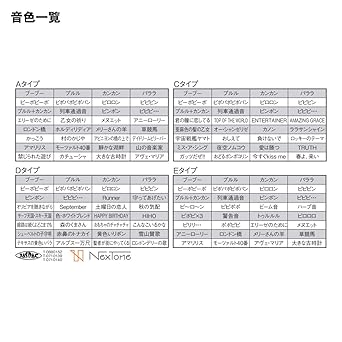

Product explanation Electronic sound alarm BD-100AA-J A type Light gray <> ``32 built-in tones in one unit. Embedded type with clear sound quality. 』●The SD card slot, tone group selection switch, and volume are located on the front for easy operation. ●The main body is a type exclusively for recessed installation. ●Compact yet high volume type with a maximum of 90dB (at 1m). The volume can be adjusted using the volume on the front panel. ●Tone group selection switch allows you to use 32 different tones.・You can play 4 tones (channels) using the bit input method by setting A to P. ●You can freely change the tone combination settings using the SD card. [Specifications] Rated voltage: AC100V/AC220V Rated power consumption: Maximum 5.0W / standby 1.1W Sound pressure level: Maximum 90dB or more Measurement conditions: Panel mounting, front direction from the center / at 1 m When playing Tone 05 (Pipo Pipo). The sound pressure level will change depending on the tone and usage environment. Signal input method - CH input: Level hold input (plays while the COM terminal and CH terminal are shorted) Bit input (when tone groups A to P are set) Number of playable tones: 4 CH priority: CH4 > CH3 > CH2 > CH1 Ambient operating temperature: -20°C to +55°C Ambient operating humidity: 85%RH or less, non-condensing Mounting direction/location: ・Forward direction: Indoor possible / Outdoor possible ・Reverse direction: Indoor possible / Outdoor possible・Horizontal Direction: Indoors possible / Outdoors possible * Mounting surface is vertical Protection class: IP54 (IEC 60529) Environmental conditions: When mounted on the panel in the forward direction, front section only [Body size] W80xH80xD94.7 mm [Mass (tolerance ±10%) ] 180g [Compliant standards] ・RoHS Directive (EN 50581) [Accessories] Instruction manual ・Mounting brackets (2 pieces) [Notes] CE marking compliant


Manufacturer: ‎PATLITE< br>Part number: ‎BD-100AA-J
Item weight: ‎180 g
Product size: ‎9.47 x 8 x 8 cm; 180 g
Color: ‎Light gray
Material: ‎Acrylonitrile butadiene styrene (ABS)
Power supply type: ‎Power cord type
Plug external shape: ‎Table top

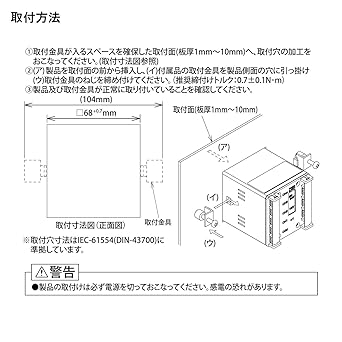

Accessories: ‎Instruction manual, additional instruction manual, 2 mounting brackets
Battery Usage: ‎No
Product dimensions (Length x Width x Height): ‎9.5 x 8 x 8 cm
