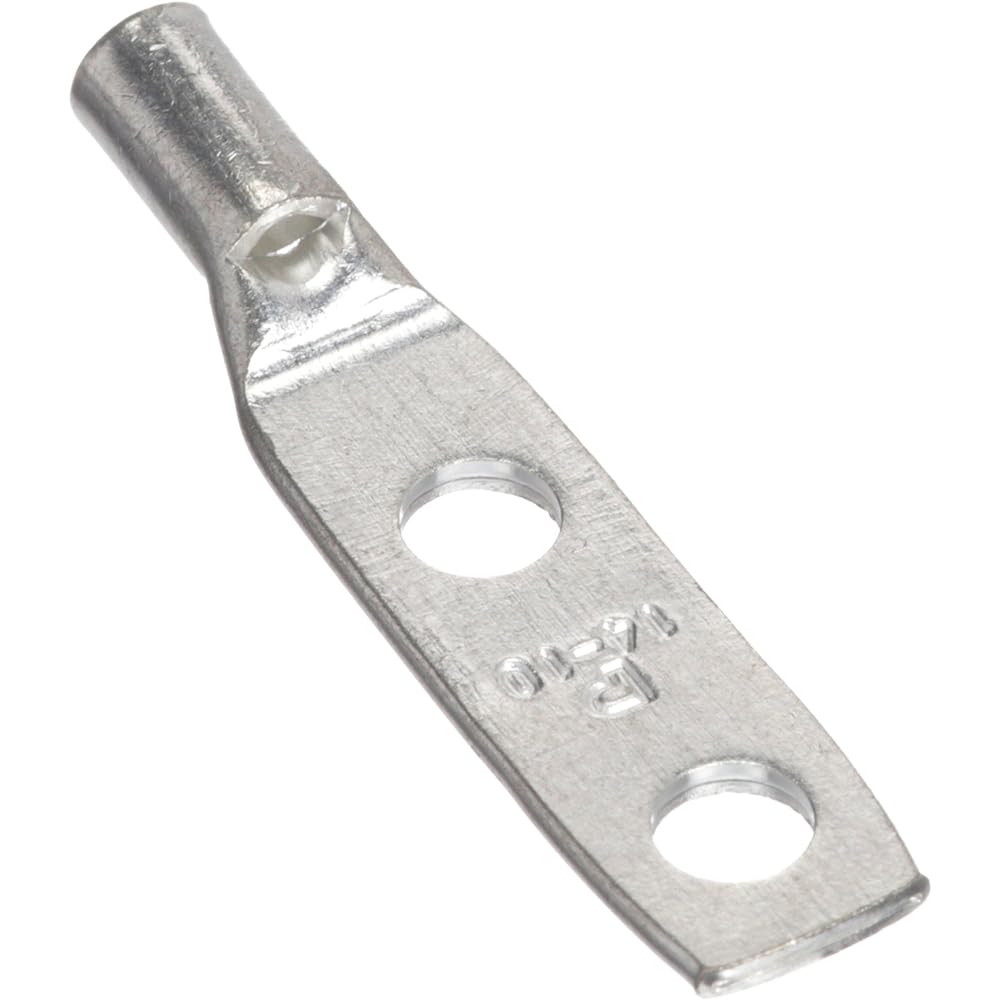

Panduit Domestic Genuine Copper Compression Terminal 2 Holes Standard Barrel with Hole for Confirming Wire Insertion AWG10 Mounting Hole 10.4mm Mounting Hole Spacing 25.4mm 50 Pieces LCD10-38D-L
Panduit Domestic Genuine Copper Compression Terminal 2 Holes Standard Barrel with Hole for Confirming Wire Insertion AWG10 Mounting Hole 10.4mm Mounting Hole Spacing 25.4mm 50 Pieces LCD10-38D-L
Regular price
$49.00 USD
Regular price
Sale price
$49.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
The barrel is color coded according to the applicable wire size and is engraved with the compression die number used. You can check whether the wire is completely inserted through the wire confirmation hole in the barrel. Tin plated to prevent corrosion. UL Listed and CSA certified product. However, this applies only when compressed using a Panduit compression tool and compression die in an environment of 90°C or lower and 35KV or lower. NEBS level 3 compliant (tested by Telcordia) ABS certified product
Material: Tin-plated copper Barrel angle: Straight Barrel: Standard barrel with hole for confirming wire insertion Mounting plate: Standard type Stranded wire Wire size: AWG14 – AWG10, Single wire Wire size: AWG12 – AWG10 Mounting hole size In. (mm): 3/ 8 (9.5) Mounting hole spacing In. (mm): 1 (25.4) Barrel length In. (mm): 0.38 (9.7) Length In (mm): 2.38 (60.5) Mounting plate thickness In. (mm): 0.04 (1)Mounting plate width In. (mm):0.56 (14.2)Identification color:—Die number:—Wire strip length In. (mm):7/17 (12.1)Burndy die number:—T&B die number: —ABS certified product CSA certification: C22.2 No. 65-13NEBS Level 3 (tested by Telcordia): Yes Tin plating: Conforms to ASTM B545-97, Class C: 320µ in (8µ m) UL Listed: 486A-486BUL , CSA certification Operating temperature: 90℃ or less UL, CSA certification Rated voltage: 35kV or less Product features: Please check with the cable manufacturer when using in applications exceeding 2000V. Technical information: Check with cable manufacturer when using in applications exceeding 2000V. RoHS Compliant Product
Manufacturer: PANDUIT Corporation
Part Number: LCD10-38D-L
Product Weight: 9.07 g
Product Size: 10 x 5 x 5 cm; 9.07 g
Discontinued by manufacturer: No
Size: 3/8-Inch Stud Hole, 1-Inch Hole Spacing
Style: #10 AWG wire
Material: Tin-plated copper
Thickness: 0.04 inches
Accessories: None
Battery usage: No
Product dimensions (Length x Width x Height): 10 x 5 x 5 cm
Material: Tin-plated copper Barrel angle: Straight Barrel: Standard barrel with hole for confirming wire insertion Mounting plate: Standard type Stranded wire Wire size: AWG14 – AWG10, Single wire Wire size: AWG12 – AWG10 Mounting hole size In. (mm): 3/ 8 (9.5) Mounting hole spacing In. (mm): 1 (25.4) Barrel length In. (mm): 0.38 (9.7) Length In (mm): 2.38 (60.5) Mounting plate thickness In. (mm): 0.04 (1)Mounting plate width In. (mm):0.56 (14.2)Identification color:—Die number:—Wire strip length In. (mm):7/17 (12.1)Burndy die number:—T&B die number: —ABS certified product CSA certification: C22.2 No. 65-13NEBS Level 3 (tested by Telcordia): Yes Tin plating: Conforms to ASTM B545-97, Class C: 320µ in (8µ m) UL Listed: 486A-486BUL , CSA certification Operating temperature: 90℃ or less UL, CSA certification Rated voltage: 35kV or less Product features: Please check with the cable manufacturer when using in applications exceeding 2000V. Technical information: Check with cable manufacturer when using in applications exceeding 2000V. RoHS Compliant Product
Manufacturer: PANDUIT Corporation
Part Number: LCD10-38D-L
Product Weight: 9.07 g
Product Size: 10 x 5 x 5 cm; 9.07 g
Discontinued by manufacturer: No
Size: 3/8-Inch Stud Hole, 1-Inch Hole Spacing
Style: #10 AWG wire
Material: Tin-plated copper
Thickness: 0.04 inches
Accessories: None
Battery usage: No
Product dimensions (Length x Width x Height): 10 x 5 x 5 cm
