Panasonic Embedded Reverse Phase Dimmer Switch B SO-STYLE Rotary Type with Lower Limit Illuminance Setting Function Compatible LED Only 1.6A Matte Gray Width 44 x Depth 60 x Height 22.7mm WNS57511H
Panasonic Embedded Reverse Phase Dimmer Switch B SO-STYLE Rotary Type with Lower Limit Illuminance Setting Function Compatible LED Only 1.6A Matte Gray Width 44 x Depth 60 x Height 22.7mm WNS57511H
Regular price
$86.00 USD
Regular price
Sale price
$86.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Size: Width 44 x Depth 60 x Height 22.7mm / Color: Matte Gray Material: Assembly frame: Galvanized steel plate, Light guide plate: Polycarbonate, Decorative cover, Knob: ABS resin, Cover: PC/ABS resin, Body: Melamine phenol Contact method: Semiconductor method (transistor) Connection method: Screwless terminal method (wire insertion method) Circuit method: Single cut Rating: AC100V (50/60Hz) 160VA Compliant regulations: Electrical Appliance and Material Safety Law (Electrical Appliances and Materials) Compatible products: Wire: 600V vinyl insulated wire (IV), 600V vinyl insulated vinyl sheathed cable (VVF), 600V flame-resistant polyethylene insulated wire, 600V polyethylene cable: Diameter 1.6, 2mm Cu single wire only, Mounting frame: WNS3730, etc. SO-STYLE installation Frame series, plate: WNS6001H, etc. SO-STYLE plate series/Ambient operating temperature range: -10 to 40 degrees

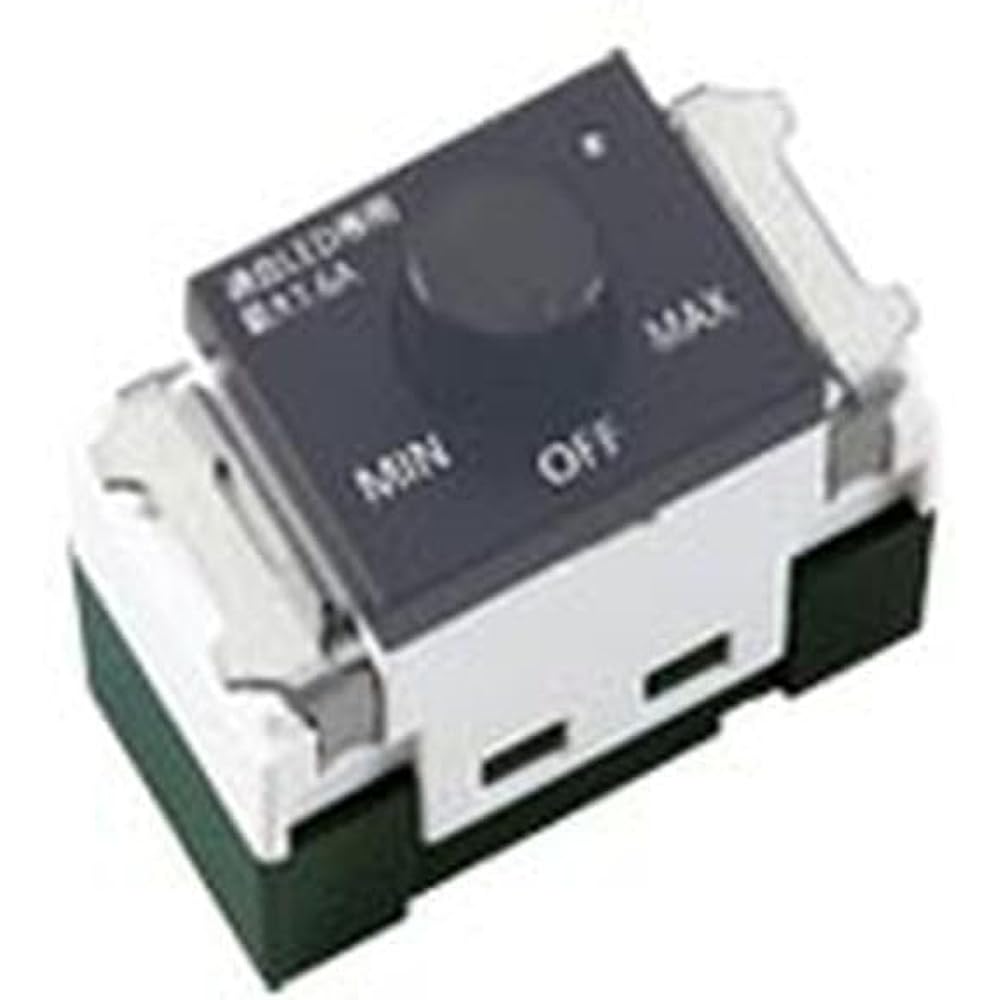

It is a built-in reverse phase dimmer switch. The light turns off when the knob is in the off position, and the brightness of the light can be changed by turning the knob. The surface has a matte finish (textured). Caution: Do not use stoves or electric heaters nearby. If heat is applied to the device, it may burn out and cause a fire. Do not use more than the wattage (capacity). It may generate heat and burn out, causing a fire. Do not use LED bulbs, lighting equipment, fluorescent lights (including light bulbs), etc. that are not compatible with dimmers. Using non-compatible lighting equipment may burn out and cause a fire. It may turn on momentarily when the power is restored. Depending on the LED lighting equipment or LED bulb, it may take some time for the light to turn on even after you turn on the switch. The brightness when dimmed varies depending on the LED lighting equipment and LED bulb. When operating the knob slowly, some LED bulbs may not dim smoothly. When dimming from the darkest position of the knob, the position of the knob that lights up may change depending on the LED lighting equipment or LED bulb. In that case, please adjust the lighting position using the lower limit illuminance setting button. If you use a hair dryer, air conditioner, microwave oven, etc. in a dark dimmed state, the light may turn off or the brightness may change due to voltage drop.
Brand: Panasonic
Product model number: WNS57511H
Product size: 6 x 4.4 x 2.27 cm; 40 g
Color: Gray
Voltage: 100 volts
Accessories: None
Bulb type: LED
Warranty: None
Usage: Plug-in
Product weight: 40 g
It is a built-in reverse phase dimmer switch. The light turns off when the knob is in the off position, and the brightness of the light can be changed by turning the knob. The surface has a matte finish (textured). Caution: Do not use stoves or electric heaters nearby. If heat is applied to the device, it may burn out and cause a fire. Do not use more than the wattage (capacity). It may generate heat and burn out, causing a fire. Do not use LED bulbs, lighting equipment, fluorescent lights (including light bulbs), etc. that are not compatible with dimmers. Using non-compatible lighting equipment may burn out and cause a fire. It may turn on momentarily when the power is restored. Depending on the LED lighting equipment or LED bulb, it may take some time for the light to turn on even after you turn on the switch. The brightness when dimmed varies depending on the LED lighting equipment and LED bulb. When operating the knob slowly, some LED bulbs may not dim smoothly. When dimming from the darkest position of the knob, the position of the knob that lights up may change depending on the LED lighting equipment or LED bulb. In that case, please adjust the lighting position using the lower limit illuminance setting button. If you use a hair dryer, air conditioner, microwave oven, etc. in a dark dimmed state, the light may turn off or the brightness may change due to voltage drop.
Brand: Panasonic
Product model number: WNS57511H
Product size: 6 x 4.4 x 2.27 cm; 40 g
Color: Gray
Voltage: 100 volts
Accessories: None
Bulb type: LED
Warranty: None
Usage: Plug-in
Product weight: 40 g
