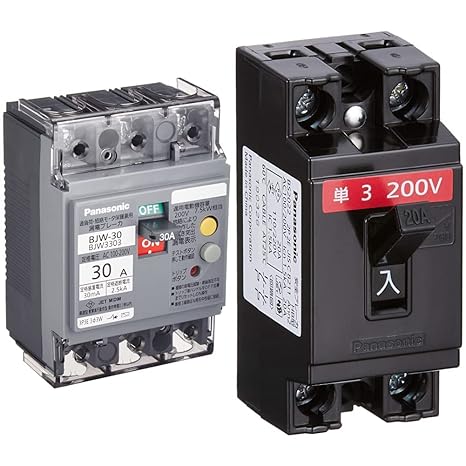

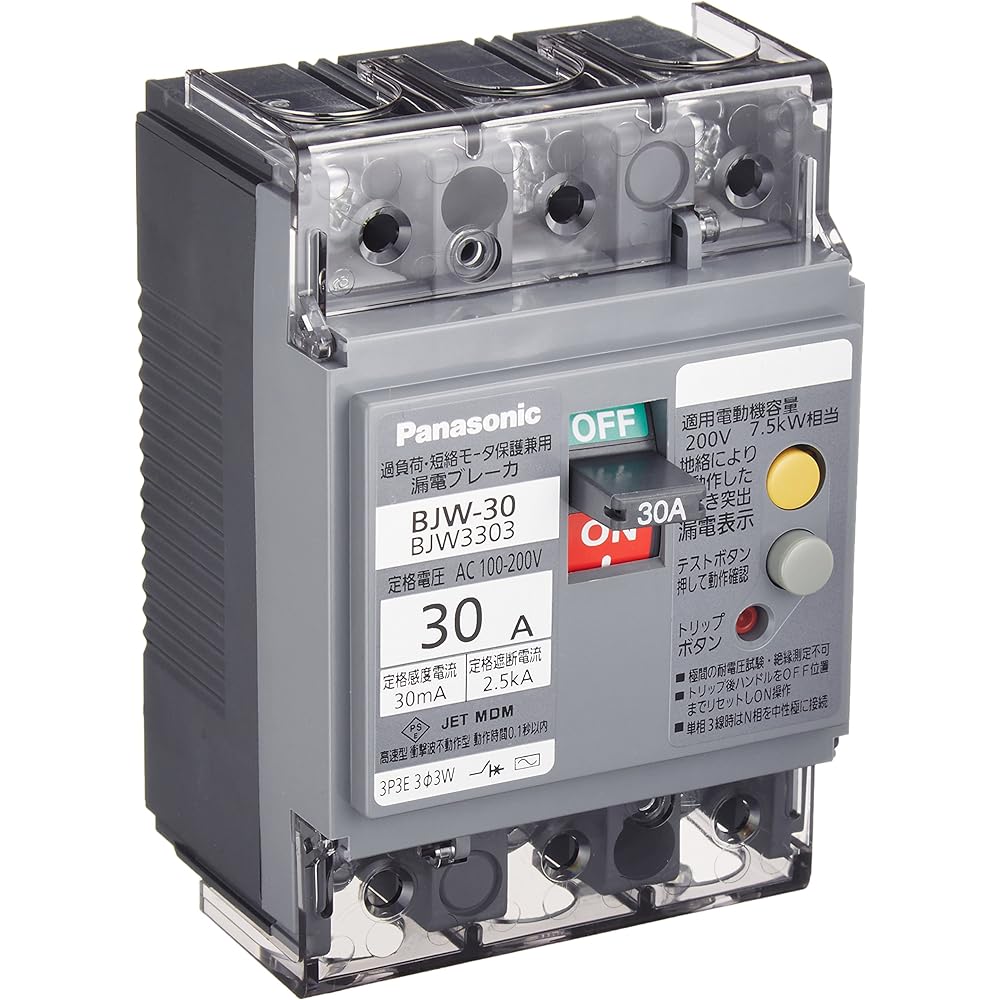

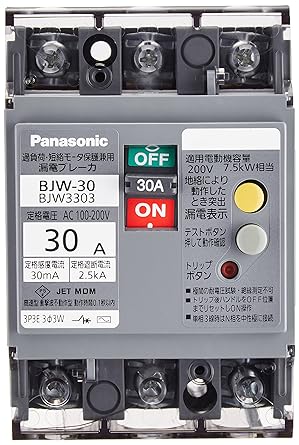

Panasonic Earth Leakage Breaker BJW-30 Type 3P3E with OC 30A 30mA Motor Protection BJW3303

Release date: June 22, 2004 Model name: BJW-30 Rated current: 30A Rated voltage/breaking capacity: For both AC100-200V 2.5kA Number of poles and elements: 3P3E

Type: Earth leakage breaker (also used for motor protection) Model name: BJW-30 Frame: 30AF Number of poles: 3P3E Rated current: 30A Motor capacity: AC200V 7.5kW Earth leakage sensitivity current: 30mA Rated voltage/breaking capacity: AC100-200V Dual use 2.5kA Tripping method: Electromagnetic External dimensions (mm): H96 (106 including terminal cover) x W70 x D52 (67.6 including handle) Mass: 0.5kg Specifications: With terminal cover, lightning surge/harmonics (inverter, etc.) Compatible Type Caution


Manufacturer: ‎Panasonic
Part number: ‎BJW3303
>Product weight: 436 g
Product size: 5.2 x 7 x 9.6 cm; 436 g
Discontinued by manufacturer: No
Color: Black
Pattern: ‎Single item
Voltage: 200 volts
Accessories: ‎None
Batteries included: ‎No
Batteries used: ‎No
Product dimensions (Length x Width x Height): ‎ 5.2 x 7 x 9.6cm
