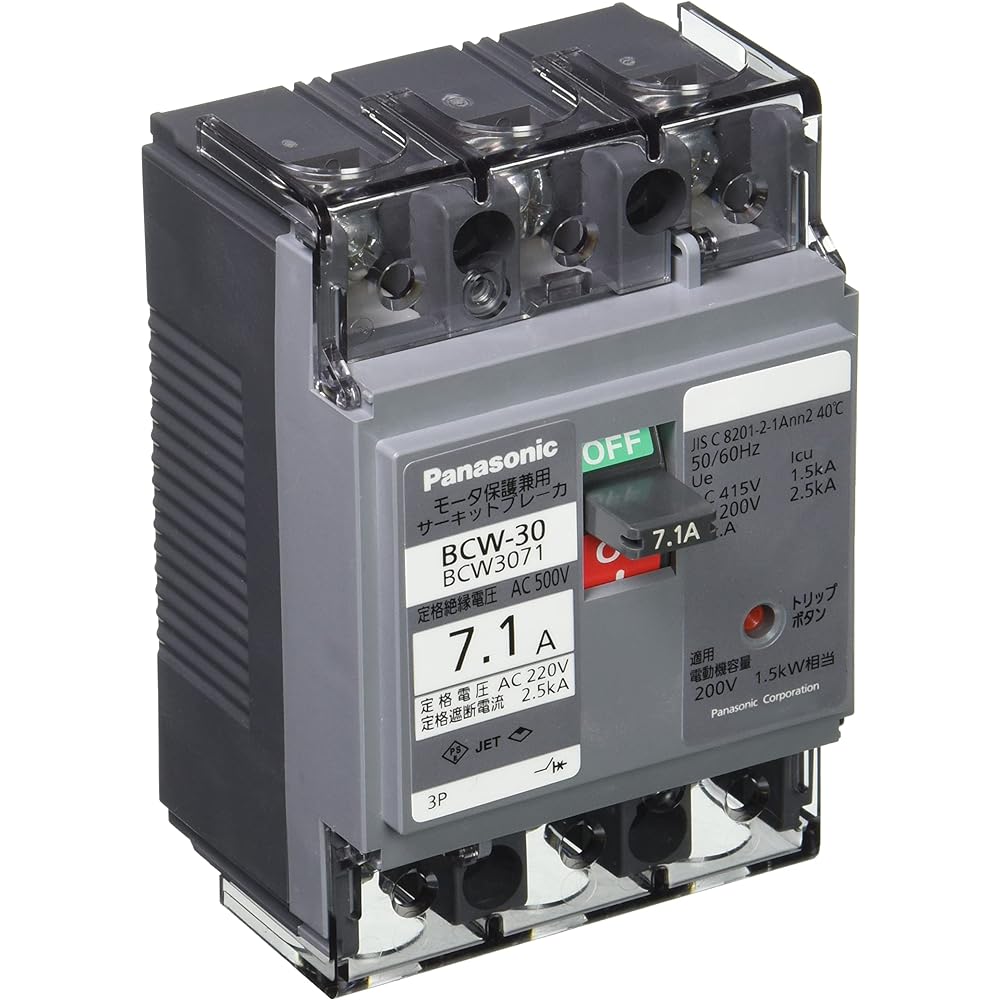

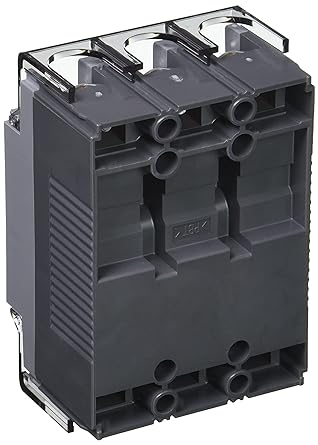

Panasonic Circuit Breaker Motor Protection BCW-30 3P 7.1A BCW3071
Panasonic Circuit Breaker Motor Protection BCW-30 3P 7.1A BCW3071
Regular price
$43.00 USD
Regular price
Sale price
$43.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Release date: June 21, 2004 Model name: BCW-30 Rated current: 7.1A Rated voltage/breaking capacity: AC100V 2.5kA, AC200V 2.5kA, AC415V 1.5kA Number of poles: 3P3E
< br> Type: Circuit breaker (also used for motor protection) Model name: BCW-30 Frame: 30AF Number of poles: 3P3E Rated current: 7.1A Motor capacity: AC200V 1.5kW Rated voltage/breaking capacity: AC100V 2.5kA, AC200V 2.5kA, AC415V 1.5kA Tripping method: Electromagnetic External dimensions (mm): H96 (106 including terminal cover) x W70 x D52 (67.6 including handle) Mass: 0.4kg Specifications: With terminal cover
Manufacturer: Panasonic
Part number: BCW3071
Item weight: 400 g
Product size: 5.2 x 7 x 9.6 cm; 400 g
Style: Rated current: 7.1A
Pattern: Single Item
Voltage: 200 Volts
Accessories: None
Battery Usage: No
Product Dimensions (Length x Width x Height): 5.2 x 7 x 9.6cm
< br> Type: Circuit breaker (also used for motor protection) Model name: BCW-30 Frame: 30AF Number of poles: 3P3E Rated current: 7.1A Motor capacity: AC200V 1.5kW Rated voltage/breaking capacity: AC100V 2.5kA, AC200V 2.5kA, AC415V 1.5kA Tripping method: Electromagnetic External dimensions (mm): H96 (106 including terminal cover) x W70 x D52 (67.6 including handle) Mass: 0.4kg Specifications: With terminal cover
Manufacturer: Panasonic
Part number: BCW3071
Item weight: 400 g
Product size: 5.2 x 7 x 9.6 cm; 400 g
Style: Rated current: 7.1A
Pattern: Single Item
Voltage: 200 Volts
Accessories: None
Battery Usage: No
Product Dimensions (Length x Width x Height): 5.2 x 7 x 9.6cm
