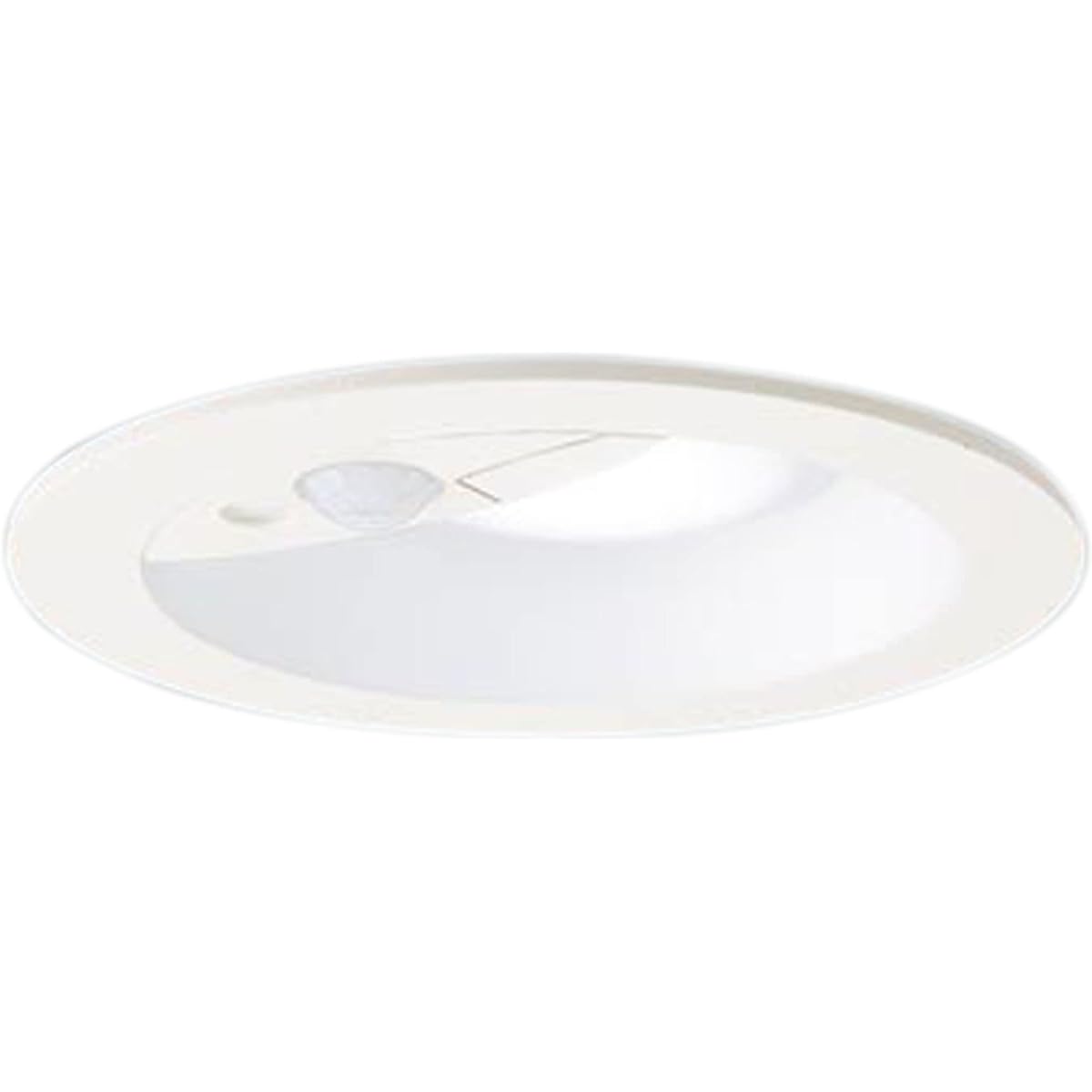

Panasonic Ceiling Recessed LED Daylight White Downlight Shallow 10H/Highly Airtight SB Type/Diffusion Type FreePa/Pair Lighting Type/ON/OFF Type/With Brightness Sensor/Embedded Hole φ100 LGDC1104NLE1

Release date: April 21, 2022 Embedding hole diameter: φ100mm Embedding height: 100mm

Specifications/Precautions - Fixture luminous flux: 465 lm - Voltage: 100 V - Power consumption: 4.7 W - Consumption efficiency: 98.9 lm/W - [Aluminum die-cast frame] White matte - Ceiling recessed type, embedded hole φ100, shallow type 10H・High airtight SB type・Diffusion type ・Ra83 [Compatible renewal plate] LGK02000 [Compatible renewal plate] LGK02001 [Compatible renewal plate] LGK02004 [Compatible renewal plate] LGK02005 ・PaPIRs・With brightness sensor ・Wall switch switching (sensor←→ (Continuous lighting) ・With lighting illuminance and lighting retention time adjustment function ・Target load: Up to 4 specified appliances without sensors + 3 specified appliances with sensors (LGDC3104L/V/N LE1, LGDC1104L/V/N LE1) ・60 Equivalent to a single light bulb ・Input current (at 100V): 0.08 A ・Dimmer control not possible ・During construction, the embedding height must be 100 mm.・Direct proximity limit 10cm Light source ・LED (daylight white type) ・Color temperature: 5000 K ・Light source life 40000 hours (luminous flux maintenance rate 70%) Lamp transformer ・Built-in LED ・Built-in power supply unit


Brand : ‎Panasonic
Product model number: ‎LGDC1104NLE1
Product size: 7.3 x 11.2 x 28.8 cm; 840 g
Color: Neutral white
Nameplate name: Included type
>Material: Aluminum
Power supply: Power cord type
Voltage: 100 volts
Light source: LED
Laser class: Water resistant
Accessories: None
Product Weight: ‎840 g
