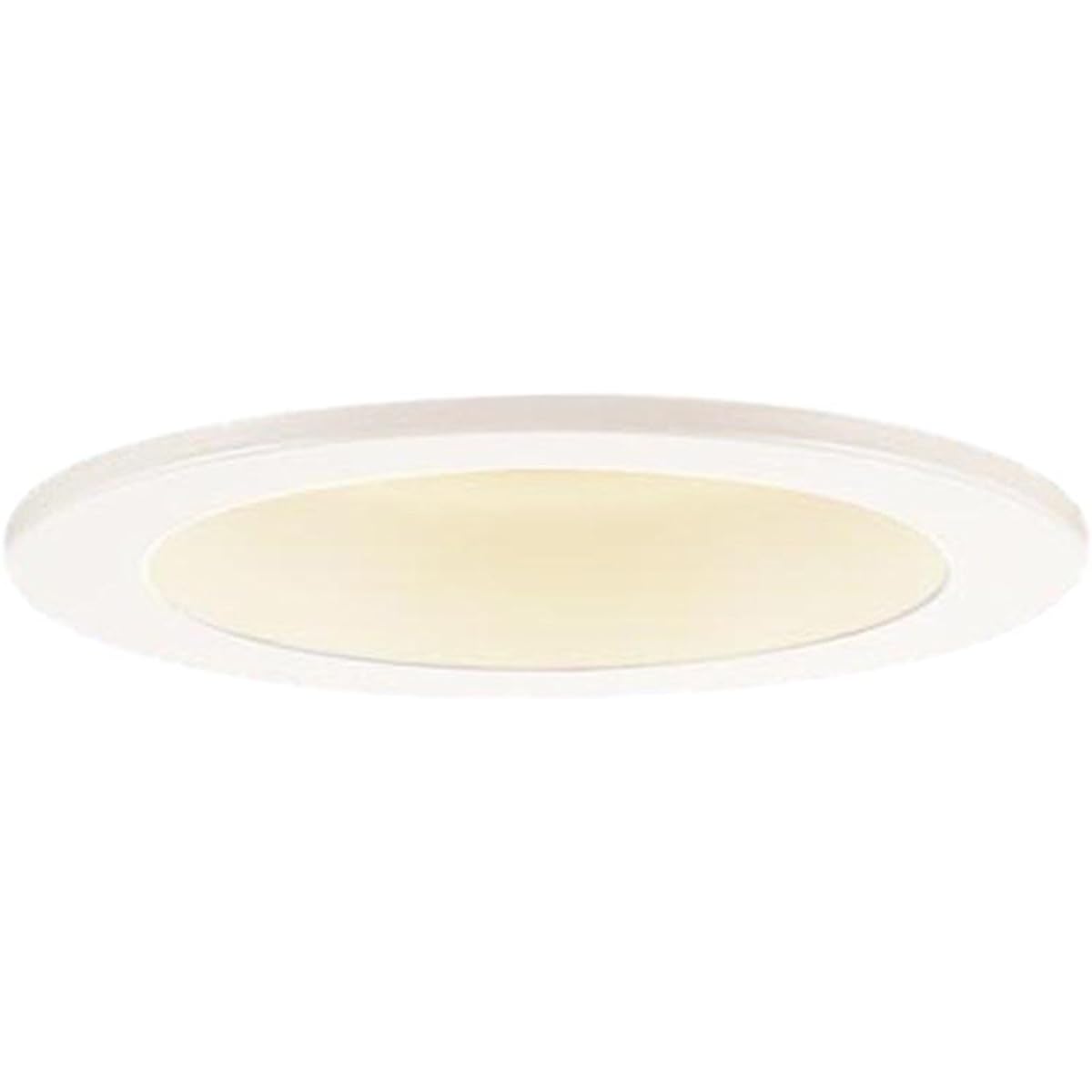

Panasonic LED Downlight Ceiling Recessed Type 100 Diffusion Color Adjustment LSEB5211LU1

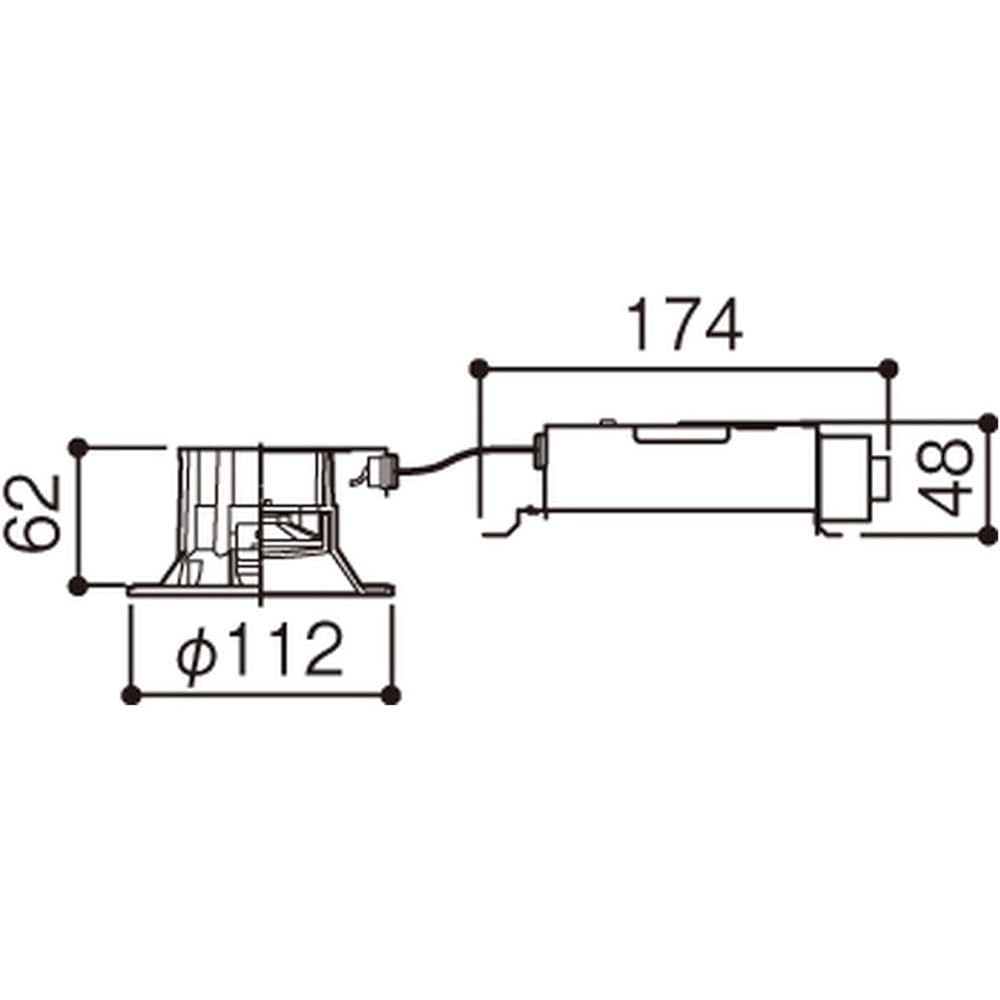

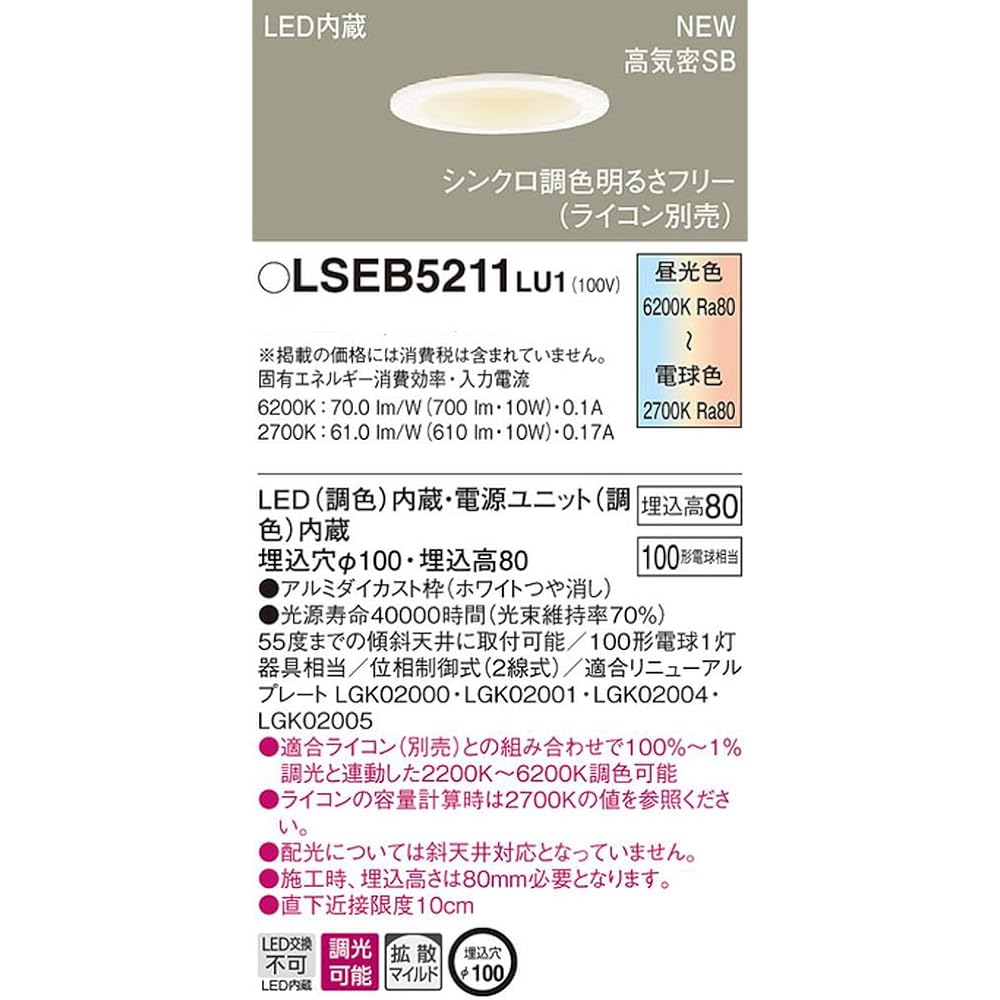

Material, color: Aluminum die-casting Frame: White matte Specifications: Shallow 8H, highly airtight SB type Type: Diffusion type (mild light distribution), dimming type (Licon sold separately) Built-in, Packaging: Built-in LED (color toning) , built-in power supply unit (color adjustment) Built-in LED (color adjustment type), 6200 K, 40000 hours (luminous flux maintenance rate 70%) Dimensions: Mounting hole diameter: φ100 mm, mounting height: 80 mm Specifications: Mounting hole φ100 , equivalent to one 100-type incandescent light fixture Fixture luminous flux: 700 lm, consumption efficiency: 70 lm/W, daylight color Ra80, light bulb color Ra80 Specifications: Can be installed on sloped ceilings up to 55 degrees, equivalent to one 100 type light bulb, phase control type (2-wire type), 2200K ~6200K, specific energy consumption efficiency 2700K: 61.0 lm/W (610 lm・10W), input current 2700K: 0.17A・input current (at 100V): 0.1 A Display more items

When used with a compatible licon (sold separately), 2200K to 6200K can be adjusted with 100% to 1% dimming. Please refer to the value of 2700K when calculating the capacity of the licon. Regarding light distribution, it is not compatible with sloped ceilings. During construction, the embedment height must be 80mm. Light control compatible with Living Licon NQ28752W (sold separately) Light control compatible with Living Licon NQ28752S (sold separately) Light control compatible with Living Licon NQ28732W (sold separately) Light control compatible with Living Licon NQ28732S (sold separately) Light control compatible with Living Licon NQ28751W (sold separately) Light control Living Licon NQ28751S (sold separately) compatible light control Living Licon NQ28750W (sold separately) compatible light control Living Licon NQ28750S (sold separately) compatible light control LED embedded dimmer switch B (rotary type) WT57511W (sold separately) compatible light control LED embedded Dimmer switch C (rotary type) WTC57521W (sold separately) Compatible light control LED embedded dimmer switch (rotary type) (3.2A) WTC57523W (sold separately).


Brand: ‎Panasonic
Product model number: ‎LSEB5211LU1
Package size: ‎15.6 x 15.6 x 14.6 cm; 540 g
Name on nameplate: ‎Toning color
Material: Aluminum
Power supply: Power cord type
Voltage: 100 Volts
Wattage: 10 W
Quantity: 1
Light source: LED
>Laser class: ‎Dimmable
Bulb color: ‎Toneable
Bulb type: ‎LED
Product weight: ‎540 g
