Auto Parts Tokyo

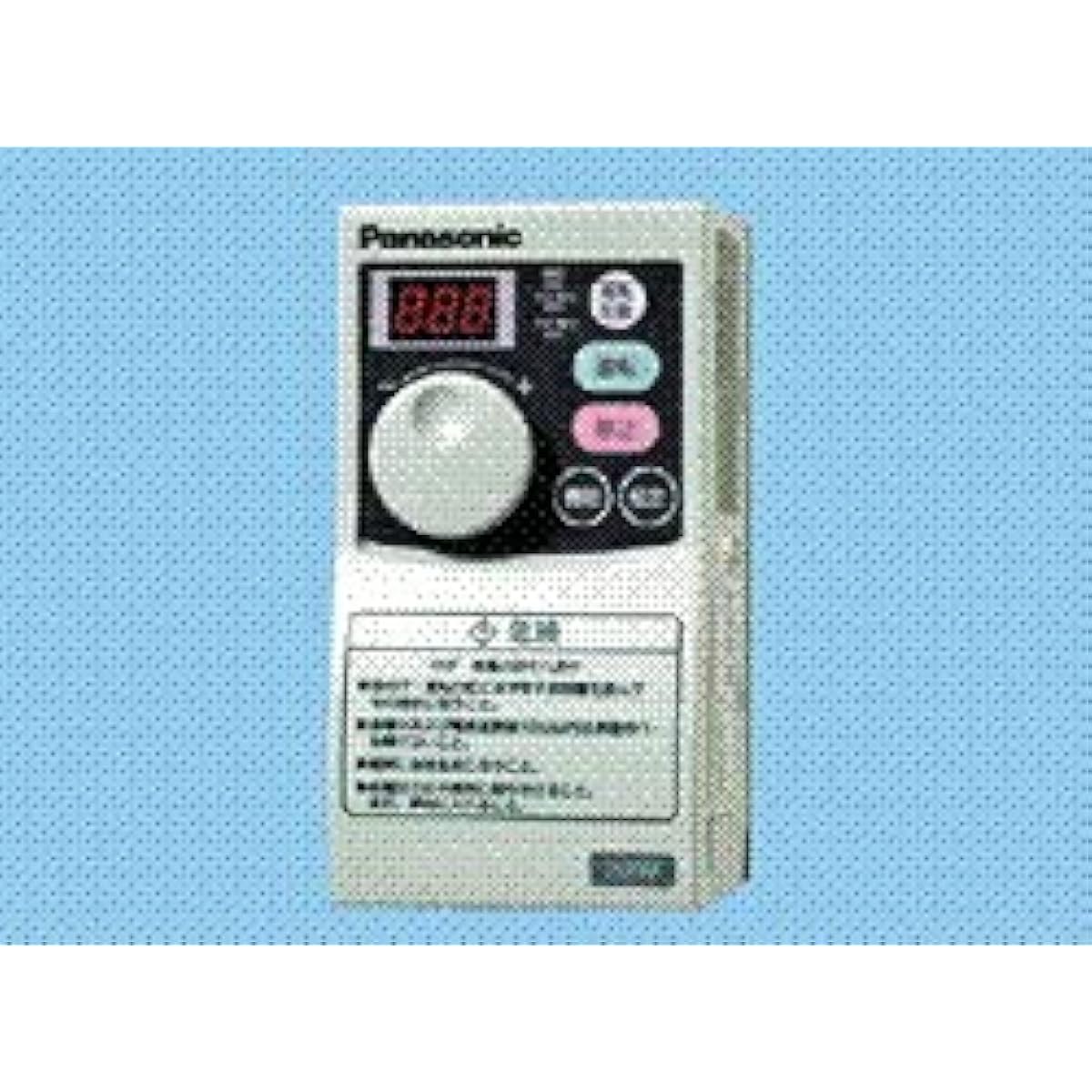

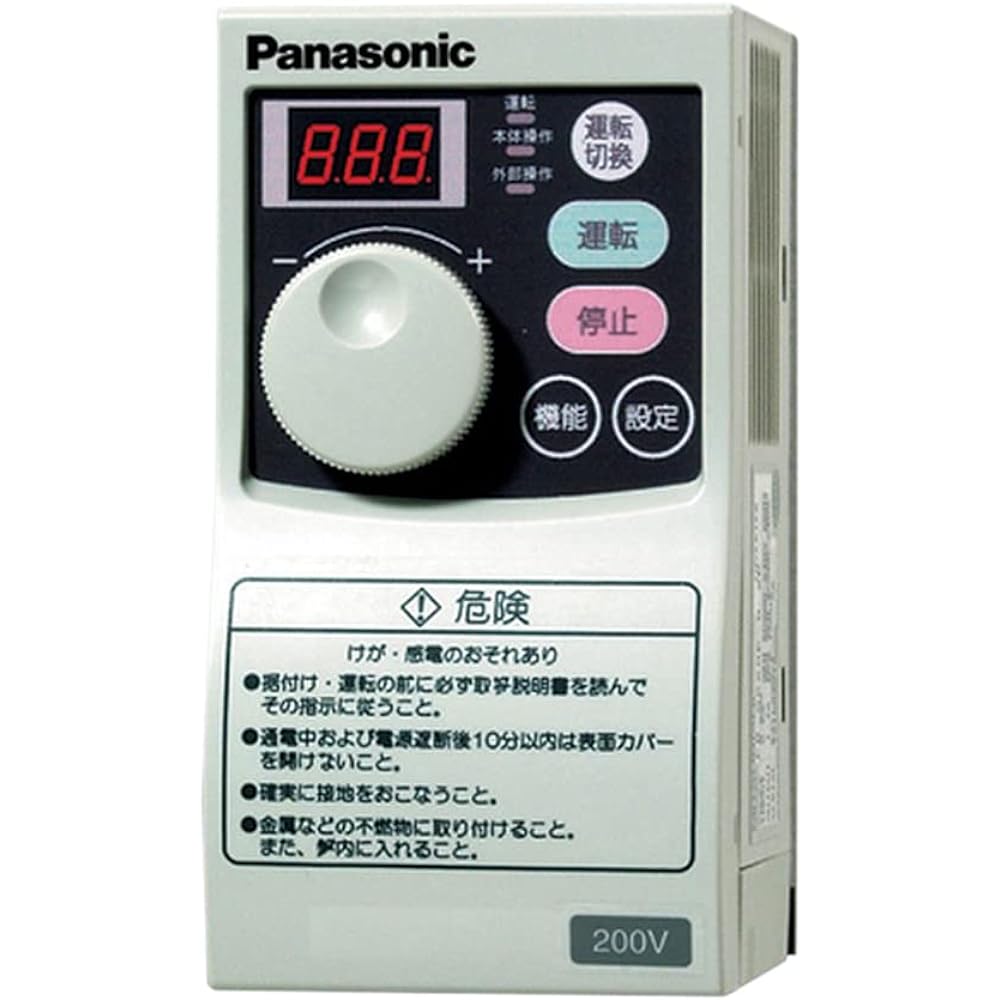

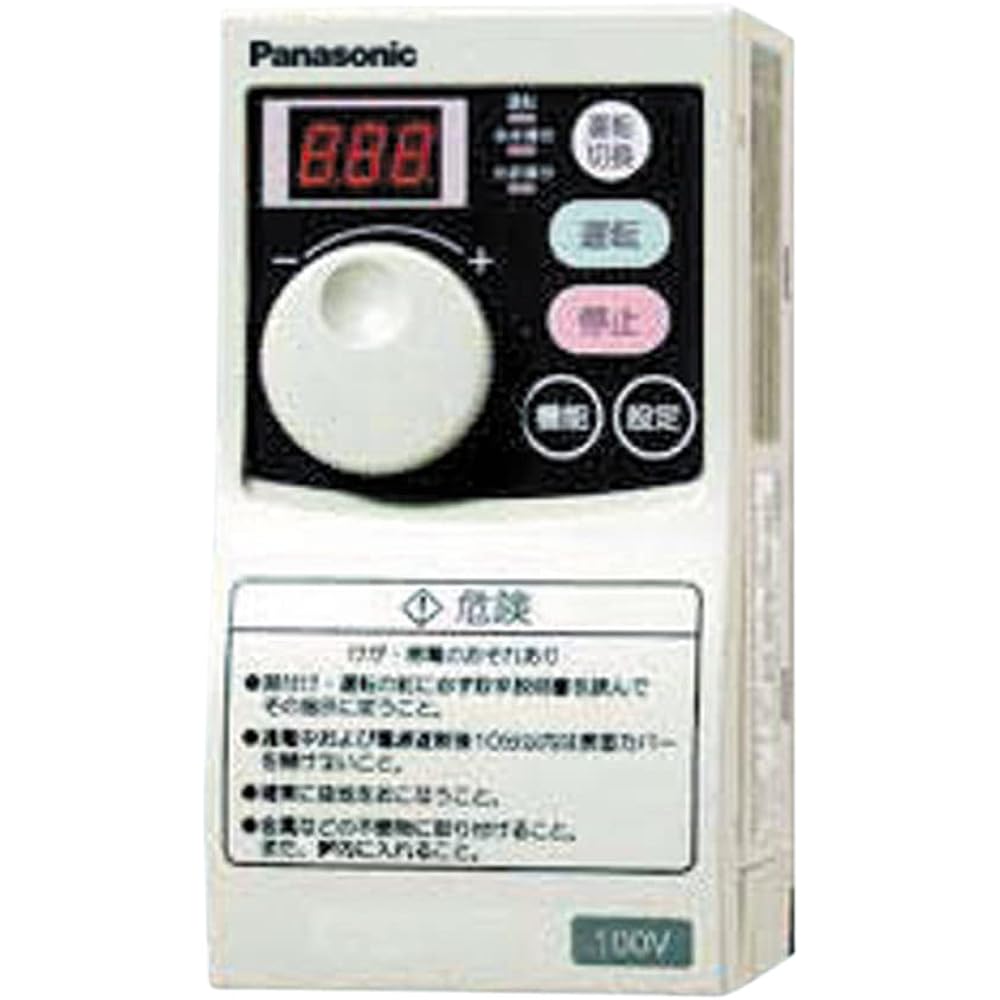

Panasonic Blower Inverter - Three Phase 2.2KW FY-S1N22T
Panasonic Blower Inverter - Three Phase 2.2KW FY-S1N22T
Regular price
$303.00 USD
Regular price
Sale price
$303.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Release date: April 4, 2005 Blower components Blower inverter 3-phase 200V (input/output) Applicable motor: 2.2kW
■Aiming for both comfort and energy savings -Using an inverter can provide significant benefits in addition to comfort and energy savings. - 60Hz capability can be obtained even in 50Hz areas. ■Features of the blower inverter 1) Versatile external control In addition to starting/stopping from the outside, it is possible to change the frequency using 0 to 5 V DC, 0 to 10 V DC, and 4 to 20 mA DC. 2) Low-noise operation The high-carrier sine wave PWM method enables operation at a low-noise level comparable to that of commercial power supply. 3) Setting the operating mode remotely A simple remote air volume adjustment switch (optional) allows you to start/stop and change the frequency remotely. 4) Up to 3 frequency jump settings If resonance occurs at a specific frequency, you can set up to 3 points to avoid that frequency. 5) Initial settings for parameters suitable for the blower Since the parameters are initially set for the blower, there is no need to make any extra settings. (Some settings are required) 6) Memorize operating frequency Even if the power is cut off once, the last operating frequency is memorized. ■3 types of operation control 1. Automatic operation by temperature sensing 2. Automatic operation by humidity sensing 3. Cigarette smoke
Brand: Panasonic
Product model number: FY-S1N22T
Package size: 22.4 x 17.8 x 15.9 cm; 1.68 kg
Name on nameplate: 3-phase 200V input, 3-phase 200V output
Quantity: 1
Laser class: Low noise Driving
Accessories: None
Product weight: 1.68 Kilograms
■Aiming for both comfort and energy savings -Using an inverter can provide significant benefits in addition to comfort and energy savings. - 60Hz capability can be obtained even in 50Hz areas. ■Features of the blower inverter 1) Versatile external control In addition to starting/stopping from the outside, it is possible to change the frequency using 0 to 5 V DC, 0 to 10 V DC, and 4 to 20 mA DC. 2) Low-noise operation The high-carrier sine wave PWM method enables operation at a low-noise level comparable to that of commercial power supply. 3) Setting the operating mode remotely A simple remote air volume adjustment switch (optional) allows you to start/stop and change the frequency remotely. 4) Up to 3 frequency jump settings If resonance occurs at a specific frequency, you can set up to 3 points to avoid that frequency. 5) Initial settings for parameters suitable for the blower Since the parameters are initially set for the blower, there is no need to make any extra settings. (Some settings are required) 6) Memorize operating frequency Even if the power is cut off once, the last operating frequency is memorized. ■3 types of operation control 1. Automatic operation by temperature sensing 2. Automatic operation by humidity sensing 3. Cigarette smoke
Brand: Panasonic
Product model number: FY-S1N22T
Package size: 22.4 x 17.8 x 15.9 cm; 1.68 kg
Name on nameplate: 3-phase 200V input, 3-phase 200V output
Quantity: 1
Laser class: Low noise Driving
Accessories: None
Product weight: 1.68 Kilograms
