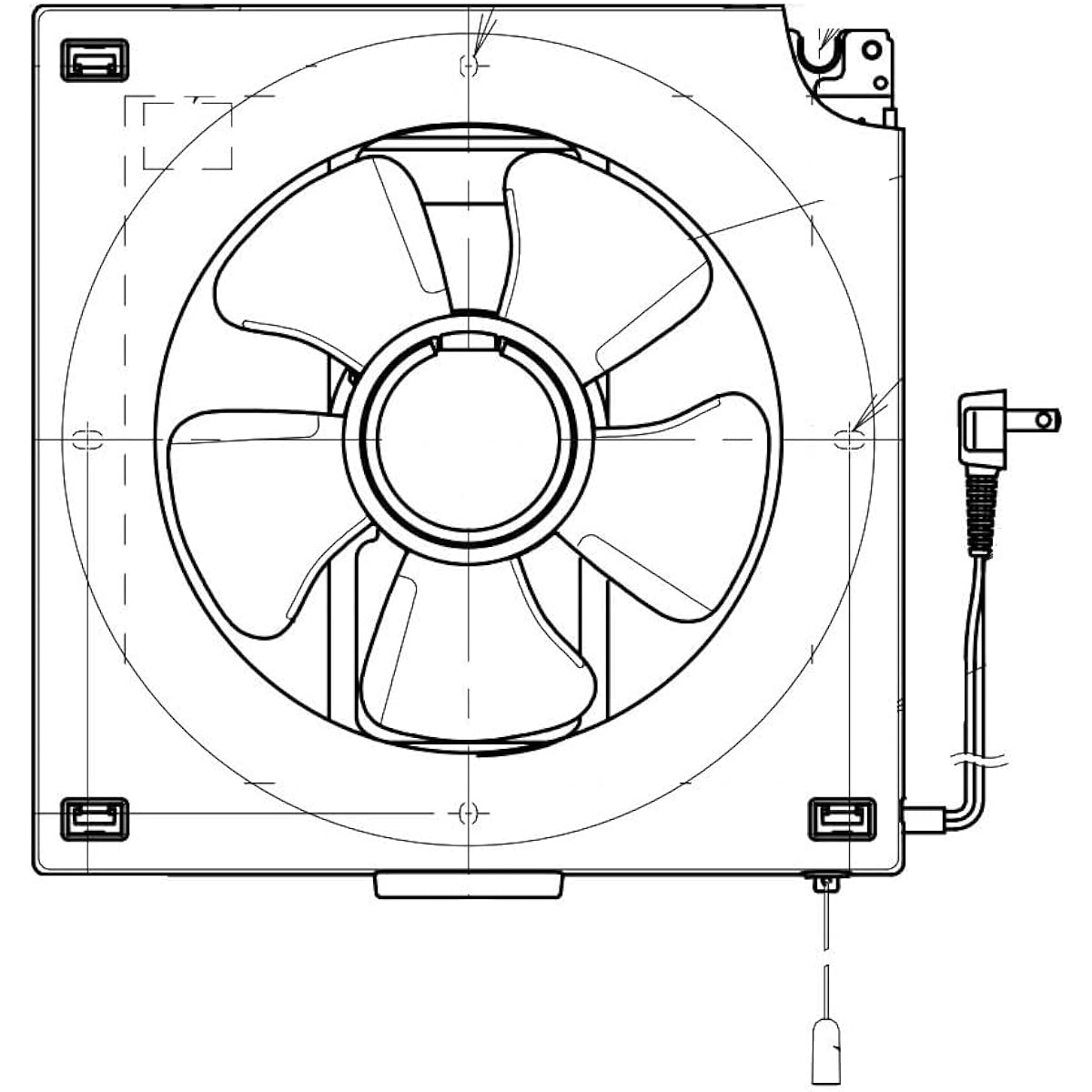

Panasonic Interior Ventilation Fan, Exhaust, Intensity Speed Adjustment, Louver Sold Separately, Drawstring Shutter, White, Width 353 x Depth 133 x Height 366 mm FY-25PE6

Insulation class: E class, insulation resistance: 1M ohm or more (DC500V) Size: width 353 x depth 133 x height 366 mm, blade diameter: 25 cm, power cord (flat type): length 800 mm, mass: 2.4 kg. Color: White Material: Frame, shutter: Painted steel plate, vanes, orifice, pull cord switch: P.P resin, power cord: Vinyl, Function: Strong/Weak, Motor type: 4-pole capacitor induction motor Time rating: Continuous/Insulation class: Class E, Insulation resistance: 1M ohm or more (DC500V) Shutter: 3 sheets Withstand voltage: AC1000V for 1 minute Rating: Single phase 100V 50/60 Hz Power consumption: Strong: 13.0/16.5W, Weak: 10.5/11.5W , Current: Strong: 0.130/0.165A, Weak: 0.110/0.125A, Ventilation air volume: Strong: 715/725m3/h, Weak: 547/532m3/h

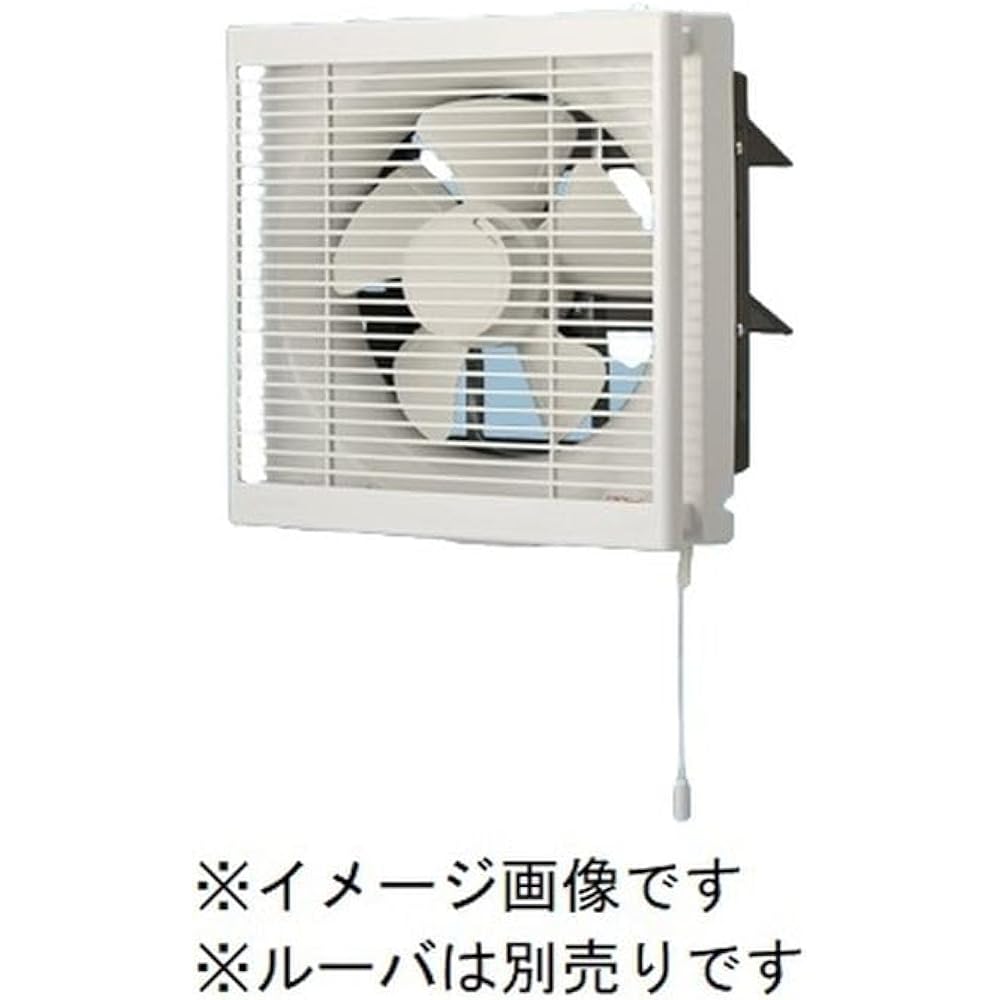

Interior ventilation fan with louver sold separately. You can choose the louver to match your interior. The wings can be attached and detached with one touch. It has a thin design that reduces protrusion from the wall. You can install an optional embedded outlet inside the ventilation fan and wire it directly. Interior panel type louvers cannot be installed. Do not install in highly airtight houses, locations with strong outside winds, or mid-to-high floors above the 3rd floor. The length of the drawstring is adjustable. Interlocking with embedded switches, etc. is not possible.


Brand: ‎Panasonic
Product model number: ‎FY-25PE6
Product size: ‎39.9 x 42.8 x 17.5 cm; 2.4 kg
Last name on nameplate: ‎ Industrial
Power supply: ‎Power cord type
Quantity: ‎1
Accessories: ‎None
Product weight: ‎2.4 Kilograms
