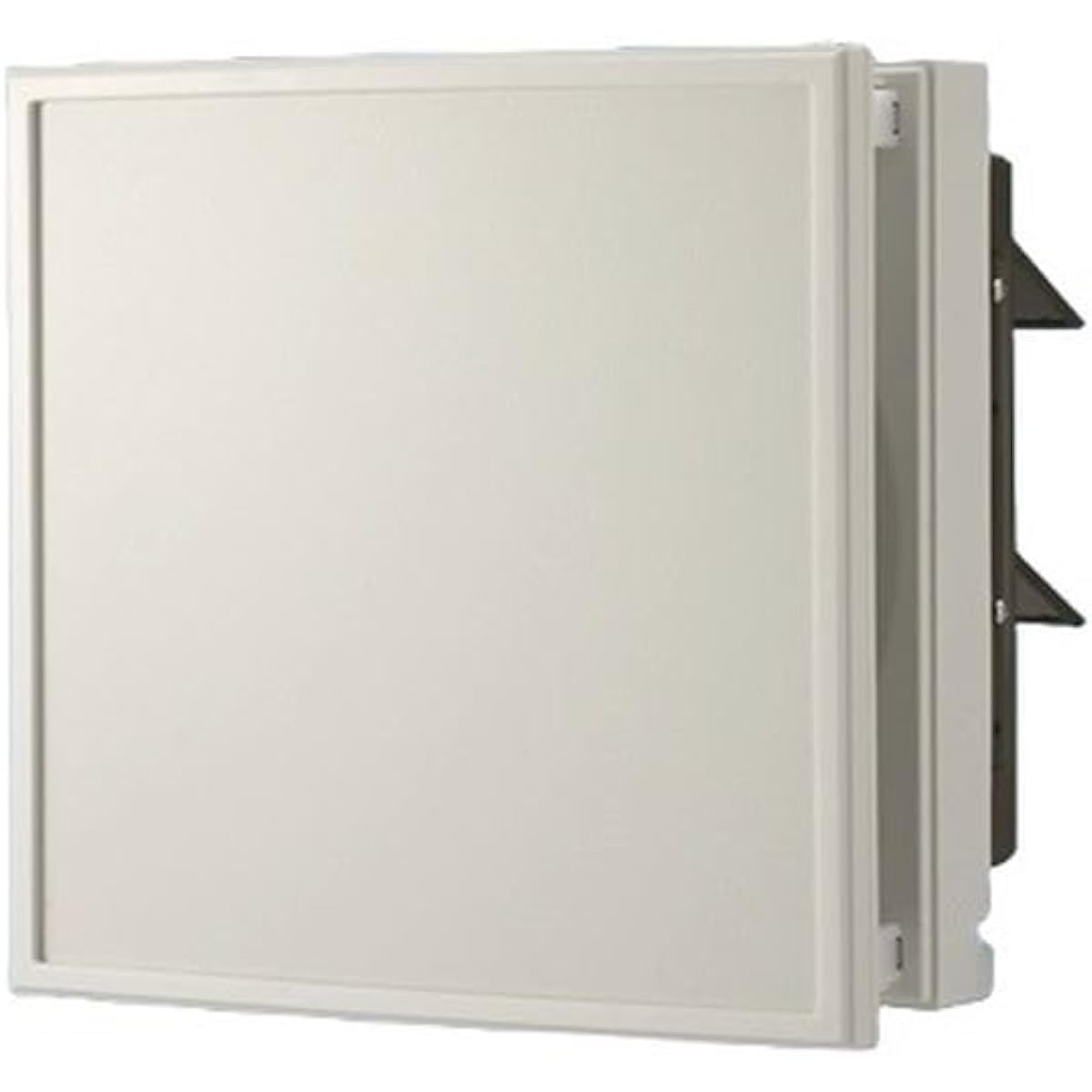

Panasonic Interior Ventilation Fan Exhaust Remote Control Louver Set Type Electric Shutter Width 362 x Depth 202 x Height 366mm FY-25EEP6

Insulation class: E class, insulation resistance: 1M ohm or more (DC500V) Size: Width 362 x Depth 202 x Height 366 mm, Blade diameter: 25 cm, Power cord (flat type): Length 800 mm, Mass: 3.3 kg. Material: Frame, shutter: Painted steel plate, blade, orifice: P.P resin, Louver: ABS resin, steel plate, Power cord: Vinyl Function: Exhaust/motor type: 4-pole capacitor induction motor/Time rating: Continuous Insulation class: E class, Insulation resistance: 1M ohm or more (DC500V) ・Shutter: 3 sheets ・Withstand voltage: AC1000V 1 minute Rating: Single phase 100V 50/60 Hz, Power consumption: 15.5/19.5W, Current: 0.161/0.210A ・Ventilation air volume: 543 /559m3/h・Noise: 35.5/36.0dB

Interior ventilation fan louver set type. The wings can be attached and detached with one touch. You can install an optional embedded outlet inside the ventilation fan and wire it directly. Do not install in highly airtight houses, locations with strong outside winds, or mid-to-high floors above the 3rd floor. There is no pull cord switch. Because the louver is made of ABS resin, do not install it in a location where oil smoke is generated or where chemicals or solvents are used.


Brand: ‎Panasonic
Product model number: ‎FY-25EEP6
Package size: ‎42.79 x 42.1 x 20.2 cm; 3.3 kg
Power supply: ‎Power cord Formula
Quantity: 1
Accessories: None
Product weight: 3.3 Kilograms
