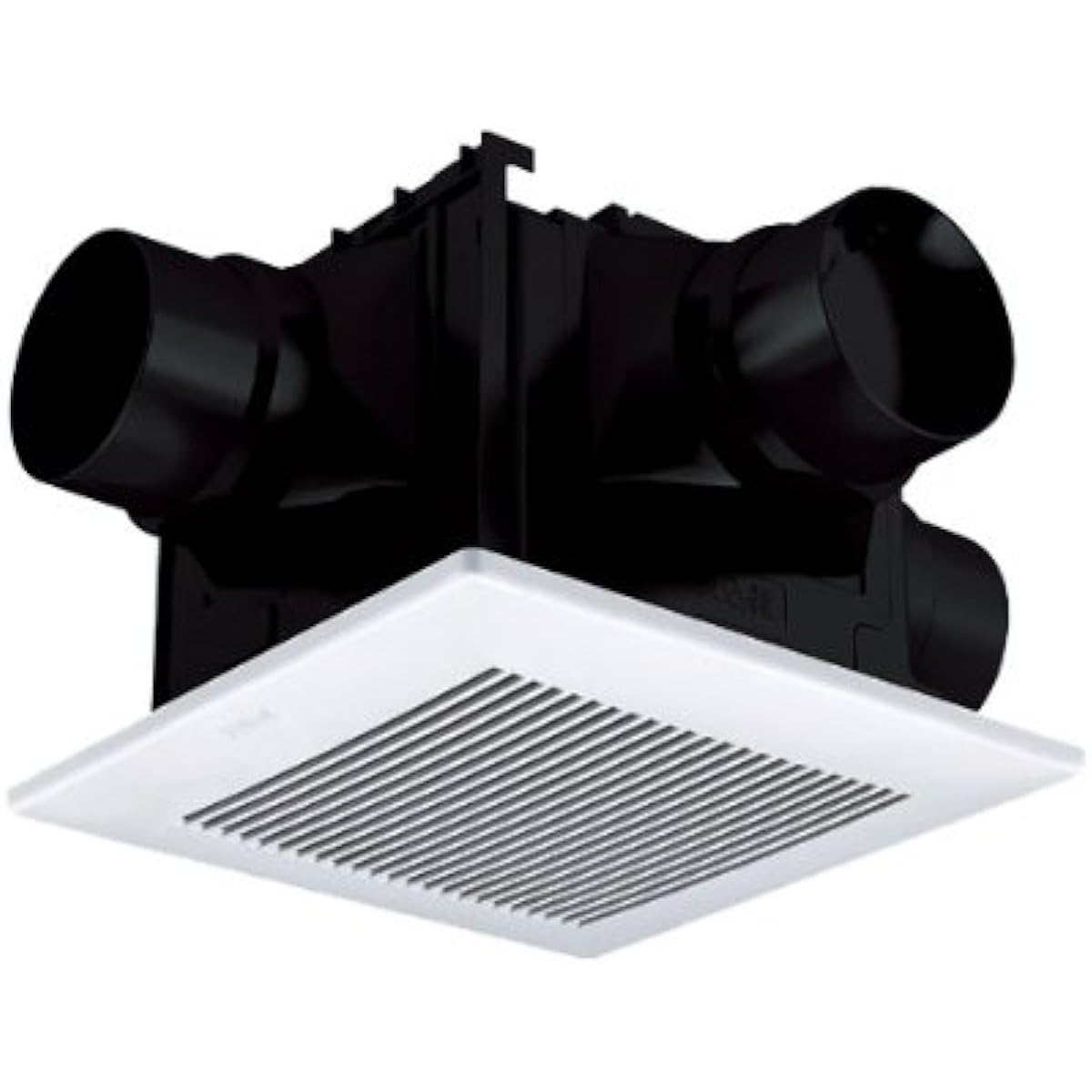

Panasonic FY-24CTUS7V Ceiling Embedded Ventilation Fan for 2 to 3 Rooms/3 Rooms Ventilation Louver Set Type

For ventilation of 2-3 rooms in bathrooms, toilets and washrooms, low noise and large air volume type, 200㎥/h type, suction grill (2 slave units included), embedded size 240mm square, applicable pipe φ100mm, 24-hour constant ventilation recommended (3 stages) With speed control> High efficiency motor for low power consumption, low noise design (silent rift), blades can be easily removed for easy cleaning The air volume of the louver can be adjusted, and the air volume balance between the parent unit and slave unit can be changed.The intake port on the slave unit side can be selected from three directions depending on the floor plan.Increase the number of items displayed

●Low power consumption due to the adoption of a high-efficiency motor and G/C sirocco fan ●Low noise design that cuts out the harsh sound range during actual use ●Easily removes everything from the spring-type one-touch louver to the orifice and blades for improved cleaning ● The air volume of the louver can be adjusted, allowing you to change the air volume balance between the parent unit and child unit. ●The intake port on the child unit side can be selected from three directions depending on the floor plan. ●With constant ventilation function ●With wind-pressure airtight shutter ●Power connection part: External body Main body: Made of resin, Blade: Made of resin, Louver: Made of resin 2 suction grills and 1 shielding plate included (However, the same type of 2 pieces are used)


Brand: ‎Panasonic
Product model number: ‎FY-24CTUS7V
Package size: ‎46.4 x 38.6 x 25.6 cm; 3.92 kg
br>Nameplate name: ‎3 tiers
Power supply: ‎Power cord type
Laser class: ‎Low noise
Product weight: ‎3.92 Kilograms
