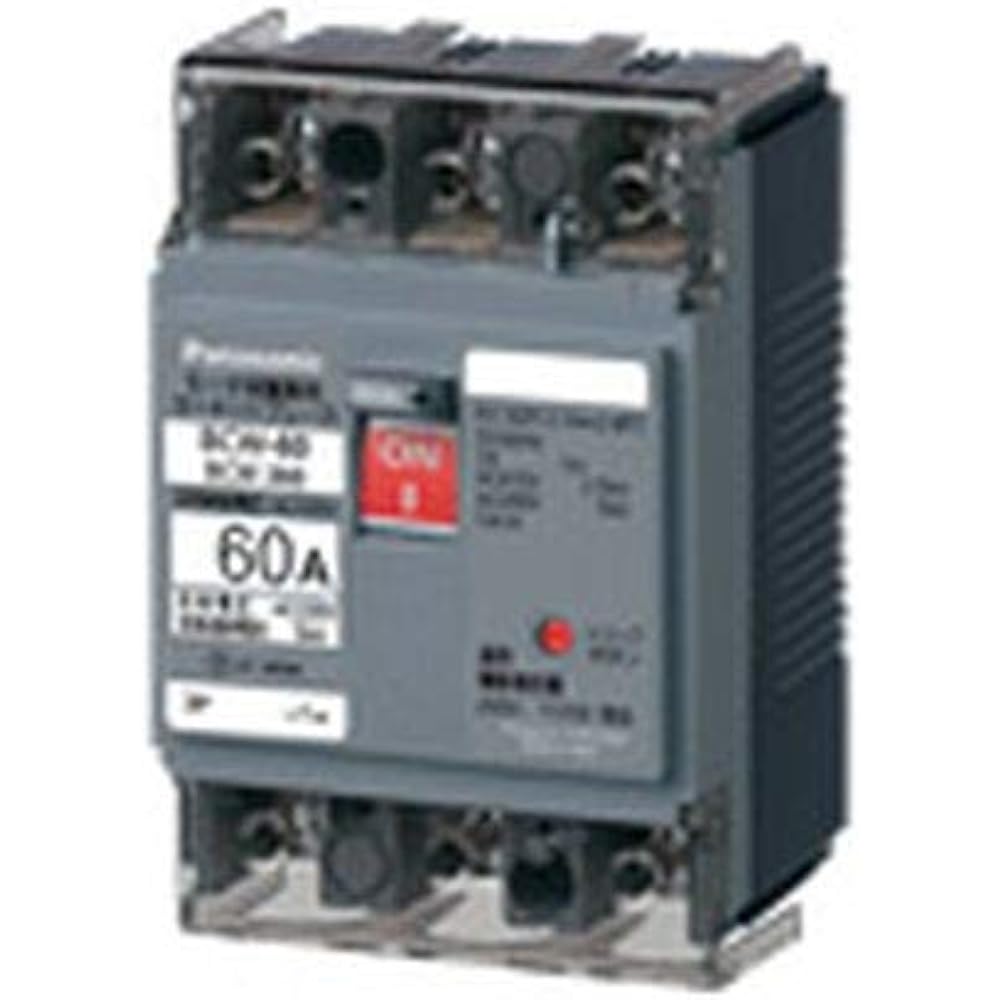

Panasonic Circuit Breaker BCW-60 Type 3P3E 60A Motor Protection BCW360
Panasonic Circuit Breaker BCW-60 Type 3P3E 60A Motor Protection BCW360
Regular price
$65.00 USD
Regular price
Sale price
$65.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Release date: June 22, 2004 Model name: BCW-60 Rated current: 60A Rated voltage/breaking capacity: AC100V 2.5kA, AC200V 2.5kA, AC415V 1.5kA Number of poles: 3P3E
Product explanation Type: Circuit breaker (also used for motor protection) Model name: BCW-60 Frame: 60AF Number of poles: 3P3E Rated current: 60A Motor capacity: AC200V 15kW Rated voltage/breaking capacity: AC100V 2.5kA, AC200V 2.5kA, AC415V 1.5kA Tripping method: Electromagnetic External dimensions (mm): H96 (106 including terminal cover) x W70 x D52 (67.6 including handle) Mass: 0.4 kg Specifications: With terminal cover
Manufacturer: Panasonic (Panasonic)
Part number: BCW360
Item weight: 400 g
Product size: 5.2 x 7 x 9.6 cm; 400 g
Discontinued by the manufacturer: No
Pattern: Single item
Voltage: 200 Volts
Accessories: None
Battery included: No
Battery usage: No
Product dimensions (Length x height): 5.2 x 7 x 9.6 cm
Product explanation Type: Circuit breaker (also used for motor protection) Model name: BCW-60 Frame: 60AF Number of poles: 3P3E Rated current: 60A Motor capacity: AC200V 15kW Rated voltage/breaking capacity: AC100V 2.5kA, AC200V 2.5kA, AC415V 1.5kA Tripping method: Electromagnetic External dimensions (mm): H96 (106 including terminal cover) x W70 x D52 (67.6 including handle) Mass: 0.4 kg Specifications: With terminal cover
Manufacturer: Panasonic (Panasonic)
Part number: BCW360
Item weight: 400 g
Product size: 5.2 x 7 x 9.6 cm; 400 g
Discontinued by the manufacturer: No
Pattern: Single item
Voltage: 200 Volts
Accessories: None
Battery included: No
Battery usage: No
Product dimensions (Length x height): 5.2 x 7 x 9.6 cm
