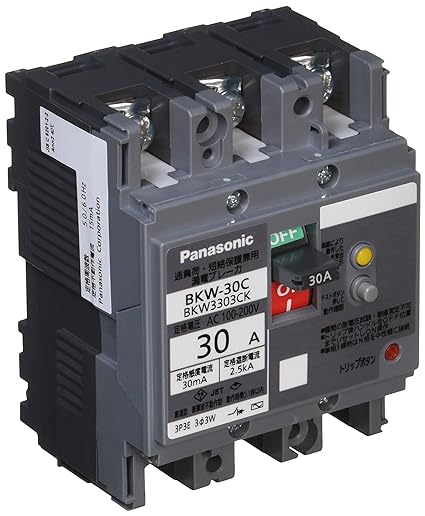

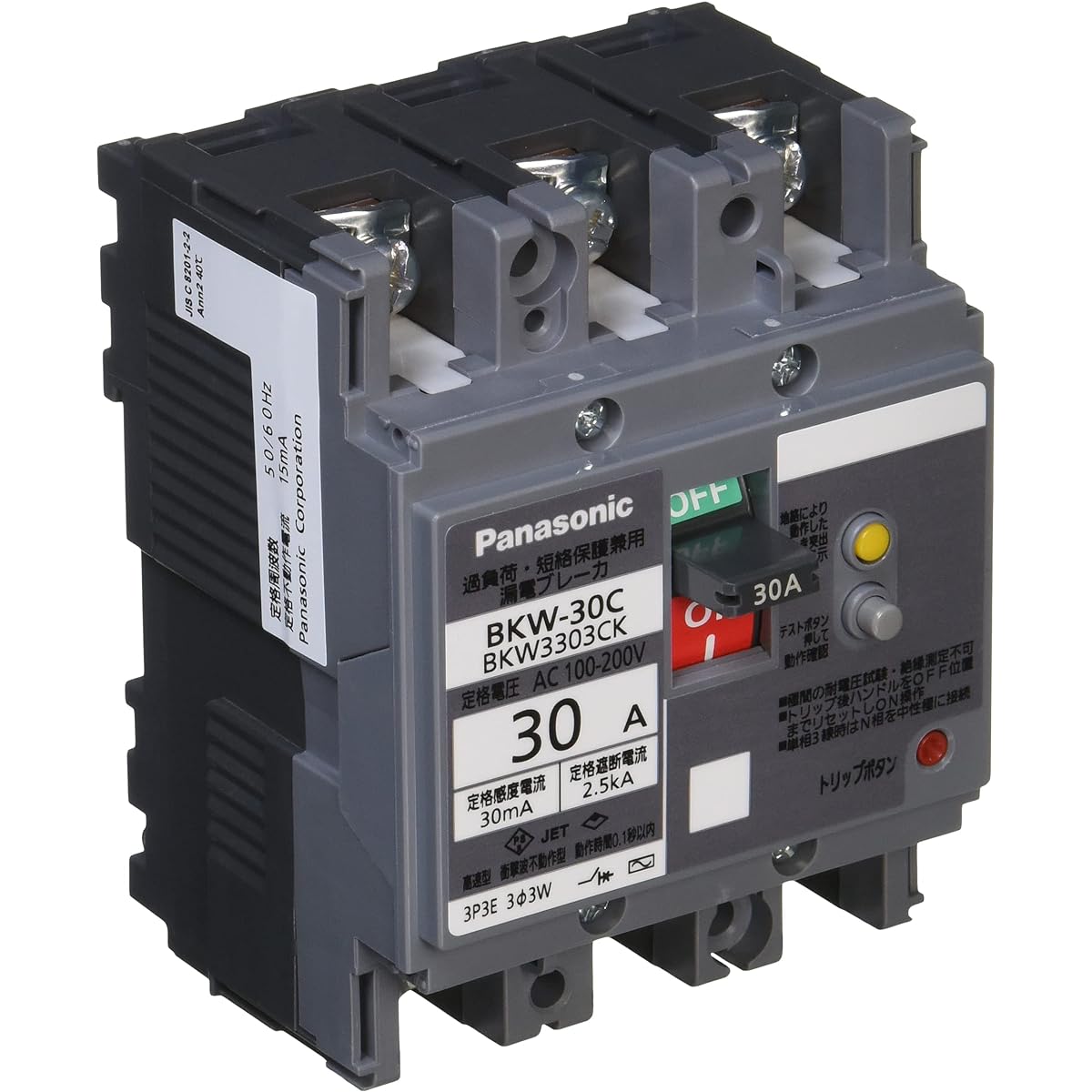

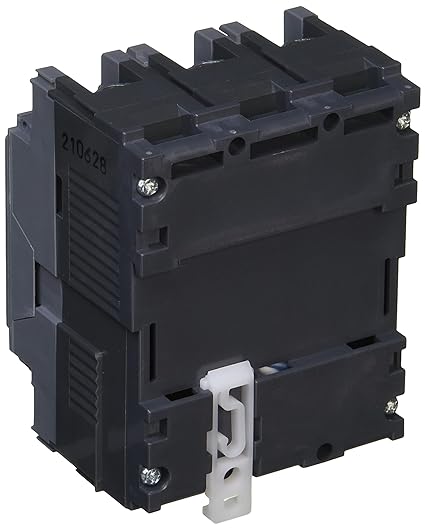

Panasonic Earth Leakage Breaker BKW-30C Type 3P3E with OC 30A 30mA (combined with overcurrent protection) BKW3303CK
Panasonic Earth Leakage Breaker BKW-30C Type 3P3E with OC 30A 30mA (combined with overcurrent protection) BKW3303CK
Regular price
$86.00 USD
Regular price
Sale price
$86.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Release date: July 1, 2008 Model name: BKW-30C Rated current: 30A Rated voltage/breaking capacity: For both AC100-200V 2.5kA Number of poles and elements: 3P3E
Type: Earth leakage breaker Model name: BKW-30C Frame: 30AF Number of poles: 3P3E Rated current: 30A Earth leakage sensitivity current: 30mA Rated voltage/breaking capacity: 2.5kA for both AC100-200V Tripping method: Electromagnetic External dimensions (mm) ): H96 x W75 x D60 (75.6 including handle) Mass: 0.5 kg Specifications: JIS agreement type, compatible with lightning surge and harmonics (inverters, etc.)
Manufacturer: Panasonic< br>Part number: BKW3303CK
Item weight: 500 g
Product size: 6 x 7.5 x 9.6 cm; 500 g
Style: 30C type 3P3E 30A 30mA
Voltage: 200 volts
Accessories: None
Batteries used: No
Product dimensions (Length x Width x Height): 6 x 7.5 x 9.6 cm
Type: Earth leakage breaker Model name: BKW-30C Frame: 30AF Number of poles: 3P3E Rated current: 30A Earth leakage sensitivity current: 30mA Rated voltage/breaking capacity: 2.5kA for both AC100-200V Tripping method: Electromagnetic External dimensions (mm) ): H96 x W75 x D60 (75.6 including handle) Mass: 0.5 kg Specifications: JIS agreement type, compatible with lightning surge and harmonics (inverters, etc.)
Manufacturer: Panasonic< br>Part number: BKW3303CK
Item weight: 500 g
Product size: 6 x 7.5 x 9.6 cm; 500 g
Style: 30C type 3P3E 30A 30mA
Voltage: 200 volts
Accessories: None
Batteries used: No
Product dimensions (Length x Width x Height): 6 x 7.5 x 9.6 cm
