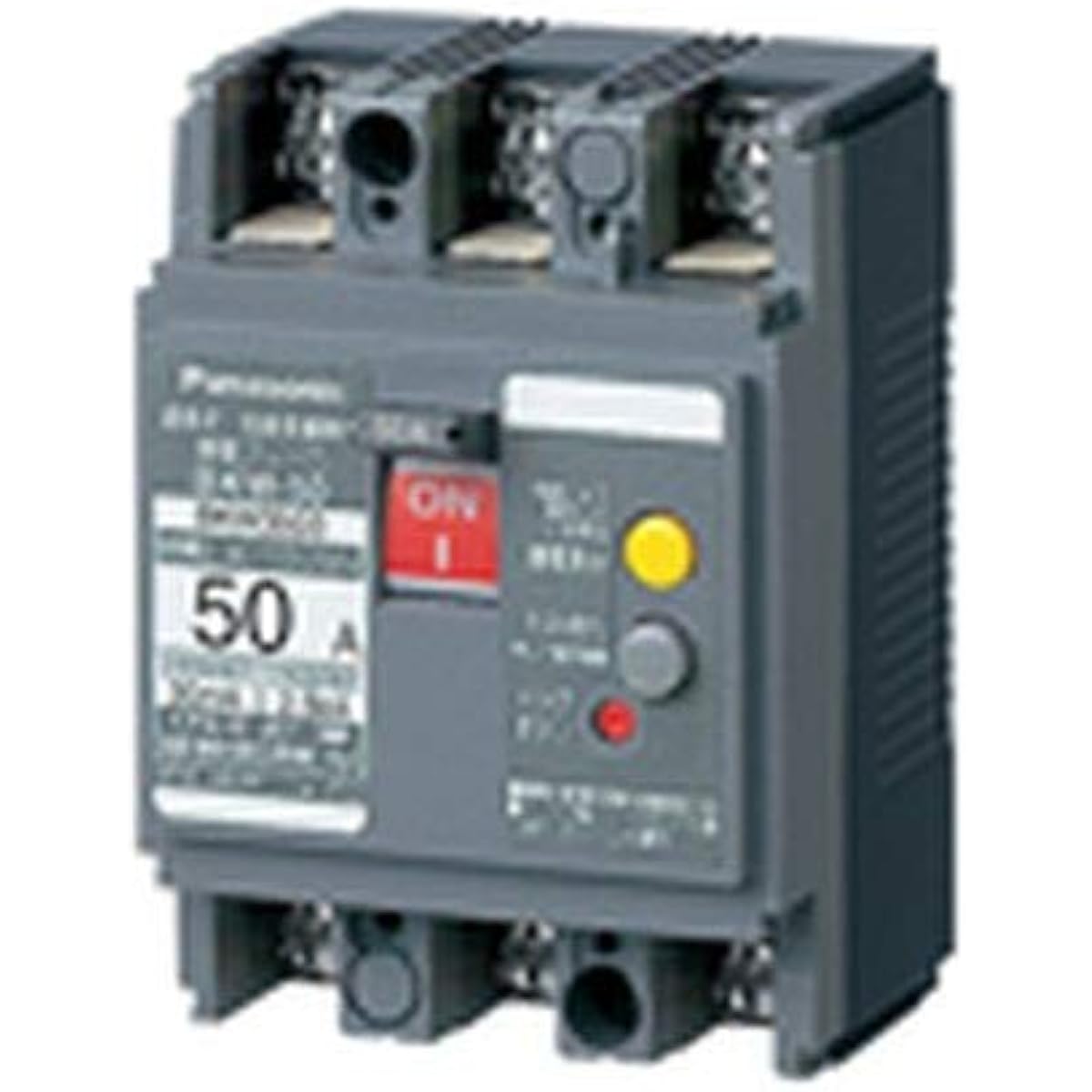

Panasonic Earth Leakage Breaker BKW-50 Type 2P2E with OC 50A 30mA (combined with overcurrent protection) BKW2503

Release date: June 21, 2004 Model name: BKW-50 Rated current: 50A Rated voltage/breaking capacity: For both AC100-200V 2.5kA Number of poles and elements: 2P2E

Type: Earth leakage breaker Model name: BKW-50 Frame: 50AF Number of poles: 2P2E Rated current: 50A Earth leakage sensitivity current: 30mA Rated voltage/breaking capacity: 2.5kA for both AC100-200V Tripping method: Electromagnetic External dimensions (mm) ): H96 x W70 x D52 (67.6 including handle) Mass: 0.4 kg Specifications: Compatible with lightning surges and harmonics (inverters, etc.)


Manufacturer: Panasonic
Part number : ‎BKW2503
Product weight: ‎400 g
Product size: ‎5.2 x 7 x 9.6 cm; 400 g
Style: ‎50 type 2P2E 50A 30mA
Voltage: ‎200 Volts >Accessories: None
Battery usage: No
Product dimensions (Length x Width x Height): 5.2 x 7 x 9.6 cm
