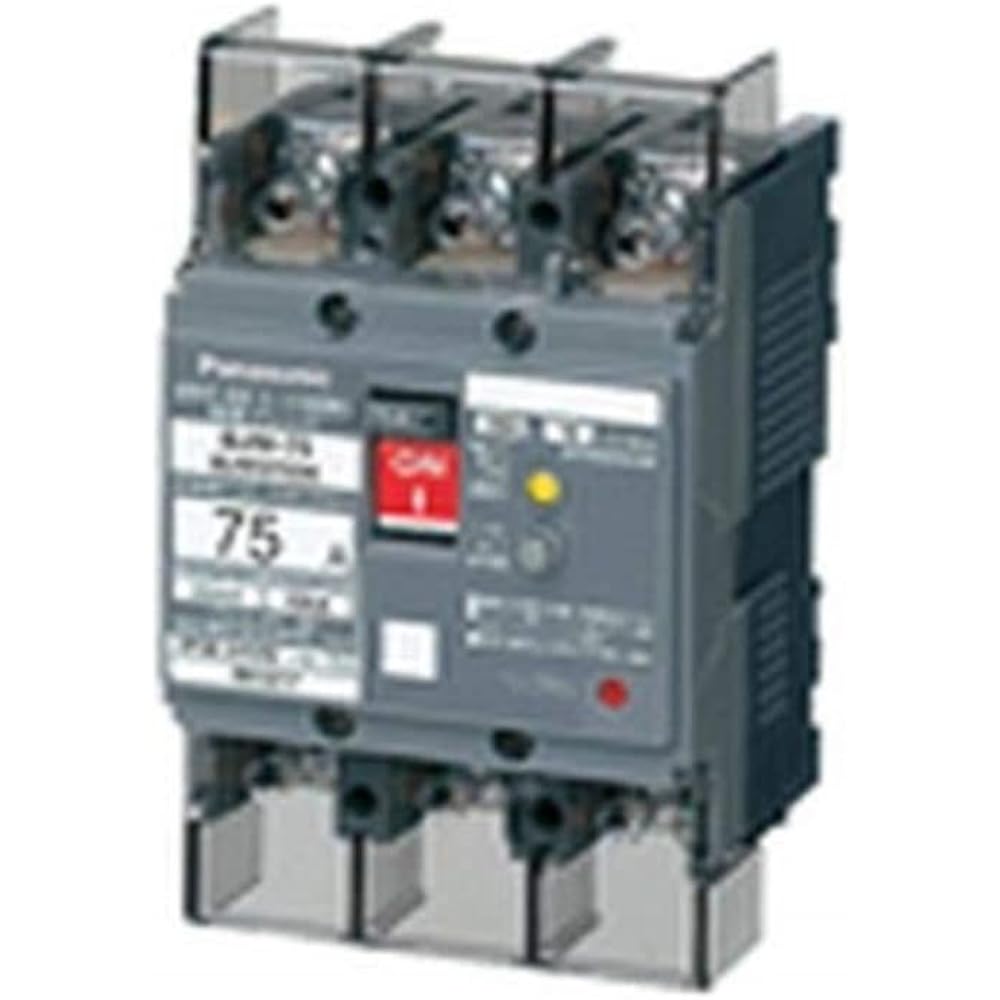

Panasonic Earth Leakage Breaker BJW-75 Type 3P3E with OC 75A 30mA Motor Protection BJW3753K

Release date: July 1, 2008 Model name: BJW-75 Rated current: 75A Rated voltage/breaking capacity: For both AC100-200V 10kA Number of poles and elements: 3P3E

Type: Earth leakage breaker (also used for motor protection) Model name: BJW-75 Frame: 75AF Number of poles: 3P3E Rated current: 75A Motor capacity: AC200V 19kW Earth leakage sensitivity current: 30mA Rated voltage/breaking capacity: For both AC100-200V 10kA pull Removal method: Electromagnetic External dimensions (mm): H96 (126 including terminal cover) x W75 x D60 (75.6 including handle) Mass: 0.5 kg Specifications: With terminal cover, compatible with lightning surges and harmonics (inverters, etc.)


Manufacturer: ‎Panasonic
Part number: ‎BJW3753K
Item weight: ‎500 g
Product size: ‎6 x 7.5 x 9.6 cm; 500 g
>Discontinued by manufacturer: ‎No
Pattern: ‎Single item
Voltage: ‎200 Volts
Accessories: ‎None
Battery included: ‎No
Uses batteries: ‎ No
Product dimensions (Length x Width x Height): ‎6 x 7.5 x 9.6 cm
