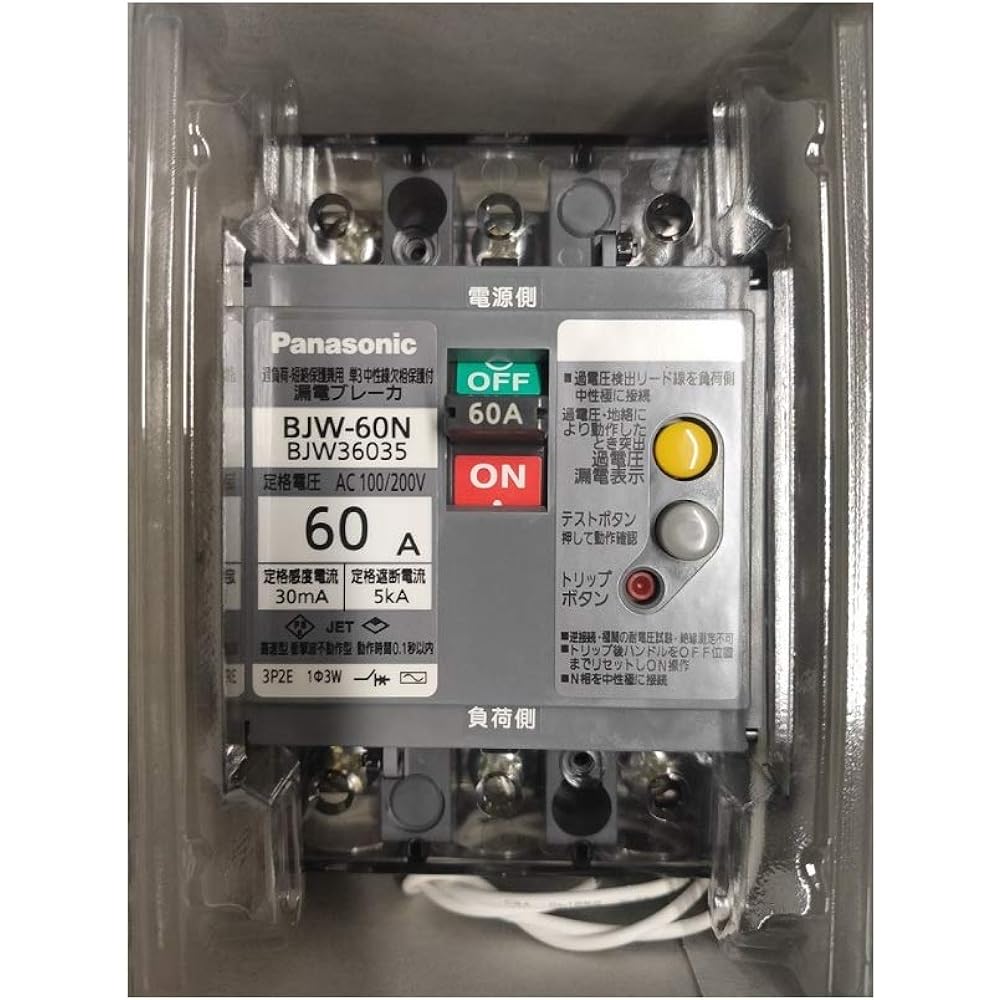

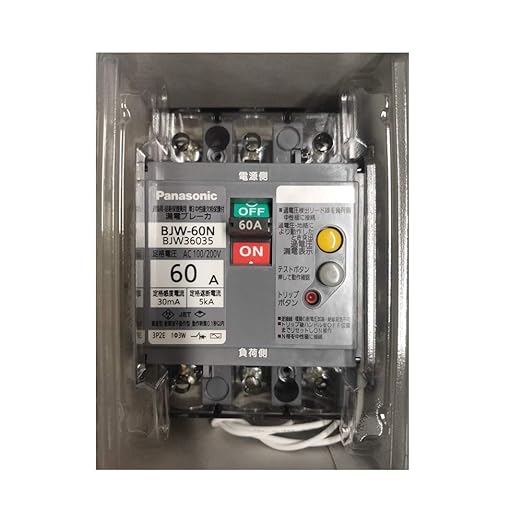

Panasonic Earth Leakage Breaker BJW-N Type 60AF 60A Sensitivity 30mA BJW36035
Panasonic Earth Leakage Breaker BJW-N Type 60AF 60A Sensitivity 30mA BJW36035
Regular price
$127.00 USD
Regular price
Sale price
$127.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
●*Reverse connection is not possible.
●*Please select the wire size that matches the rated current value.
●*Please remove the wires when measuring the insulation resistance between the lines.
●*Compatible with lightning surges and harmonics (inverters, etc.). For frequency control circuits such as inverters, be sure to install it on the primary side of the inverter.
●*Please install the electromagnetic type with overcurrent tripping method within ±10° to the vertical plane (125AF).
●With AA neutral wire open-phase protection ●Earth leakage breaker BJW-N type ●With O.C. ●For single-phase 3-wire only ●With terminal cover for installation inside the box ●Frame/model name: 60AF●Number of poles: 3P2E ●Sensitivity Current: 30mA●Rating: 60A●Phase wire system: 1φ3W (single-phase 2-wire system)●Rated voltage/breaking capacity (sym): For AC100/200V only (AA) 5kA●Operating time (at the time of leakage/overvoltage): Within 0.1 seconds/within 0.5 seconds ● Overvoltage operating voltage: 130 ± 5V ● Leakage/overvoltage display method: Mechanical button ● Terminal specifications: Applicable crimp terminal (manufactured by Nichifu) 14-6, CB22-6S ● Terminal cover included: BCW30308125 ●※Reverse connection is not possible. ●*Please select the wire size that matches the rated current value. ●*Remove the wires before measuring the insulation resistance between the wires. ●*Compatible with lightning surges and harmonics (inverters, etc.). For frequency control circuits such as inverters, be sure to install it on the primary side of the inverter. ●*Please install the electromagnetic type with overcurrent tripping method within ±10° to the vertical plane (125AF). ●*Make sure to connect the overvoltage detection lead wire to the secondary side (N phase) of the breaker. If it cannot be connected, please make sure to connect it to the secondary side (N phase) of the breaker. *Cannot be used for circuits other than single-phase 3-wire type. ●When using as an AA main power supply, be sure to check the primary voltage before turning on the power. ●*When using a radio device such as a transceiver, please use it at least 1m away. Otherwise, the AA neutral wire open phase protection may malfunction (breaker trip). ●※DIN rail cannot be installed.
Manufacturer: Panasonic
Part number: BJW36035
Product weight: 440 g
Product size: 10.6 x 6.8 x 7 cm; 440 g
Color: No
Style: 60N Type 60A 30mA
Voltage: 200 Volts
Accessories: No
Battery Usage: No
Product Dimensions (Length x Width x Height): 10.6 x 6.8 x 7 cm
●*Please select the wire size that matches the rated current value.
●*Please remove the wires when measuring the insulation resistance between the lines.
●*Compatible with lightning surges and harmonics (inverters, etc.). For frequency control circuits such as inverters, be sure to install it on the primary side of the inverter.
●*Please install the electromagnetic type with overcurrent tripping method within ±10° to the vertical plane (125AF).
●With AA neutral wire open-phase protection ●Earth leakage breaker BJW-N type ●With O.C. ●For single-phase 3-wire only ●With terminal cover for installation inside the box ●Frame/model name: 60AF●Number of poles: 3P2E ●Sensitivity Current: 30mA●Rating: 60A●Phase wire system: 1φ3W (single-phase 2-wire system)●Rated voltage/breaking capacity (sym): For AC100/200V only (AA) 5kA●Operating time (at the time of leakage/overvoltage): Within 0.1 seconds/within 0.5 seconds ● Overvoltage operating voltage: 130 ± 5V ● Leakage/overvoltage display method: Mechanical button ● Terminal specifications: Applicable crimp terminal (manufactured by Nichifu) 14-6, CB22-6S ● Terminal cover included: BCW30308125 ●※Reverse connection is not possible. ●*Please select the wire size that matches the rated current value. ●*Remove the wires before measuring the insulation resistance between the wires. ●*Compatible with lightning surges and harmonics (inverters, etc.). For frequency control circuits such as inverters, be sure to install it on the primary side of the inverter. ●*Please install the electromagnetic type with overcurrent tripping method within ±10° to the vertical plane (125AF). ●*Make sure to connect the overvoltage detection lead wire to the secondary side (N phase) of the breaker. If it cannot be connected, please make sure to connect it to the secondary side (N phase) of the breaker. *Cannot be used for circuits other than single-phase 3-wire type. ●When using as an AA main power supply, be sure to check the primary voltage before turning on the power. ●*When using a radio device such as a transceiver, please use it at least 1m away. Otherwise, the AA neutral wire open phase protection may malfunction (breaker trip). ●※DIN rail cannot be installed.
Manufacturer: Panasonic
Part number: BJW36035
Product weight: 440 g
Product size: 10.6 x 6.8 x 7 cm; 440 g
Color: No
Style: 60N Type 60A 30mA
Voltage: 200 Volts
Accessories: No
Battery Usage: No
Product Dimensions (Length x Width x Height): 10.6 x 6.8 x 7 cm
