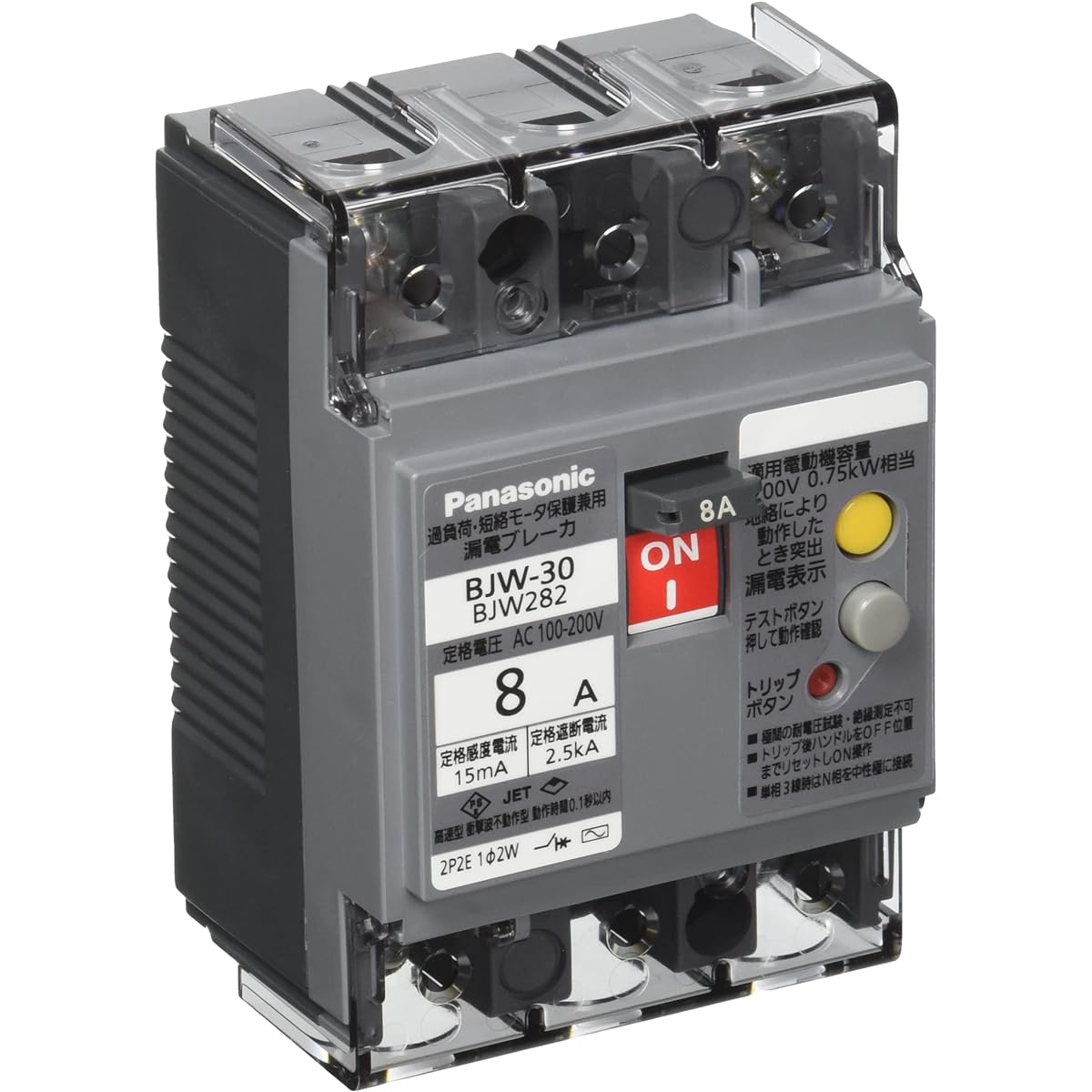

Panasonic Earth Leakage Breaker BJW-30 Type 2P2E with OC 8A 15mA Motor Protection BJW282

Release date: June 21, 2004 Model name: BJW-30 Rated current: 8A Rated voltage/breaking capacity: For both AC100-200V 2.5kA Number of poles and elements: 2P2E

Type: Earth leakage breaker (also used for motor protection) Model name: BJW-30 Frame: 30AF Number of poles: 2P2E Rated current: 8A Motor capacity: AC200V 0.75kW Earth leakage sensitivity current: 15mA Rated voltage/breaking capacity: For both AC100-200V 2.5 kA Tripping method: Electromagnetic External dimensions (mm): H96 (106 including terminal cover) x W70 x D52 (67.6 including handle) Mass: 0.4 kg Specifications: With terminal cover, compatible with lightning surges and harmonics (inverters, etc.)


Manufacturer: Panasonic
Part number: BJW282
Product weight: 400 g
Product size: 5.2 x 7 x 9.6 cm; 400 g
Size: 8A 15mA
Pattern: Single item
Voltage: 200 Volts
Accessories: None
Battery usage: No
Product dimensions (Length x Width x Height): 5.2 x 7 x 9.6 cm
