Auto Parts Tokyo

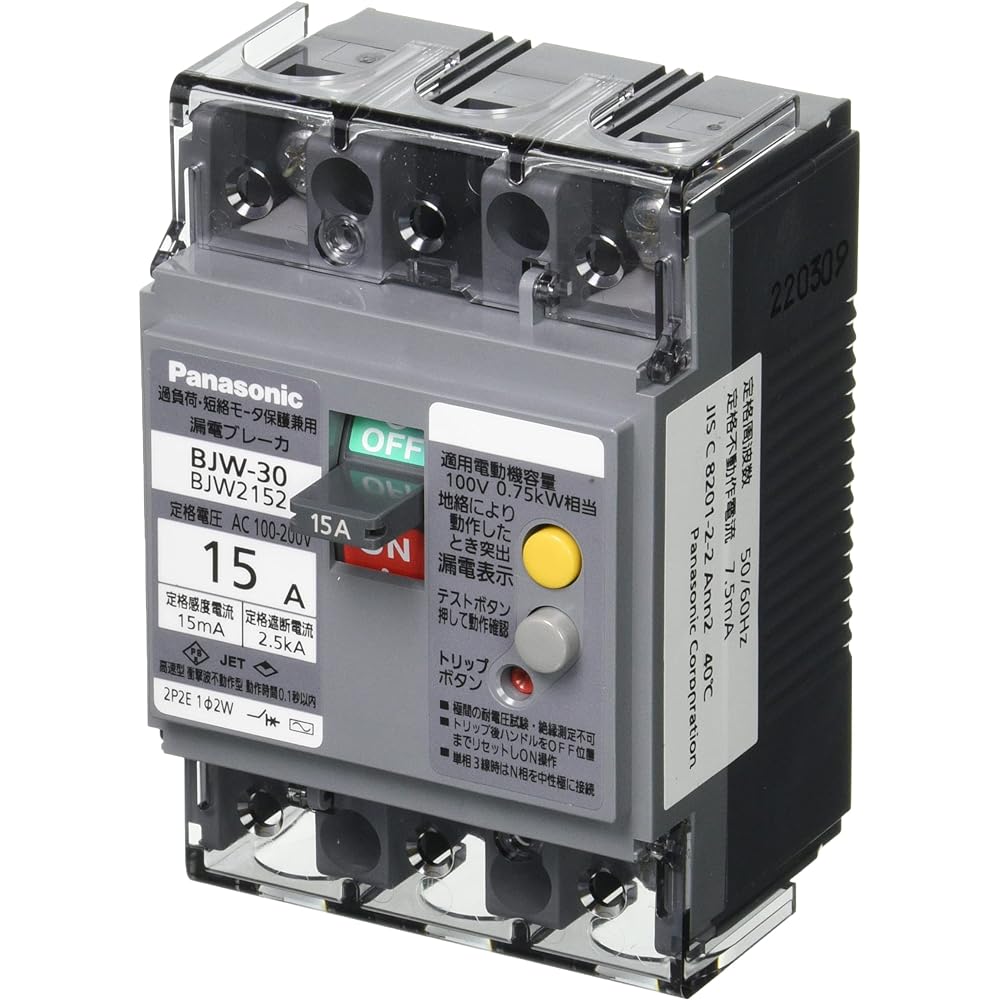

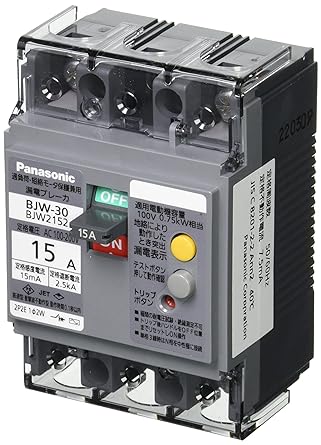

Panasonic Earth Leakage Breaker BJW-30 Type 2P2E with OC 15A 15mA Motor Protection BJW2152
Panasonic Earth Leakage Breaker BJW-30 Type 2P2E with OC 15A 15mA Motor Protection BJW2152
Regular price
$96.00 USD
Regular price
Sale price
$96.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Release date: June 21, 2004 Model name: BJW-30 Rated current: 15A Rated voltage/breaking capacity: For both AC100-200V 2.5kA Number of poles and elements: 2P2E

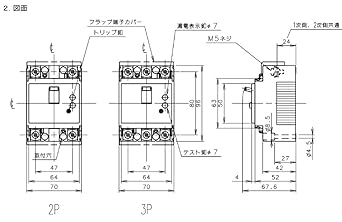

Type: Earth leakage breaker (also used for motor protection) Model name: BJW-30 Frame: 30AF Number of poles: 2P2E Rated current: 15A Motor capacity: AC100V 0.75kW Earth leakage sensitivity current: 15mA Rated voltage/breaking capacity: For both AC100-200V 2.5 kA Tripping method: Electromagnetic External dimensions (mm): H96 (106 including terminal cover) x W70 x D52 (67.6 including handle) Mass: 0.4 kg Specifications: With terminal cover, compatible with lightning surges and harmonics (inverters, etc.)
Manufacturer: Panasonic
Part number: BJW2152
Product weight: 400 g
Product size: 5.2 x 7 x 9.6 cm; 400 g
Style: 15A 15mA
Voltage: 100 Volts
Accessories: None
Batteries Used: No
Product Dimensions (Length x Width x Height): 5.2 x 7 x 9.6cm
Type: Earth leakage breaker (also used for motor protection) Model name: BJW-30 Frame: 30AF Number of poles: 2P2E Rated current: 15A Motor capacity: AC100V 0.75kW Earth leakage sensitivity current: 15mA Rated voltage/breaking capacity: For both AC100-200V 2.5 kA Tripping method: Electromagnetic External dimensions (mm): H96 (106 including terminal cover) x W70 x D52 (67.6 including handle) Mass: 0.4 kg Specifications: With terminal cover, compatible with lightning surges and harmonics (inverters, etc.)
Manufacturer: Panasonic
Part number: BJW2152
Product weight: 400 g
Product size: 5.2 x 7 x 9.6 cm; 400 g
Style: 15A 15mA
Voltage: 100 Volts
Accessories: None
Batteries Used: No
Product Dimensions (Length x Width x Height): 5.2 x 7 x 9.6cm
