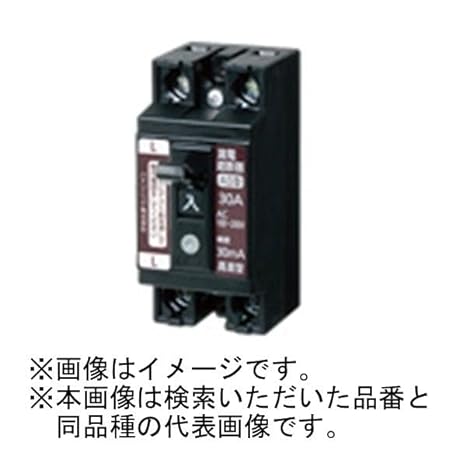

Panasonic Small Earth Leakage Breaker Safety Breaker Same Module 30AF With O.C. 2P2E 15A Sensitivity 30mA BJS1532N
Panasonic Small Earth Leakage Breaker Safety Breaker Same Module 30AF With O.C. 2P2E 15A Sensitivity 30mA BJS1532N
Regular price
$52.00 USD
Regular price
Sale price
$52.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
*Reverse connection is possible.
●*Please select the wire size that matches the rated current value.
●*For direct connection, please strip 12.5mm of the wire sheathing.
●*Please remove the wires when measuring the insulation resistance between the lines.
●*Compatible with lightning surges and harmonics (inverters, etc.). For frequency control circuits such as inverters, be sure to install it on the primary side of the inverter.
●Quantity (units): 1●Small earth leakage breaker (safety breaker same module)●For electric lights/branches●Frame: 30AF (with O.C.)●Number of poles: 2P2E (AB-2E)●Rated current: 15A●Sensitivity Current: 30mA●Phase wire system: 1φ2W (single-phase 2-wire system), 1φ3W (single-phase 3-wire system)●Rated voltage/breaking capacity (sym): AC100-100/200-200V shared/1.5kA (200V:1kA) ●Operating time: Within 0.1 seconds ●Overcurrent trip method: Thermal type ●Operating range temperature: -10 to 50℃
Manufacturer: Panasonic
Part number: BJS1532N
Item weight: 80 g
Product size: 7 x 5.6 x 3.2 cm; 80 g
Style: 2P2E with O.C 15A 30mA
Voltage: 200 volts
Included Product: Instruction manual
Batteries used: No
Product dimensions (Length x Width x Height): 7 x 5.6 x 3.2 cm
●*Please select the wire size that matches the rated current value.
●*For direct connection, please strip 12.5mm of the wire sheathing.
●*Please remove the wires when measuring the insulation resistance between the lines.
●*Compatible with lightning surges and harmonics (inverters, etc.). For frequency control circuits such as inverters, be sure to install it on the primary side of the inverter.
●Quantity (units): 1●Small earth leakage breaker (safety breaker same module)●For electric lights/branches●Frame: 30AF (with O.C.)●Number of poles: 2P2E (AB-2E)●Rated current: 15A●Sensitivity Current: 30mA●Phase wire system: 1φ2W (single-phase 2-wire system), 1φ3W (single-phase 3-wire system)●Rated voltage/breaking capacity (sym): AC100-100/200-200V shared/1.5kA (200V:1kA) ●Operating time: Within 0.1 seconds ●Overcurrent trip method: Thermal type ●Operating range temperature: -10 to 50℃
Manufacturer: Panasonic
Part number: BJS1532N
Item weight: 80 g
Product size: 7 x 5.6 x 3.2 cm; 80 g
Style: 2P2E with O.C 15A 30mA
Voltage: 200 volts
Included Product: Instruction manual
Batteries used: No
Product dimensions (Length x Width x Height): 7 x 5.6 x 3.2 cm
