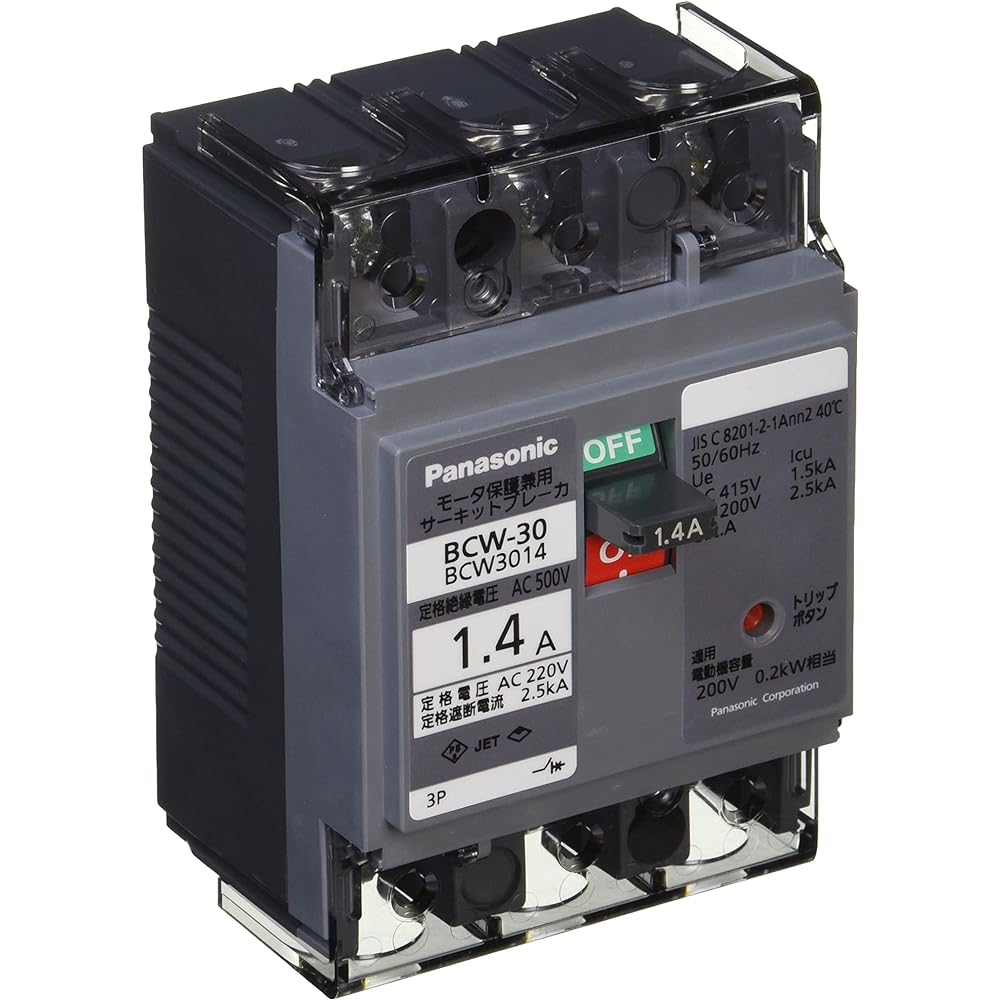

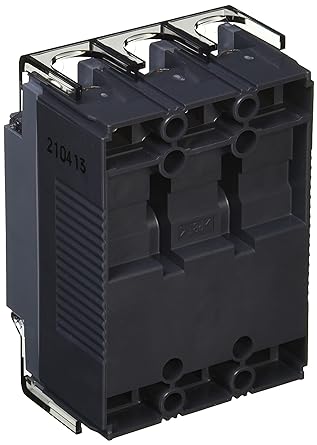

Panasonic Circuit Breaker BCW-30 Type 3P3E 1.4A Motor Protection BCW3014

Release date: June 21, 2004 Model name: BCW-30 Rated current: 1.4A Rated voltage/breaking capacity: AC100V 2.5kA, AC200V 2.5kA, AC415V 1.5kA Number of poles: 3P3E
< br> Type: Circuit breaker (also used for motor protection) Model name: BCW-30 Frame: 30AF Number of poles: 3P3E Rated current: 1.4A Motor capacity: AC200V 0.2kW Rated voltage/breaking capacity: AC100V 2.5kA, AC200V 2.5kA, AC415V 1.5kA Tripping method: Electromagnetic External dimensions (mm): H96 (106 including terminal cover) x W70 x D52 (67.6 including handle) Mass: 0.4kg Specifications: With terminal cover


Manufacturer: ‎Panasonic
Part number: ‎BCW3014
Item weight: ‎400 g
Product size: ‎5.2 x 7 x 9.6 cm; 400 g
Discontinued by the manufacturer : ‎No
Style: ‎30 type 3P3E 1.4A
Voltage: ‎200 Volts
Accessories: ‎None
Battery included: ‎No
Battery usage: ‎No
Product Dimensions (Length x Width x Height): 5.2 x 7 x 9.6 cm
