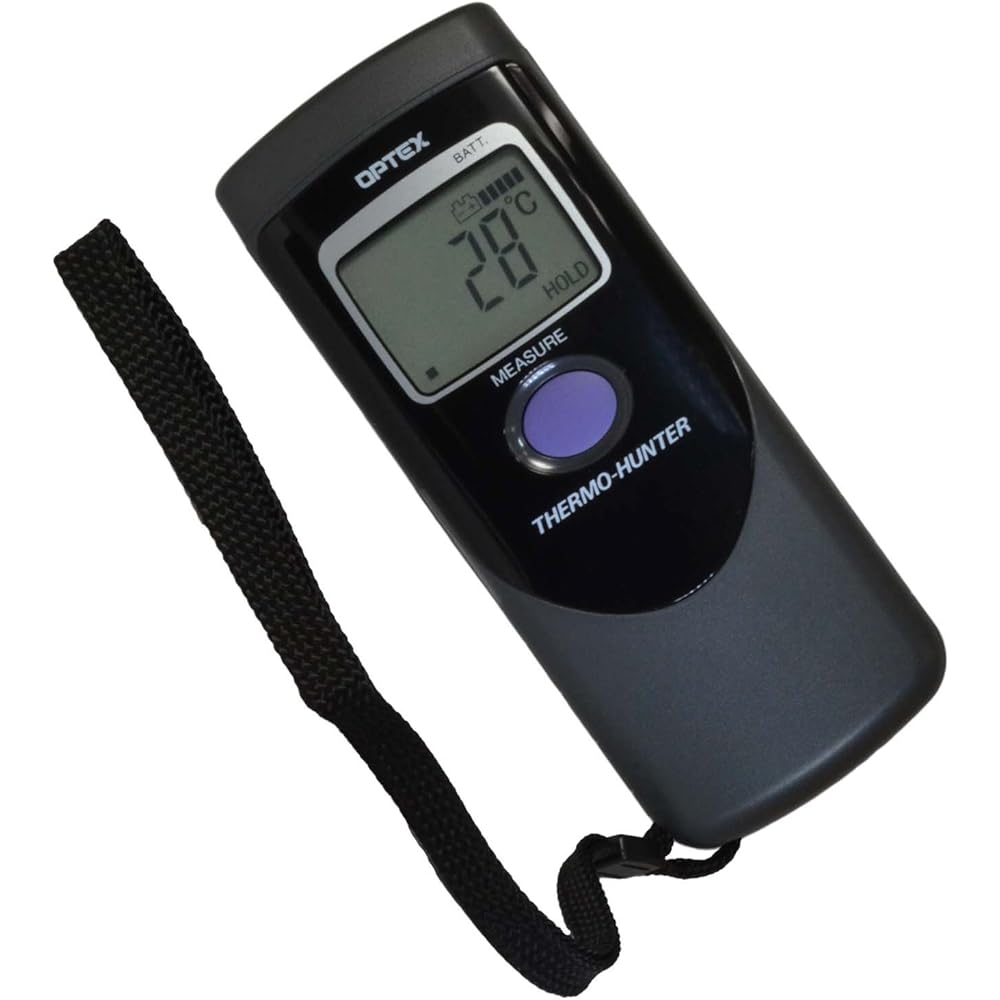

Optex non-contact thermometer PT2LD

●Measurement temperature range (℃): -40~510●Minimum temperature display (℃): 1●Mass (g): 180 ●Power source: 2 AA batteries (included)●Width x depth x height :56×37×140mm●Emissivity: 0.95, 0.70●Distance to measurement range ratio (D to S): 10 to 1 (at measurement distance of 1m)●Measurement accuracy: ~0℃ (±3℃), 0~ 200℃ (±2℃), 201℃~(±1%)●Measurement field of view range: φ100mm/1000mm●Measurement distance: φ30/200mm, φ58/500mm, φ82/800mm

[Features] Wide range type -40 to 510℃ Large LCD and backlight function Aiming function Simple operation with one button with laser marker [Specifications] Measurement temperature range: -40 to +510℃ (display; -51 to +538℃ ) Measurement field of view range: □100mm/1000mm (see measurement field of view diagram) Optical system: Mirror type/silicon filter Detection element/wavelength: Thermopile/8 to 14μm Response time: 800ms/90% response Measurement accuracy (ε≒0.95): ～0℃; ±3℃, 0～+200℃; ±2℃, +201℃～; ±1% of reading value Repeatability: ±1.0℃ Emissivity (ε) correction: 0.95/0.70 switching (DIP switch selection) ) Display resolution: 1℃ Voltage power source: AA alkaline batteries x 2 Battery life: Approximately 30 hours (when using alkaline batteries) Aim: Laser marker (class 2 IEC/JIS/FDA) Function: Backlight Auto power OFF function Surrounding use Temperature: 0~+50℃ Operating ambient humidity: 35~85%Rh (no condensation) Storage temperature: -10~+60℃ EMC: EMC Directive (2014/30/EU) Environment: RoHS Directive (2011/65/ EU), China RoHS (Ordinance No. 32) Safety: FDA regulations (21 CFR 1040.10 and 1040.11) (excluding differences due to Laser Notice No. 50) Size: 56X37X140mm Weight: Approx. 180g (including battery)


Brand: ‎Optex
Product model number: ‎PT2LD
Package size: ‎20.6 x 8.2 x 5.8 cm; 120 g
Power source: ‎Battery powered
Laser class: ‎Large display, Non-contact
Accessories: None
Batteries included: No
Product weight: 120 g
