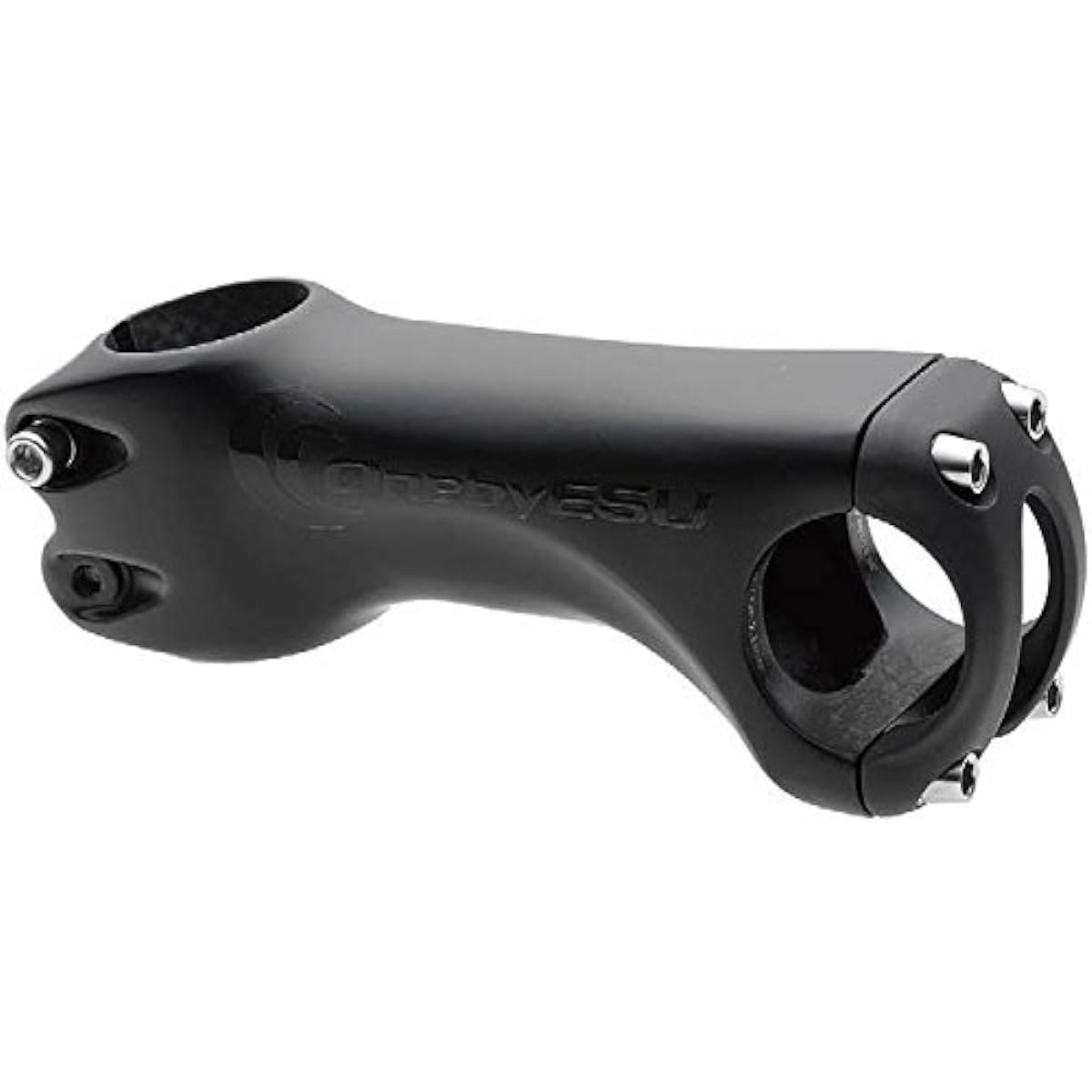

OnebyESU Carbon Susie Stem 84°/120 84°/120

●Body: Full carbon monocoque ●Clamp: 6061-T6-alloy ●Body: Matte UD ●Column height: 42mm ● 1-1/8" ●Clamp diameter: 31.8mm ●Offset: 9.1mm ● 116g (100mm) ●Bolt: Introducing a carbon monocoque stem that inherits the stainless steel Susie design. Considering the 42mm column height of carbon, which requires volume, the offset is designed to be large at 9.1mm. In particular, the long head tube, which is the fate of carbon frames, has a high handlebar. Regarding the position, the minimum protrusion of 100mm has a body angle of 79° that allows for lower settings, and the orthodox 84° for 110mm and 120mm.The stem uses carbon material to reduce vibrations to the body. The ring is a part that is directly transmitted from the fork column, so it is easy to feel and invites a more comfortable ride.The aluminum front cap uses the TENON SYSTEM, a new technology that reduces the incompatibility between the carbon body and metal bolts. (Tenon System)" is adopted.


Color: ‎Matte UD
Size: ‎84゜/120
Material: ‎Stainless steel, 6061-T6-alloy, carbon monocoque
Packing size: ‎22.9 x 11.3 x 5.6 cm; 150 g
