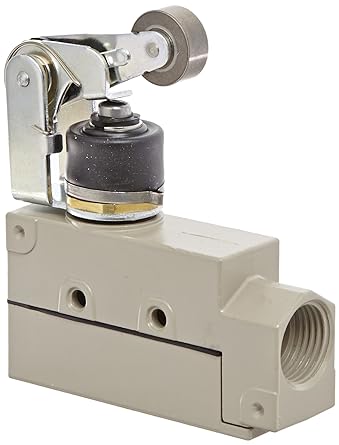

Series: ZE/ZV/ZV2/XE/XV/XV2 Features: General-purpose enclosed switch Actuator type: General type Protection structure: IP65 Rated frequency: 50/60Hz/Insulation resistance: 100MΩ or more (at 500V DC megger) Contact Resistance: 15mΩ or less (initial value) ・Terminal temperature rise: 50deg or less Ambient operating temperature: −10~+80℃ (no freezing) ・Mass: Approx.A general-purpose enclosed switch with large breaking capacity and high durability.

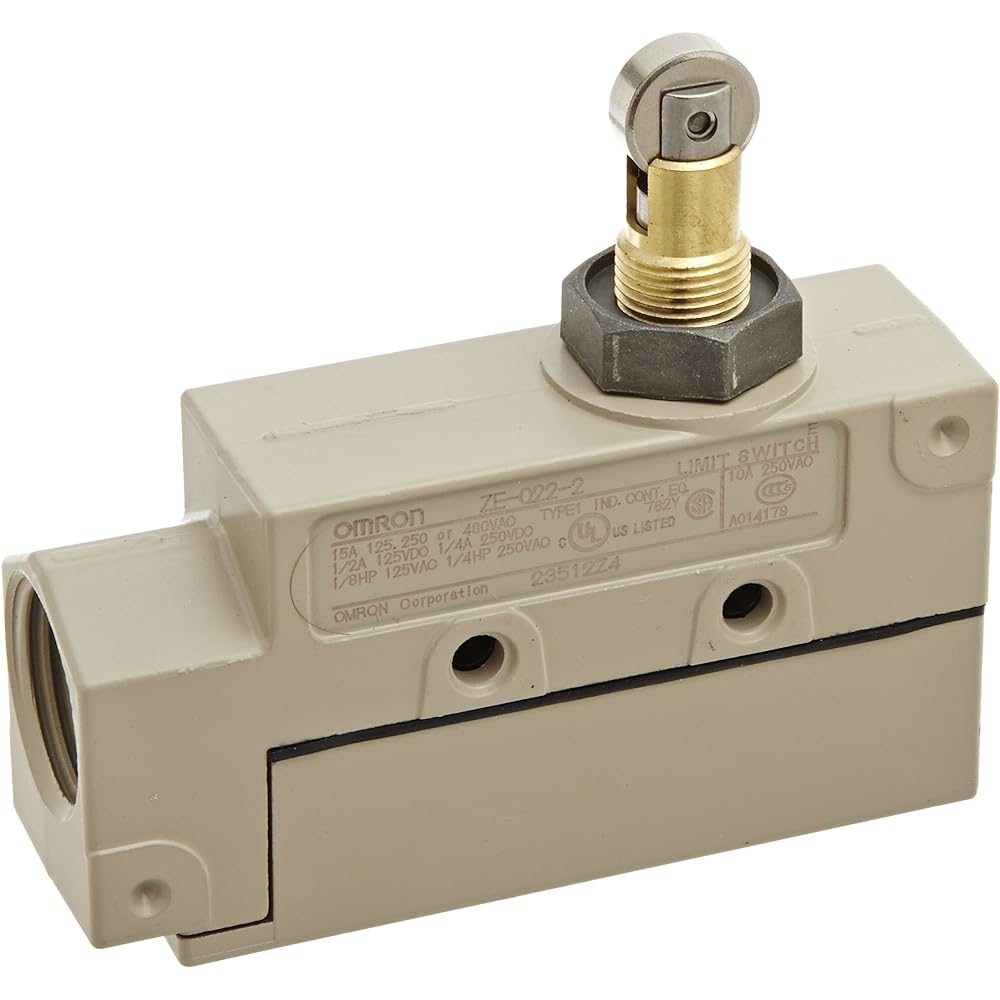

Manufacturer: OMRON Part number: ZE-Q22-2 Product weight: 0.28 g Product size: 10.16 x 7.62 x 5.08 cm; 0.28 g Style: General Pattern: ZE-Q22-2 Measurement System: Metric Chlorine removal rate: Ul, Cse, Ccc Features: Heat Retention Battery Use: No Product Dimensions (Length x Width x Height): 10.2 x 7.6 x 5.1 cm
