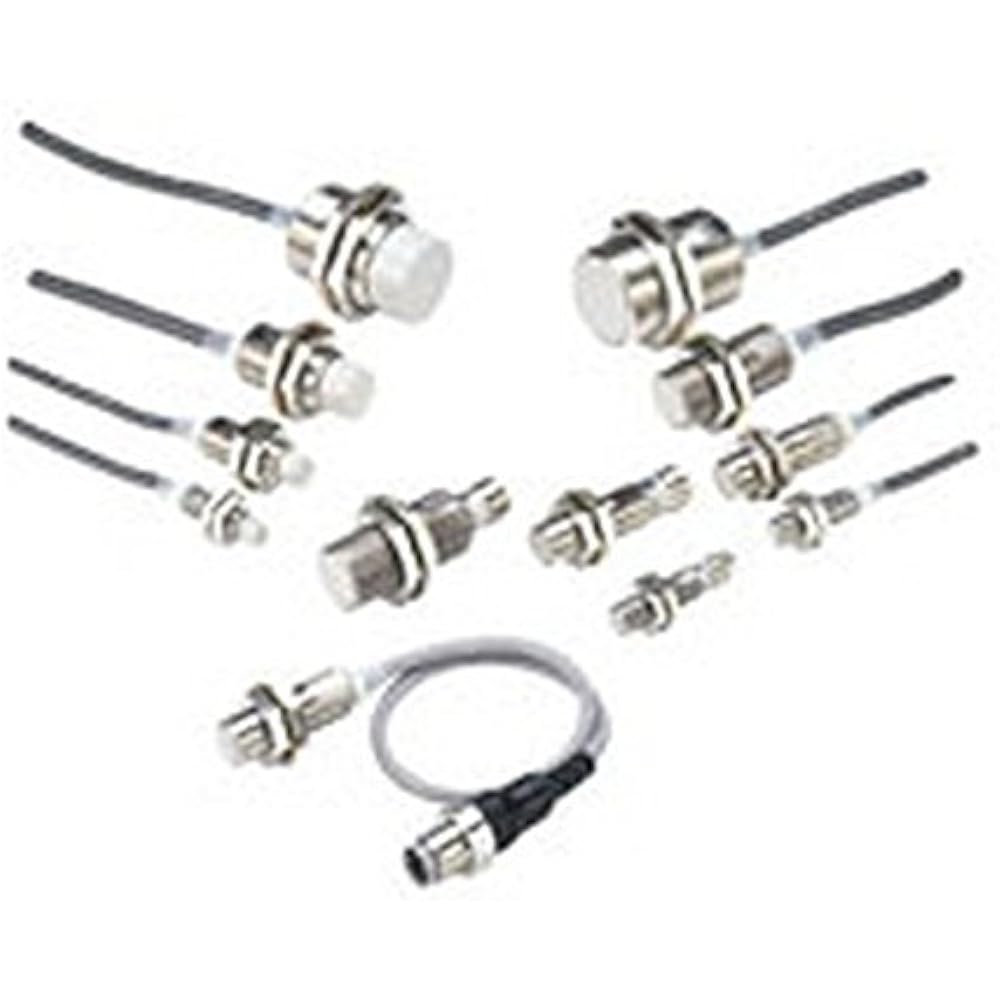

OMRON Standard Type Proximity Sensor E2E Type E2E-X2D1-N2M

Series: E2E Features: Standard type proximity sensor Shape: M8 Detection distance: 2mm Connection method: Cord extraction type (2m) Detection distance: 1.5mm ± 10% Setting distance: 0 to 1.6mm / Response frequency: 1.5kHz or more Power supply voltage ( Working voltage range): Standard type: DC12~24V ripple (p-p) 10% or less (DC10~30V) US type, when using the connector type as a UL certified product DC12~24V ripple (p-p) 10% or less (working voltage range also Same)・Standard detection object: Iron 8×8×1mm Leakage current: 0.8mA or less / Diagnosis output delay time: 0.3~1s Connection method: Cord extraction type (standard cord length 2m), connector type, connector relay type (standard cord length 300mm) Increase the number of displayed items

Standard for detecting the presence of magnetic metal Wide variation Select the most suitable model according to the conditions Different frequency types are available to prevent mutual interference Excellent environmental resistance The standard cord material is oil-resistant PVC and is resistant to cutting oil. Cord protector is standard to prevent disconnection. 2-wire oil-resistant PUR cord pull-out type is available. The head color is orange, so it is easy to distinguish. E2E Features 3. SmartClick connector relay type with quick connection is available. E2E Features 4 UL E2E has a wide range of recognition-certified products Features 5 Self-diagnosis function output type that notifies you of failures such as coil breakage and unstable detection conditions Contributes to preventive maintenance that prevents line stoppages. Wiring-saving, resource-saving, low power consumption that contributes to eco-friendliness Reduces wiring man-hours and amount of copper wire used by 2/3 compared to 3-wire type. Current consumption is drastically reduced to less than 10%. (Comparing DC 2-wire type with DC 3-wire type) 3-wire type Wide range of ambient temperatures -40 to +85°C (M8 to M30 type) Applicable to low-temperature and high-temperature applications that are difficult with photoelectric sensors. A wide selection of bend-resistant cord types (M8 to M30 types) reduces the risk of wire breakage in applications with moving parts. Standard for detecting the presence or absence of magnetic metals in general environments.


Manufacturer: OMRON
Part number: E2E-X2D1-N2M
Product weight: 70 g
Package size: 11.7 x 10.8 x 2 cm; 70 g
Style: ‎Detection distance: 2mm
Pattern: ‎E2E-X2D1-N2M
Battery usage: ‎No
