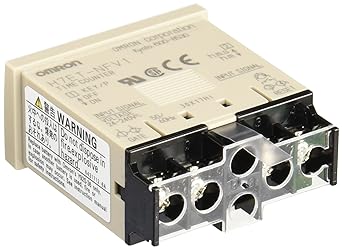

OMRON Small Total Counter Time Counter Tachometer DIN48×24 H7E□-N Type H7ET-N1

Series: H7E□-N Features: Compact total counter/time counter/tachometer (DIN48×24) Mounting method: Recessed mounting Operation method: Addition Display method: LCD (numerical display by liquid crystal) (character height 8.6 mm) (displayed with zero suppression ) Reset: External reset/manual reset (minimum reset signal time 20ms) Protection structure: IEC standard IP66, U.S. NEMA standard type 4 (indoor) However, only on the panel surface Static electricity resistance: ±8kV (malfunction) Vibration durability: 10~55Hz Single amplitude 0.375mm 2 hours each in 3 directions / Vibration malfunction: 10~55Hz Single amplitude 0.15mm 10 minutes each in 3 directions Shock resistance: 300m/s 3 times each in 26 directions Shock malfunction: 200m/s 3 times each in 26 directions External power supply: Not required (battery built-in) Increase number of items to display

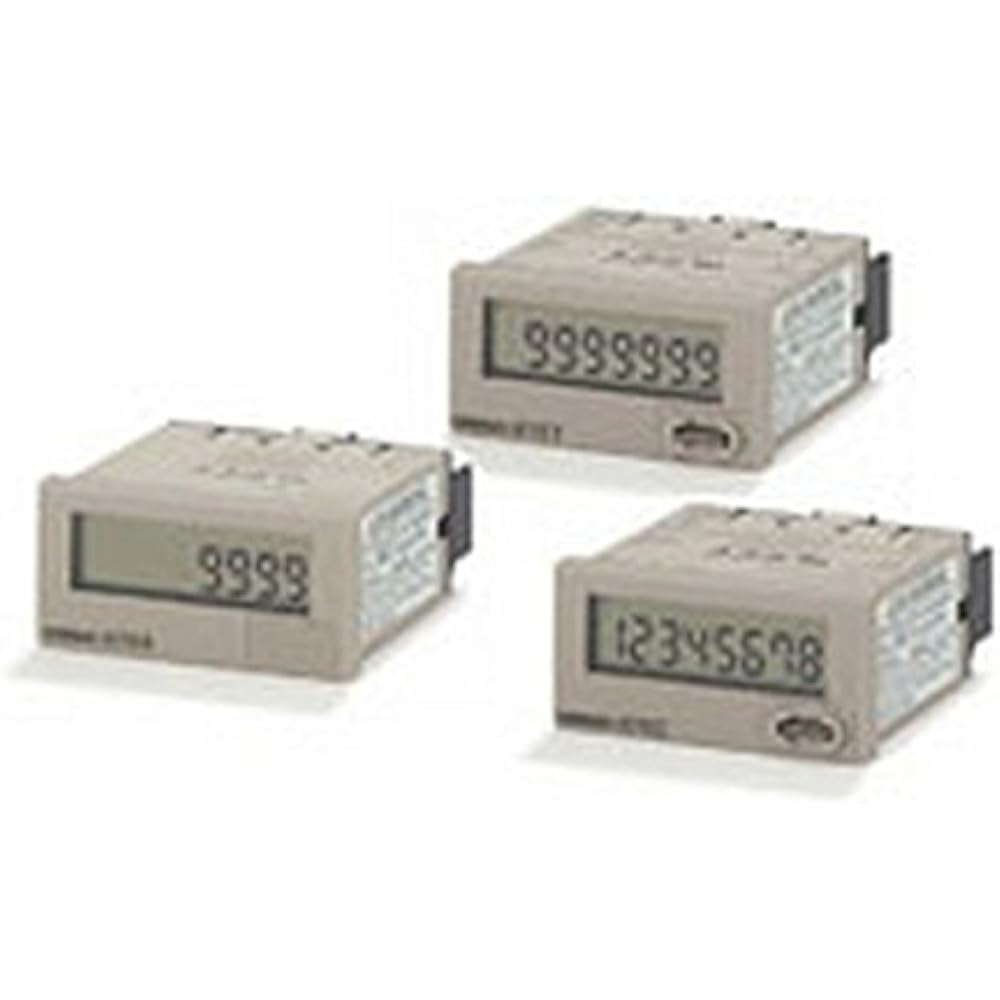

Achieved a large display with a height of 8.6 mm The counter can count up to 8 digits A series of backlit types with emphasis on visibility * Prevents erroneous operation of the reset key by adopting a key protection switch * Case color is the conventional light gray In addition, a black type is now available in the series *Front section is NEMA4 compatible *The main body can be reused by replacing the battery *Finger protection structure is adopted that complies with VDE0106 Part 100 *Compliant with safety standards UL, CSA, and CE marking EN61010-1 Pollution degree 2 / Overvoltage Category III Compliant * Compliant with EMC standards (EN61326-1), allowing use in commercial and light industrial environments in addition to industrial environments. Compact economy counter with improved visibility and ease of use.


Manufacturer: ‎OMRON
Part number: ‎H7ET-N1
Product weight: ‎80 g
Package size: ‎7.2 x 6.4 x 6 cm; 80 g
Pattern: ‎H7ET-N1
Uses batteries: ‎No
