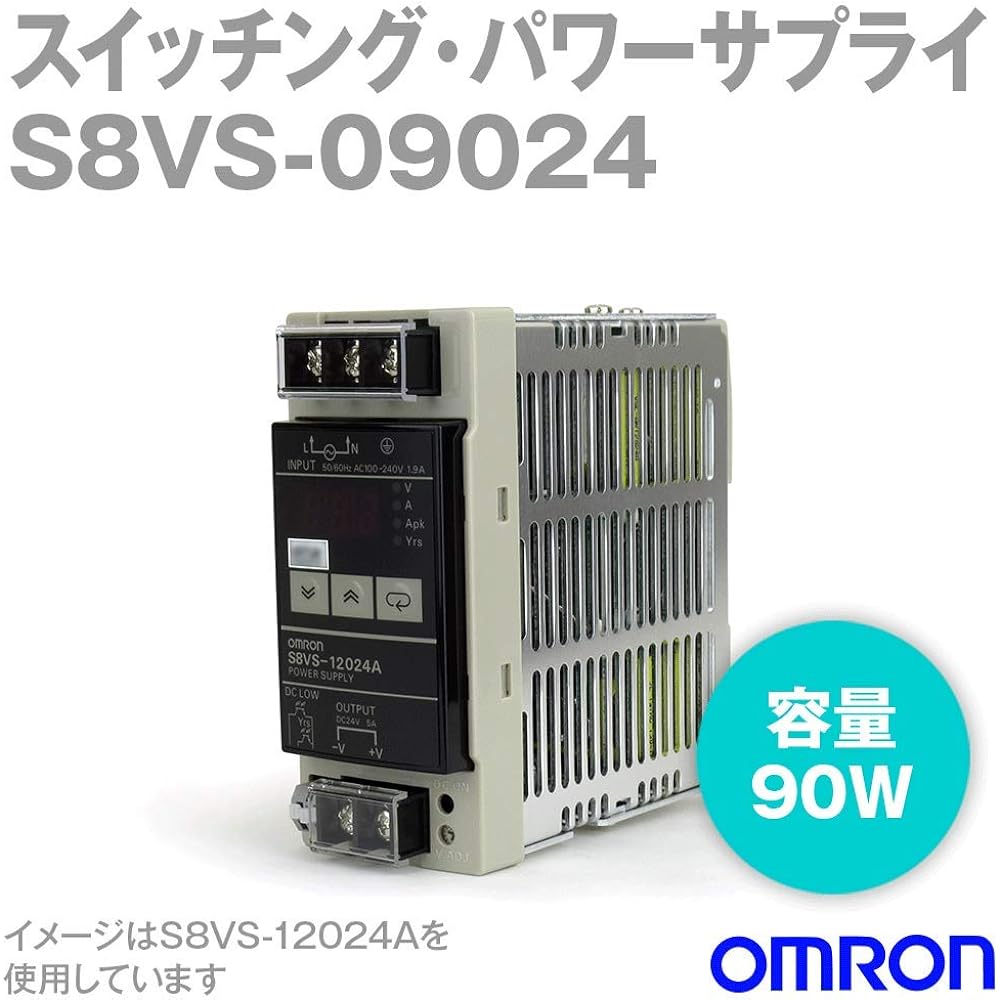

OMRON S8VS-09024 Switching Power Supply (Screw Terminal Block) (90W(24V・3.75A)) TV

[Manufacturer] OMRON [Capacity] 90W [Efficiency] 83% TYP. (at AC100V input) 84% TYP. (at AC200V input) [Rated input voltage] AC100-240V [Input voltage allowable fluctuation range] AC85-264V DC80-370V [Caution when inputting DC] The applicable range of EC directives and various safety standards (UL, EN, etc.) is AC100-240V (AC85-264V). [Frequency] 50/60 Hz (47-450Hz single phase) [Input current] 1.9A TYP. (at AC100V input) 1.0A TYP. (at AC200V input) [Harmonic current] EN61000-3-2 [Leak current] 0.5mA or less (at AC100V input) 1.0mA or less (at AC200V input) [Inrush current] 14A TYP. (at AC100V input (at 25℃ cold start)) 28A TYP. (at AC200V input (at 25℃ cold start) )) [Output voltage] DC24V [Voltage variable range] -10 to +15% (at V.ADJ) (When operating the V.ADJ volume, the voltage will rise to more than +15% of the voltage variable range. Output voltage When changing the voltage, check the output voltage of the power supply and be careful not to damage the load.) [Ripple noise voltage] 2% (p-p) or less (at rated input/output) 250mV or less (at rated input/output) [Output characteristics (static input fluctuation)] 0.5% or less (input AC85-264V, 100% load) [Output characteristics (static load fluctuation)] 1.5% or less (rated input, 0-100% load) [Output characteristics (ambient temperature fluctuation)] 0.05%/°C or less [Output current] 3.75A [Start-up time] 460ms TYP. (at AC100 input) 300ms TYP. (at AC200 input) [Output holding time] 28ms TYP. (at AC100 input) (at input) 132ms TYP. (at AC200 input) [Overcurrent protection] 105% to 160% of rated output current Reverse L droop/intermittent operation type, automatic recovery [Overvoltage protection] Operates at 115% to 150% of rated output voltage. Shut-off type Recovery method: Re-input recovery (OFF time: 3 min or more) [Overheat protection] None [Replacement time notification output] None [Accumulated operating time output] None [Undervoltage detection output] None [Power fail detection output] None [ Parallel operation] Not possible (but backup operation is possible, external diode required) [Series operation] Possible (up to 2 units can be connected, external diode required) [Remote sensing] None [Applicable standard (UL)] Standard number: UL Listed: UL508 (Listing) / UL UR: UL60950-1 (Recognition) [Applicable standard (CSA)] Standard number: cUL: CSA C22.2 No.107.1 / cUR: CSA C22.2 No.60950-1 [Applicable standard (EN )] EN50178 / EN60950-1 [Applicable standards (EC Directive (EMC Directive))] EMI: EN61204-3 Class B Radiated disturbance electric field strength: EN55011 Group 1 Class B compliant Noise terminal voltage: EN55011 Group 1 Class B compliant, FCC class Compliant with A Harmonic current: EN61000-3-2 EMS: EN61204-3 High severity levels [Applicable standard (VDE)] VDE0160 / VDE0805 Teil 1 [Applicable standard (SEMI)] F47-0200 (at AC200V input) [Ambient temperature range ] During use: -10 to 60℃ (see derating curve) During storage: -25 to 65℃ (no freezing or condensation) [Ambient humidity range] During use: 25 to 85% RH During storage: 25? 90% RH (No icing or condensation) [Withstand voltage] Between (all inputs) and (all outputs/alarm outputs): AC 3kV 1min (detection current 20mA)


Battery usage: ‎No
Brand name: ‎OMRON
Package size: ‎17.8 x 15.5 x 8.2 cm; 560 g
