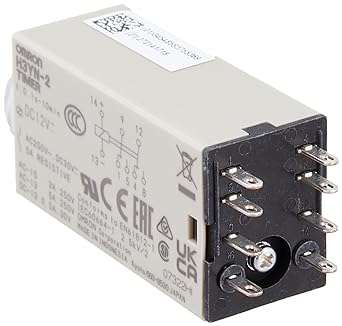

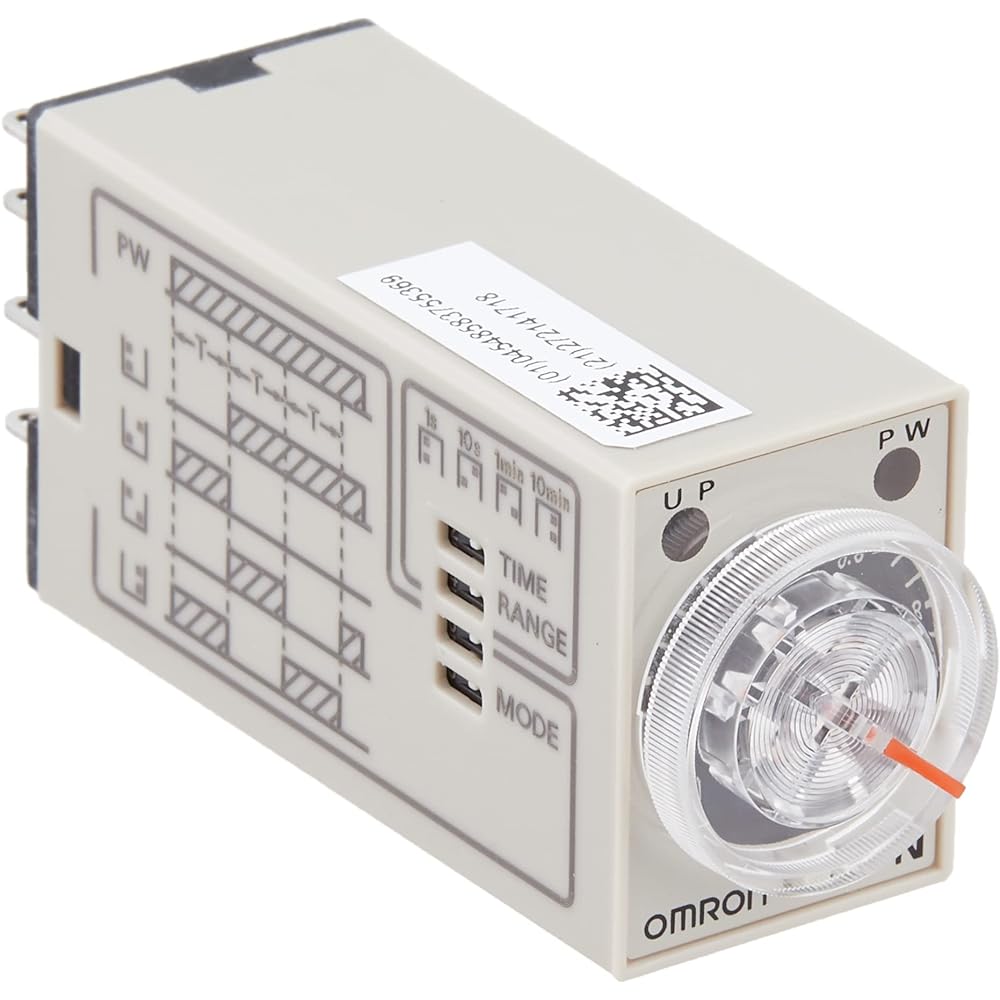

OMRON Solid State Timer H3YN Type H3YN-2

Series: H3YN Features: Solid-state timer Power supply voltage: DC12V Short-time type: 0.1s to 10min Long-term type: 0.1min to 10h Time specifications: Short-time type 0.1s to 10min (4 ranges: 1s, 10s, 1min, 10min) ) Operation mode: On-delay, interval, flicker-off start, flicker-on start, four modes can be selected with a dip switch. Allowable voltage fluctuation range: 85 to 110% of power supply voltage (however, 90 to 110% of power supply voltage only for DC12V specifications) ) Power consumption: Approximately 0.1W when the relay is OFF: Approximately 1.1W when the relay is ON (at DC12V) / Release voltage: 10% or less of the power supply voltage Effect of voltage: ±2% or less (at maximum scale time) Insulation resistance: 100MΩ or more (measured with DC500V megger) Protection structure: IP40 Increase the number of items displayed

Achieves multiple ranges and operating modes. Also realizes semi-multiple power supply voltages. Pin compatibility with MY power relays. Compact size that contributes to space savings. Obtains UL and CSA standards. Conforms to EN 61812-1 and has the same shape as the CE mark H3Y, with multiple time ranges and multiple operating modes. Moreover, it complies with EN standards.


Manufacturer: OMRON
Part number: H3YN-2 DC12
Product weight: 20 g
Package size: 8.38 x 6.1 x 2.79 cm ; 20 g
Pattern: ‎H3YN-2 DC12
Accessories: ‎None
Battery usage: ‎No
