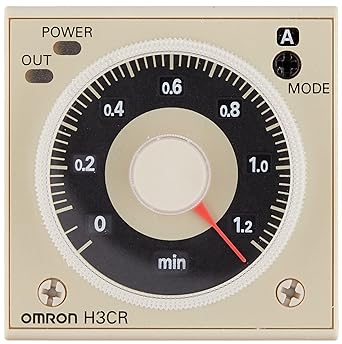

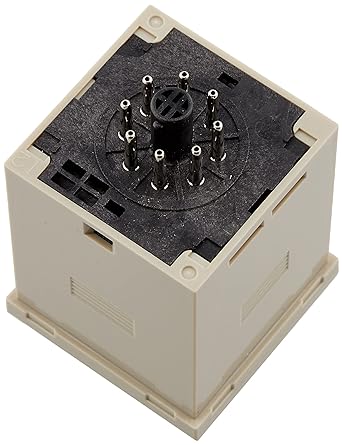

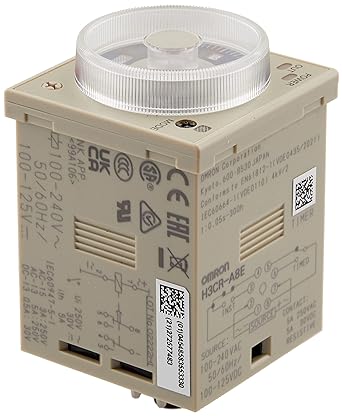

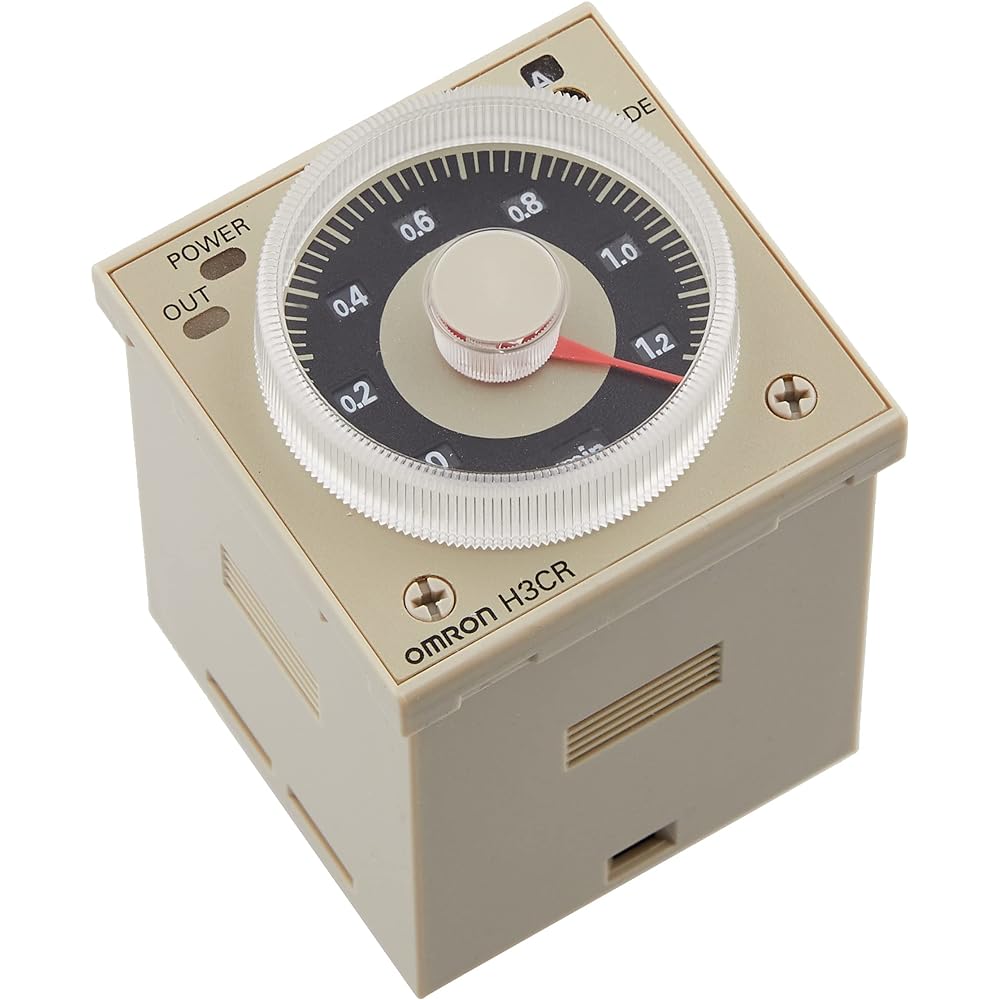

OMRON Solid State Timer H3CR-A Type H3CR-A8E

Series: H3CR-A Features: Solid-state timer Type: 5-operation multi-pin type: 8 pins Output method: Contact output (relay 2c (time-limited + instantaneous)) Power supply voltage: AC100-240V 50/60Hz/DC100-125V/AC/ DC24 to 48V Allowable voltage fluctuation range: 85 to 110% of power supply voltage (90 to 110% for DC12V) Power reset: Minimum power open time 0.1s Protection structure: IP40 (panel surface) Release voltage: 10% of power supply voltage %below Operating temperature range: -10~+55℃ (no freezing) Operating time variation: ±1% or less (at maximum scale time) Voltage influence: ±2% or less (at maximum scale time) Display Increase number of items

Two types of AC/DC free power supplies have significantly reduced the number of models in stock. 8 operation mode multi (11 pin type) and 5 operation mode multi (8 pin type) allow for a variety of applications. Ecological design to reduce current consumption. 0 settings. Instantaneous output makes it easy to check sequences. Attaching a socket (P3G-08) shortens the body to just 75mm below the neck (H3CR-A8E AC100 to 240 VPNP input types also available UL, CSA, NK, LR, CCC certification, EN61812- 1 compliance, CE mark compatible time range, multi-operation mode. Full multi-timer with DIN48 x 48 mm.


Manufacturer: ‎OMRON
Part number: ‎H3CR-A8E< br>Item weight: 100 g
Package size: 12.2 x 6.8 x 6.4 cm; 100 g
Style: ‎Series: H3CR-A
Pattern: ‎H3CR-A8E
Uses batteries : ‎No
